Heavy-Duty Spectra IV SE Series
Product Features
• Tough, Heavy-Duty Construction
• Improved Bubble Design
– 0.090-Inch Injection Molded Polycarbonate
– Increased Optical Clarity
– 3.5X Stronger Than Previous Heavy-Duty Bubbles
– Available in Clear and Smoked Bubble
• Trim Rings Are Constructed of Thick Aluminum
• Protective Cage for Lower Dome (Optional)
• Built-in Back Box Memory
• 2 Auxiliary Outputs
• 7 Alarm Inputs
• Integrated Passive UTP Circuit
• Compatible with 27X and 35X Spectra ®IV SE Dome Drives

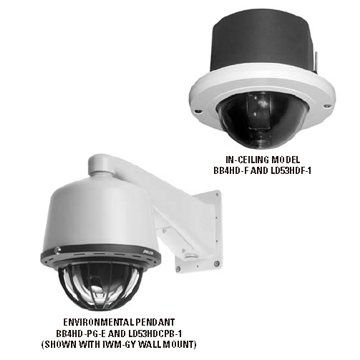

• In-Ceiling and Pendant Models Available
• Indoor/Outdoor Applications
• Pendant Models Meet NEMA Type 4X and IP66 Standards
• Ability to Add IP Network Capability by Purchasing Optional TXB-IP
GENERAL
Construction
Back Box Aluminum
Lower Dome Clear or smoked polycarbonate, 0.09-inch thick
Cage Thickness 0.12 x 0.30 cast stainless steel
Cage Color Black, for maximum discreetness
Cable Entry (Back Box)
In-ceiling 0.75-inch conduit fitting
Pendant Through 1.5-inch NPT pendant mount
Weight (approximate)
Back Box Unit Shipping
In-ceiling 2.17 lb (0.98 kg) 6 lb (2.72 kg)
Pendant 4.45 lb (2.02 kg) 6 lb (2.72 kg)
Environmental Pendant 4.75 lb (2.15 kg) 5 lb (2.27 kg)
Lower Dome
In-ceiling 1.6 lb (0.73 kg) 3 lb (1.36 kg)
In-ceiling w/cage 3.6 lb (1.63 kg) 5 lb (2.27 kg)
Pendant 1.83 lb (0.83 kg) 3 lb (1.36 kg)
Pendant w/cage 3.83 lb (1.74 kg) 4 lb (1.81 kg)
Environment
In-ceiling Indoor only
Pendant Indoor/outdoor
Environmental Pendant Indoor/outdoor
Dimensions
Pendant 9.7" W x 10.1" H (24.64 cm x 25.65 cm)
In-ceiling 9.75" W x 8.5" H (24.77 cm x 21.59 cm)
Operating Temperature
In-ceiling 32° to 122°F (0° to 50°C)
Pendant 32° to 140°F (0° to 60°C) absolute maximum
operating temperature; 32° to 122°F (0° to
50°C) sustained maximum operating
temperature
Environmental Pendant (Assumes no wind chill factor; for detailed
test conditions, contact Pelco)
Maximum 140°F (60°C) absolute maximum; 122°F
(50°C) sustained maximum
Minimum –60°F (–51°C) absolute minimum; minimal
icing at sustained minimum of –50°F (–45°C);
prevents icing at sustained minimum of
–40°F (–40°C); de-ices 0.1 inch (2.5 mm)
within 3 hours after power-up
ELECTRICAL
Input Voltage 18 to 32 VAC; 24 VAC nominal
22 to 27 VDC; 24 VDC nominal
Input Power
24 VAC 23 VA nominal (indoor, without heater)
73 VA nominal (outdoor, with heater)
24 VDC 0.7 A nominal (indoor, without heater)
3 A nominal (outdoor, with heater)
Fuse 1.25 A
Auxiliary Outputs 2
Alarm Inputs 7
Module
BACK BOX AND LOWER DOME
SYSTEM MODEL NUMBERS
SD427-HF1
SD435-HF1
SD427-HCF1
SD435-HCF1
SD427-HP1
SD435-HP1
SD427-HCP1
SD435-HCP1
SD427-HPE1
SD435-HPE1
SD427-HCPE1
SD435-HCPE1
COMPONENT MODEL NUMBERS
BB4HD-F In-ceiling, gray
BB4HD-PG Pendant, gray
BB4HD-PG-E Environmental pendant, gray
LD53HDF-1 Clear, in-ceiling
LD53HDCF-1 Clear, in-ceiling with cage
LD53HDPB-1 Clear, pendant
LD53HDCPB-1 Clear, pendant with cage
DD427 Day/night (NTSC) camera (27X)
DD4CBW35 Day/night (NTSC) camera (35X)
DD5-FM Removable, fixed mount bracket only(camera and lens not included)
*Also available with smoked bubble. To order, replace the number 1 with a 0 (zero) in the model number (for example: SD435-HF0or LD53HDF-0).
For PAL and CCIR models add “-X” suffix to part number (for example: SD427-HF1-
Xor SD435-HCF1-X).DD5-FM is ideal for use with Pelco’s C10DN-6, C10DN-6X, C10CH-6, C10CH-6X, CCC1390H-6, and CCC1390H-6X cameras with selected Pelco lenses.
