AXIS Q3538-LVE 02225-001 Dome Camera

Brand:AXIS

Model:AXIS Q3538-LVE

Lens:6.2-12.9mm

Detail

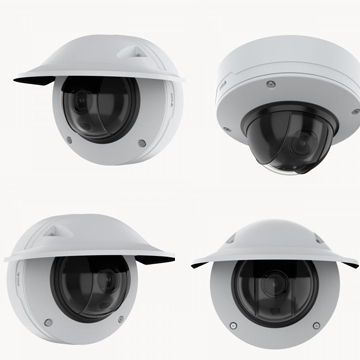

AXIS Q3538-LVE Dome Camera
Advanced dome with deep learning and 4K
Outstanding image quality in superior 4K
Support for analytics with deep learning
AXIS Object Analytics included
IR-shielded dome to prevent reflections
Built-in cybersecurity features
Based on the latest Axis system-on-chip (SoC), AXIS Q3538-LVE offers support for advanced analytics based on deep learning on the edge. This robust camera can withstand the harshest weather conditions and the most powerful impacts.

Outstanding image quality
AXIS Q3538-LVE offers outstanding image quality and forensic details in superior 4K resolution—even in the harshest weather and environments. Featuring OptimizedIR and an innovative IR-shielded dome, it prevents IR reflections from rain, and snow ensuring consistently clear, sharp images. With Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And electronic image stabilization keeps the picture steady when the camera is subject to vibrations. Furthermore, Zipstream and support for H.264/H.265 reduces bandwidth and storage requirements, while preserving high image quality.
Powerful analytics capabilities
This high-performance camera is based on ARTPEC-8, the latest Axis system-on-chip (SoC) . Featuring a deep learning processing unit (DLPU), it eliminates the need for expensive servers and allows for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Robust and secure—inside and out
This robust, IK10+-rated outdoor-ready camera is protected against redirection, defocusing, and impacts. It can withstand temperatures as low as -50 °C and as high as 60 °C (-58 ºF to 140 ºF). Including sensors for intrusion and shock detection it’s also packed with built-in cybersecurity features such as Axis Edge Vault to prevent unauthorized access and safeguard your system. This top-of-the-line camera offers easy installation, maintenance, and operation as well as flexible cable management. It includes a built-in gyro sensor enabling leveling assistant and auto rotation. Furthermore, if there's a power outage, redundant power helps ensure a reliable power supply to safeguard the system.
Technical specifications
Camera
Image sensor CMOS
Image sensor size 1/1.2
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.07 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Max video resolution 3840x2160
Max frames per second 50/60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Focal length 6.2 - 12.9 mm
Horizontal field of view 103 - 48 °
Vertical field of view 56.4 - 27.4 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support Yes
Built-in microphone –
Network
PoE Class 4
Wireless –
Security
Signed firmware Yes
Secure boot Yes
General
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -50 to 60 °C
Outdoor Ready Yes
Vandal rating IK10+
IP rating IP66, IP67, IP6K9K
Designed for repaint Yes
Sustainability PVC free
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.Included
AXIS Object Analytics
AI-based object detection and classification
AXIS Video Motion Detection
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q3538-LVE AR, AU, BR, CN, EU, JP, UK, US 02225-001
