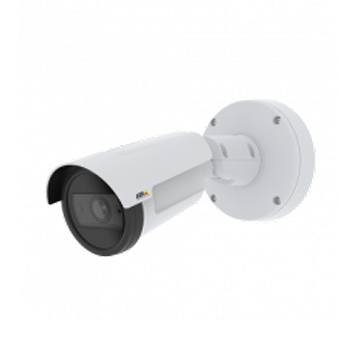

AXIS Q1765-LE Network Camera

Brand:AXIS

Model:AXIS Q1765-LE

Lens:Lens 4.7–84.6mm

Detail
AXIS Q1765-LE Network Camera AXIS Q1785-LE
Outdoor-ready, bullet camera with integrated IR and 18x zoom
AXIS Q1765-LE is a slim, outdoor-ready, bullet camera with 18x optical zoom and auto-focus, providing both wide
overviews and detailed images for identification purposes at long distances. It delivers HDTV 1080p video in multiple,
individually configurable H.264 and Motion JPEG video streams. The built-in IR illumination is provided by four highly
power-efficient, auto-adjusting LEDs. AXIS Q1765-LE supports wide dynamic range (WDR) an Axis’ unique Corridor
Format, allowing effective monitoring with higher resolution in vertical scenes. The compact, light-weight camera is
IP66-rated and features Axis’ Arctic Temperature Control for powering up at very low temperatures following a power
failure.
> 18x optical zoom and autofocus
> Built-in IR illumination
> HDTV 1080p and H.264
> IP66- and NEMA 4X-rated for outdoor use
> Axis’ unique Corridor Format
Camera
Image sensor 1/2.9" progressive scan RGB CMOS
Lens 4.7–84.6mm, F1.6–2.8
Horizontal angle of view: 59°–4°
Autofocus, automatic day/night
Thread for 62 mm filters
Day and night Automatically removable infrared-cut filter in day mode and
infrared-pass filter 720 nm in night mode
Minimum
illumination
Color: 0.5 lux at 30 IRE F1.6
B/W: 0.04 lux at 30 IRE F1.6
0 lux with IR illumination on
Shutter time 1/28000 s to 2 s
Video compression
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
Motion JPEG
Resolution 1920x1080 HDTV 1080p to 160x90
Frame rate Up to 30/25 fps (60/50 Hz) in all resolutions
Video streaming Multiple, individually configurable streams in H.264 and
Motion JPEG
Controllable frame rate and bandwidth
VBR/CBR H.264
Image settings Manual shutter time, compression, color, brightness, sharpness,
white balance, exposure control, exposure zones, backlight
compensation, fine tuning of behavior at low light, rotation, text
and image overlay, 3D privacy mask, day/night shift level
Axis Corridor Format
WDR – dynamic contrast
Pan/Tilt/Zoom 18x optical zoom and 12x digital zoom, preset positions
Audio
Audio streaming Two-way
Audio encoding AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz
Configurable bit rate
Audio
input/output
Requires multi-connector cable (not included) for external
microphone input or line input and line output
Audio input 3.5 mm jack for mic/line in, max 200 mVpp for microphone, max
6.2 Vpp for line signal
Impedance: min 1 kΩ, mic-power activated; min 4 kΩ line
Tip: Signal/Bias
Ring: Bias
Sleeve: Ground
Power to external electret microphone:
1.3 – 2.6 V DC (3.0 V DC through 2130 Ω)
SNR: > 70 dB
Audio output 3.5 mm jack for line out, max 2.0 Vpp
SNR: > 70 dB
Tip: Signal/Bias
Ring: Bias
Sleeve: Ground
Output impedance: max 100 Ω, normal < 1Ω
Network
Security Password protection, IP address filtering, HTTPSa
encryption,
IEEE 802.1Xa
network access control, digest authentication, user
access log, centralized certificate management, signed firmware
Supported
protocols
IPv4/v6, HTTP, HTTPSa
, SSL/TLSa
, QoS Layer 3 DiffServ, FTP,
CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II),
DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP,
DHCP, ARP, SOCKS, SSH
System integration
Application
Programming
Interface
Open API for software integration, including VAPIX® and
AXIS Camera Application Platform; specifications at axis.com
AXIS Video Hosting System (AVHS) with One-Click Connection
ONVIF® Profile G and ONVIF® Profile S specification at onvif.org
Analytics Included
AXIS Video Motion Detection, active tampering alarm,
gatekeeper, audio detection
Supported
AXIS Perimeter Defender, AXIS Cross Line Detection
Support for AXIS Camera Application Platform enabling
installation of third-party applications, see axis.com/acap
Event triggers Analytics, edge storage events
External input
Event actions External output activation, video and audio recording to edge
storage
Pre- and post-alarm video buffering
File upload: FTP, SFTP, HTTP, HTTPS, network share and email
Notification: email, HTTP, HTTPS, TCP and SNMP trap
Data streaming Event data
Built-in
installation aids
Remote zoom, pixel counter, leveling assistant, autorotation
General
Casing IP66- and NEMA 4X-rated, impact-resistant aluminum enclosure
with integrated dehumidifying membrane
Color: White NCS S 1002-B
Memory 256 MB RAM, 128 MB Flash
Power Power over Ethernet (PoE) IEEE 802.3af, max 12.95 W
8-28 V DC max 15.2 W
20-24 V AC max 22.0 V A
Connectors Shielded RJ45 10BASE-T/100BASE-TX PoE
DC Power connector
Multi-connector (not included): 2 configurable alarm
inputs/outputs, Mic in, Line mono input, Line mono output
IR illumination Power-efficient, long-life 850 nm IR LED’s with adjustable angle
of illumination and intensity. Range of reach up to 15 m (50 ft)
in wide field of view and up to 40 m (130 ft) in full tele view
Storage Support for microSD/microSDHC/microSDXC card and encryption
Recording to network-attached storage (NAS)
For SD card and NAS recommendations see axis.com
Operating
conditions
-40 °C to 50 °C (-40 °F to 122 °F)
Humidity 10-100% RH (condensing)
Storage
conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)
Approvals EMC
EN 55022 Class B, RCM AS/NZS CISPR 22 Class B,
FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B,
KCC KN22 Class B, KN24
EN 50121-4, EN 55024
Environment
EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2
Safety
EN/IEC/UL 60950-22, IS 13252
Other
EN/IEC 62471 risk group 1
Dimensions 146 x 105 x 344 mm (5 3/4 x 4 1/8 x 13 9/16 in)
Weight 1.8 kg (4.0 lb) including the bracket
Included
accessories
Installation guide, Windows®
decoder 1-user license, connector
kit, Resistorx® L-key
AXIS Q1765 Foot Chassis, AXIS T94G01S Mounting Plate,
AXIS Sunshield B
AXIS Q1765-LE Front Kit
Optional
accessories
AXIS T8604 Media Converter Switch
AXIS T91A47 Pole Mount, AXIS T94P01B Corner Bracket
For more accessories.
