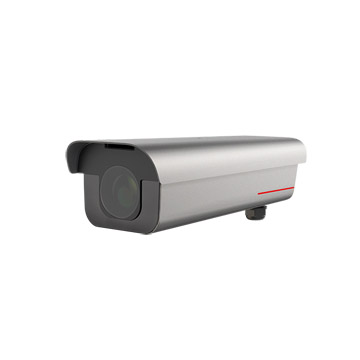

X2391-20-T HuaWei 9MP Low-Light ITS AI Bullet Camera
Supports 20 TOPS computing power.
Supports heat map, vehicle recognition, and traffic flow statistics
Supports backlight adaptation and overcast adaptation
1" CMOS sensor
Online loading and upgrade of algorithms
Super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
CPU Hi3559A V100
Computing power 20 TOPS
Memory DDR4 4.0 GB
Flash type SPI NAND Flash 512.0 MB
Max resolution 9-megapixel: 4096 (H) x 2160 (V)
Sensor size 1"
Min illumination Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0025 lux (F1.2, AGC ON, 1/30s shutter speed)
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map Supported
ePolice Passing vehicle snapshot ,Unsafe lane change,Road marking violation ,Bus lane violation ,Wrong-way driving ,Vehicle running-red-light ,Traffic light detector ,Traffic light recognition ,Speeding/Low-speed
Checkpoint Passing vehicle snapshot ,Wrong-way driving ,Speeding/Low-speed ,Hands-free device violation ,Seat belt violation (driver),Vehicle statistics
Vehicle License plate image enhancement
Traffic flow statistics Motor vehicle,Non-motorized vehicle,Pedestrian
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 2
Ethernet port bandwidth Two RJ45 10M/100M/1000M adaptive Ethernet ports
Power type 100–240 V AC
Power consumption Maximum: 57.7 W; typical: 13.9 W
Operating temperature –40°C to +60°C
Operating humidity 5% to 95% (non-condensing)
IP rating IP66
IK rating IK10 (except for the viewing window)
Power type 100–240 V AC
Power consumption Maximum: 57.7 W; typical: 13.9 W
Operating temperature –40°C to +60°C
Operating humidity 5% to 95% (non-condensing)
Self-cleaning viewing window Supported
Self-cleaning viewing window specification TBD
Surge protection 4 kV
IP rating IP66
IK rating IK10 (except for the viewing window)
Net weight 6.36 kg
Gross weight 8.46 kg
Device dimensions 160 mm x 515.9 mm x 215 mm
Package dimensions 325 mm x 678 mm x 329 mm
