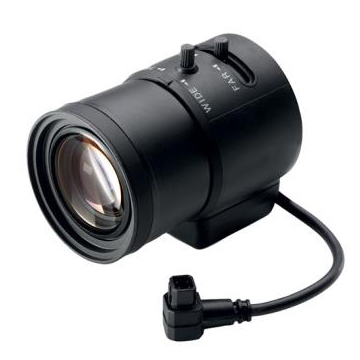

LVF-5003C-P2713 Varifocal lens, 2.7-13mm, 3MP, CS mount
Commercial Product No. LVF-5003C-P2713 | Product No. F.01U.381.550
High-quality optics
Reliable, robust construction
Focal length options
Key Specifications
Dimension (Ø x H) (mm) 47 x 75.11 mm
Iris control Manual
Lens focal length (mm) 2.70 – 3 mm
Operating relative humidity, non-condensing (%) 0 – 60 %
Operating temperature (°C) -10 – 50 °C
Sensor type 1/2.7 inch CMOS
Storage temperature (°C) -40 – 60 °C
LVF-5005C-S0940 Varifocal lens, 9-40mm, 5MP, CS mount
Product No. F.01U.274.352
Key Specifications
Dimension (Ø x H) (mm) 55 x 49.30 mm
Iris control Manual
Lens focal length (mm) 9 – 40 mm
Operating relative humidity, non-condensing (%) 0 – 93 %
Operating temperature (°C) -10 – 50 °C
Sensor type 1/2.5 inch progressive scan CMOS
Storage temperature (°C) -40 – 70 °C
LVF-5005C-S4109 Varifocal lens, 4.1-9mm, 5MP, CS mount
Commercial Product No. LVF-5005C-S4109 | Product No. F.01U.297.770
High-quality optics
Reliable, robust construction
Focal length options
Key Specifications
Dimension (Ø x H) (mm) 62.90 x 66.60 mm
Iris control Manual
Lens focal length (mm) 4.10 – 9 mm
Operating relative humidity, non-condensing (%) 0 – 93 %
Operating temperature (°C) -10 – 50 °C
Sensor type 1/1.8 inch CMOS
Storage temperature (°C) -40 – 70 °C
LVF-5005C-S1803 Varifocal lens, 1.8-3mm, 5MP, CS mount
Product No. F.01U.274.354
SR megapixel optical resolution
High-quality optics
Reliable, robust construction
Focal length options
Key Specifications
Dimension (Ø x H) (mm) 50 x 49.30 mm
Iris control Manual
Lens focal length (mm) 1.80 – 3 mm
Operating relative humidity, non-condensing (%) 0 – 93 %
Operating temperature (°C) -10 – 50 °C
Sensor type 1/2.5 inch progressive scan CMOS
Storage temperature (°C) -40 – 70 °C
LVF-5005N-S1250 Varifocal lens, 12-50mm, 5MP, C mount
Product No. F.01U.305.567
High-quality optics
Reliable, robust construction
Focal length options
Key Specifications
Dimension (Ø x H) (mm) 52.40 x 89.30 mm
Iris control Manual
Lens focal length (mm) 12 – 50 mm
Operating relative humidity, non-condensing (%) 35 – 90 %
Operating temperature (°C) -10 – 50 °C
Sensor type 1/1.8 inch CMOS
Storage temperature (°C) -20 – 60 °C
