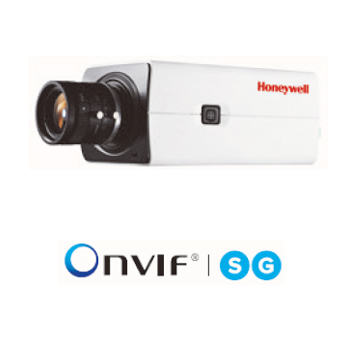

HVCB-2500S Honeywell 2MP Box Network Camera
Honeywell HVCB-2500S Box Network Camera, it combines with the world-class imaging
technology and cameras technology with innovative IP networking technology. Provide
users with 1080P high quality images
The HVCB-2500S HD Box Network Camera is the ideal solution for advanced
surveillance with its high-quality image quality.
The HVCB-2500S supports PoE Ethernet (IEEE802.3af), which can directly supply
power to the network camera through the network cable, helping users to save the
use of the power adapter and effectively reduce the installation cost. To increase the
installation flexibility of the HVCB-2500S, the network camera also supports DC12V
and AC24V power supply.
Honeywell HVCB-2500S support 1080P HD video, H.265 efficient compression, POE
Ethernet power supply and ONVIF network interface, it still can provide FHD real-time
video even in a limited bandwidth environment. Bullet appearance design makes it the
ideal choice all kinds of security, monitoring application, and widely used in all kinds of
indoor and outdoor venues, such as road, airports, schools, shopping malls, hotels, and
bank branches, enterprises and organs, retail stores, building corridor, etc.
FEATURES
• 1/2.7” Progressive Scan CMOS
• Support 1920 x 1080@25fps
• Support H.265/ H.264/ MJPEG
• Ture Day/ Night switch
• 120dB WDR
• Support 128GB on-board storage
• ONVIF
• 12VDC/ 24VAC/ PoE
SPECIFICATION
Model HVCB2500S
Image Sensor 1/2.7” Progressive Scan CMOS
Min. Illumination
Color: 0.005Lux@F1.2 (AGC ON)
B/W: 0.001Lux@F1.2 (AGC ON)
Shutter Speed 1/3 ~ 1/100,000s
Day/ Night IR Cut Filter
S/N Ratio 54dB
WDR 120dB
Lens Mount CS mount
Iris Auto Iris, DC drive
Audio & Video Codec
Video Compression H.265/ H.264/ MJPEG (Sub stream only)
Resolution
Main Stream: 50Hz: 1920 × 1080@25fps; 60Hz: 1920 × 1080@30fps
Sub Stream: 50Hz: 704 × 576@25fps; 60Hz: 704 × 480@30fps
Third Stream: 50Hz: 1920 × 1080@25fps; 60Hz: 1920 × 1080@30fps (refer to main stream setting)
H.265 Type Main Profile
H.264 Type High Profile/ Main Profile/ Baseline Profile
Video Bit Rate 32Kbps ~ 8Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps (G.711) /16Kbps (G.722.1) /16Kbps (G.726) /32~192Kbps (MP2L2)
Audio & Video Function
Image Enhancement BLC, 3D DNR
Image Settings Image rotation, saturation, brightness, contrast, sharpness, corridor mode
ROI Support 1 region for main stream
Video Analysis
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal
Detection, Unattended Baggage Detection
Environment Noise Filtering Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,

SNMP, IGMP, 802.1X, QoS, IPv6,UDP, Bonjour
ONVIF ONVIF (Profile S, G)
Web Browser IE8 or above
Simultaneous Live View 6 channels
Security Password protection, HTTPS encrypted data transmission, IEEE802.1x Authentication, IP address filter
Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login
Interface
Network 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 1 x Alarm in, 1 x Alarm out
Video Output 1 x BNC
Audio Output 1 x Audio input, 1 x Audio output, mono sound
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Communication
Interface
1x RS485, 1x RS232
Reset Button Yes
General
Operating Temperature 10° C ~ 50° C
Operating Humidity 95% (non-condensing)
Protection Level /
Power Supply 12 VDC/ 24 VAC/ PoE (802.3af, class 3)
Power Consumption Max. 6W
Dimensions 143.1 (L) × 68(W) × 56.3 (H) mm
Weight 445g
*Note: Honeywell reserves the right, without notification, to make changes in product design or specifications.
HVCB-2500S
2MP Box Network Camera, 1/2.7” Progressive Scan CMOS, H.265/
H.264/ MJPEG, TDN, 120dB WDR, 1920 × 1080@25fps, IVA, support
128GB on-board storage, ONVIF, 12VDC/ 24VAC/ PoE
