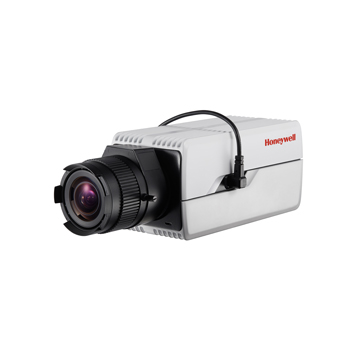

HVCB-4500S 4MP Box Network Camera
Honeywell HVCB-4500S Box Network Camera, it combines with the worldclass
imaging technology and cameras technology with innovative IP networking
technology. It provides users with 4MP high quality images. HVCB4500S HD
Box Network Camera is the ideal solution for advanced surveillance with its highquality
image quality.
The HVCB-4500S supports PoE Ethernet (IEEE802.3af), which can directly supply
power to the network camera through the network cable, that no power adapter
is needed , helping users to save the installation cost effectively. To enhance the
installation flexibility of the HVCB-4500S, the network camera also supports
DC12V and AC24V power supply.
Honeywell HVCB-4500S not only supports 4MP HD video, H.265 efficient
compression, POE Ethernet power supply and ONVIF network interface. It also
provides FHD real-time video even in a limited bandwidth environment. Bullet
appearance design makes it the ideal choice for all kinds of security, monitoring
application, and widely used in various indoor and outdoor venues, such as road,
airports, schools, shopping malls, hotels, and bank branches, enterprises and
organs, retail stores, building corridor, etc.
FEATURES
• 1/2.8" Progressive Scan CMOS
• Support 2560 x 1440@25fps
• Support H.265/ H.264/ MJPEG
• Support ABF
• True Day/ Night switch
• True WDR
• Support 128GB on-board storage
• Electronic defog
• Electronic stability
• ONVIF
• 12VDC/ 24VAC/ PoE
SPECIFICATION
Model HVCB-4500S
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.009Lux@F1.2 (AGC ON)
B/W: 0.0009Lux@F1.2 (AGC ON)
Shutter Speed 1/3 ～ 1/100,000s
Day/ Night IR Cut Filter
S/N Ratio 54dB
WDR 120dB
Lens Mount C/CS mount
Iris Auto Iris, DC drive
Focus Support ABF
Audio & Video Codec
Video Compression H.265/ H.264/ MJPEG (Sub stream only)
Resolution
Main Stream: 50Hz: 2560 × 1440@25fps; 60Hz: 2560 × 1440@30fps
Sub Stream: 50Hz: 704 × 576@25fps; 60Hz: 704 × 480@30fps
Third Stream: 50Hz: 1280 × 960@25fps; 60Hz: 1280 × 960@30fps
H.265 Type Main Profile
H.264 Type High Profile/ Main Profile/ Baseline Profile
Video Bit Rate 32Kbps ~ 16Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32~192Kbps (MP2L2)
Audio & Video Function
Image Enhancement BLC, 3D DNR, Defog, Electronic stability
Image Settings Image rotation, saturation, brightness, contrast, sharpness, corridor mode
ROI Support 4 region
Video Analysis
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object
Removal Detection, Unattended Baggage Detection
Environment Noise Filtering Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS,
IPv6, UDP, Bonjour
ONVIF ONVIF (Profile S, G)
Web Browser IE8 or above
Simultaneous Live View 6 channels
Security Password protection, HTTPS encrypted data transmission, IEEE802.1x Authentication, IP address filter
Alarm Trigger Motion detection, Video tampering, Network disconnected, IP address conflict, Illegal login, Storage full, Storage error
Interface
Network 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm 1 x Alarm in, 1 x Alarm out
Video Output 1 x BNC
Audio Output 1 x Audio input, 1 x Audio output, Built-in microphone
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Communication Interface 1x RS485, 1x RS232
Reset Button Yes
Model HVCB-4500S
General
Operating Temperature -30° C ～ 50° C
Operating Humidity ≤95% (non-condensing)
Protection Level /
Power Supply 12 VDC/ 24 VAC/ PoE (802.3af, class 3)
Power Consumption Max. 7.6W
Materia Metal
Dimensions 142.6(L) × 69.8(W) × 68(H) mm
Weight 830g
* Note: Honeywell reserves the right, without notification, to make changes in product design or specifications.
HVCB-4500S 4MP Box Network Camera, 1/2.8" Progressive Scan CMOS, H.265/ H.264/
MJPEG, TDN, 120dB WDR, 2560 × 1440@25fps, Three streams, IVA, support
128GB on-board storage, ONVIF, 1 x Alarm in, 1 x Alarm out , 1 x Audio input, 1 x
Audio output ,12VDC/ 24VAC/ PoE
