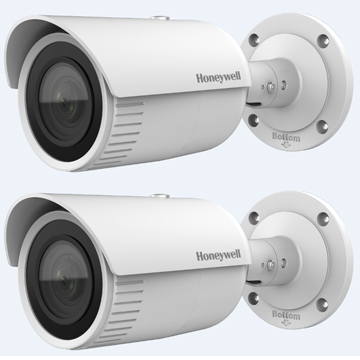

HVCB-4300IV Honeywell 4MP IR Bullet Network Camera
HoneywellHVCB-4300IV HDIR Bullet Network Camera, combines world-class imaging and
camera technology with innovative IP network technology, providing 4MP ultra high quality
image for customers. HVCB-4300IV HD IR Bullet Network Camera with its high-quality
image effect makes it become the ideal solution in advanced monitoring field.
HVCB-4300IV supports PoE Ethernet (IEEE802.3af), can supply power through
network cable directly, help the user save the use of the power adapter, and effectively
reduce the installation cost. To increase installation flexibility of HVCB-4300IV, the
network camera also supports DC12V power supply.
Market Opportunity
Honeywell HVCB-4300IV supports 4MP HD video, PoE Ethernet power supply and
ONVIF interface protocol, even though under the environment of limited bandwidth it
still can present ultra-high quality images. Bullet camera appearance design makes it
become the ideal choice for all kinds of security, monitoring applications, widely used
in all kinds of spaces, such as roads, airports, schools, marketplace, hotels, banking
outlets, enterprises and organs, retail stores, building corridor, etc.
FEATURE
1/3” CMOS
Up to 4MP(2560×1440 @ 25fps)resolution
H.265+/H.265/H.264 encoding
Support 3D DNR, support WDR,120dB
ICR automatic switch, realize true D/N monitoring
50m IR distance
2.8-12mm vari-focal manual lens
Support Motion Detection and Privacy Mask
Support Micro SD card (Max 128G) local storage
IP67 Protection grade
Onvif Compliant
PoE/ DC12V power supply
SPECIFICATION
Model HVCB-4300IV
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination B/W: 0Lux（IR ON）; Color: 0.01Lux
IR Distance 50m
Electronic Shutter 1/3~1/100,000 s
Day/Night TDN (IR cut removable)
Lens 2.8-12mm vari-focal manual lens
FOV Horizontal FOV: 98° 28° , Vertical FOV: 51° ~ 16° (wide-tele)
Output Format PAL/NTSC Adjustable
WDR WDR,120dB
3DNR 3D DNR, BLC
AUDIO/VIDEO COMPRESSION
Video Compression H.265+/ H.265/ H.264
Encoding Feature
Main Stream: 2560 × 1440@25fps/50Hz; 2560 × 1440@30fps/60Hz
Sub Stream: 640 × 480@25fps/50Hz; 640 × 480@30fps/60Hz
H.265 Encoding Main Profile
H.264 Encoding Baseline Profile / Main Profile / High Profile
Max.Resolution 2560X1440
Video Bit Rate Constant bit rate, Variable bit rate（32Kbps ~ 8Mbps）
ROI Support 1 ROI (Region of Interest)
NETWORK FUNCTION
Network Protocol
HTTPS, HTTP, TCP/IP, UDP, FTP, ICMP, IGMP, RTP, RTSP, RTCP, DHCP, DNS, DDNS, PPPoE, NTP, UPnP, SMTP, SNMP, 802.1x, Bonjour,
IPv4/v6, QoS
Access Protocol ONVIF (Profile S, G)
Browser Support IE8 or above
Video Preview Meanwhile 6
User Permission User Add / Modify/ Delete, permission management
Safe Mode Authorized user name and password, HTTPS encryption, AES link encryption
Motion Detection Set detection area, Multi-level sensitivity optional
Tampering Alarm Support
Privacy Mask Support
Device Exception Support network disconnected, IP conflict, illegal access alarm
OSD Title, time and date overlay, multi-line OSD, OSD color optional
Snapshot Function Support snapshot, snapshot resolution is encoding resolution
System Upgrade Support online remote upgrade
INTERFACE
Network Interface RJ45 10M/100M Network Adaptive
Analog Video Output 1ch Analog Video Output (1Vp-p, BNC)
TF Card Support Max 128G, Micro SD/SDHC /SDXC card
GENERAL
Operation Temperature 30° C ~ 50° C
Operation Humidity 95%
Protection grade IP67
Power Supply DC12V /PoE
PoE Support
Power Consumption  （Max.） 7W
Dimensions(mm) Φ 105 × 243 mm
Weight/PCS(g) 0.75kg
*Note: Honeywell reserves the right, without notification to make changes / upgrade in product design and/or specifications.
HVCB-4300IV 4MP IR Bullet Network Camera, 1/3" CMOS, 2.812mm vari-focal
lens , 50m IR leds, H.265+/H.265/H.264 High compression, true D/N
switch, WDR, video tampering alarm, ONVIF, IP67, DC12V/PoE
