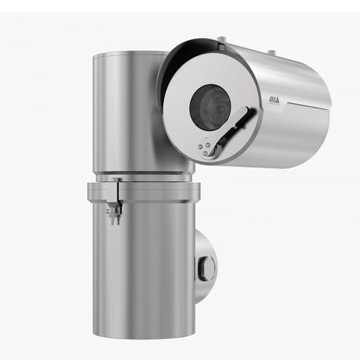

AXIS XPQ1785 Explosion-Protected PTZ Camera
Brand:AXIS
Model:AXIS XPQ1785
Focal length:4.3-137mm
Detail
AXIS XPQ1785 Explosion-Protected PTZ Camera
Globally certified explosion-protected positioning camera
AXIS XPQ1785 is a robust, stainless steel (316L) PTZ camera globally certified for use in potentially combustible environments according to Class I/II/III Div 1 and Zone 1,21 (NEC, CEC, IECEx, ATEX, and more). The built-in smoke alert analytic
monitors for signs of smoke or fire. The camera offers total situational awareness with 360° continuous pan and +/-
90° tilt, both at up to 200°/sec. Axis Zipstream provides exceptional savings on bandwidth and storage requirements
without compromising image quality. Ease of installation is supported by a compact and low-weight design, with both
RJ45 and SFP for fiber or coax and 100–240 V AC power input.
> Worldwide hazardous area certifications
> Smoke alert analytics
> Zipstream and Lightfinder
> HDTV 1080p with 32x optical zoom
> -60 ℃ to 60 ℃ (-76 °F to 140 °F)
AXIS XPQ1785 ATEX, CSA, Class/Division, Class/Zone, IECEx, UL
02278-001
Accessories
To find the right accessory, simply use the filters below.
Mounts
AXIS TQ1001-E Wall Mount
AXIS TQ1301-E Pole Mount 50-150 mm
Requires additional accessory
Technical specifications
DATASHEET (PDF)
Models: AXIS XPQ1785
Camera
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Max video resolution 1920x1080
Max frames per second 50/60
Electronic image stabilization Yes
Lens
Focal length 4.3 - 137 mm
Optical zoom 32
Horizontal field of view 60 - 2.3 °
Vertical field of view 39 - 1.3 °
Compression
Zipstream Yes
H.264 Baseline, Main
H.265 –
Motion JPEG Yes
Network
PoE Class –
Security
Signed firmware Yes
Secure boot –
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot) Yes
Outdoor Ready Yes
IP rating IP66, IP67, IP68
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage 100-240 V
