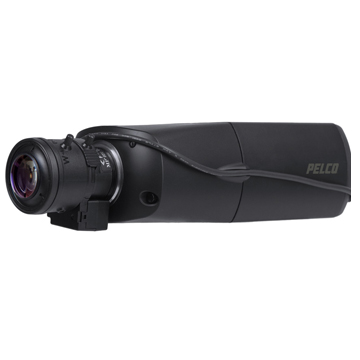

Sarix® IXE Series Box Cameras with SureVision 3.0
UP TO 3MPX, H.264, IP CAMERAS WITH WDR AND LOW-LIGHT PERFORMANCE
Product Features
• SureVision 3.0 Technology, Including:
– 130 dB Wide Dynamic Range (WDR)
– Advanced Low-Light Performance, 0.05 lux
– Anti-Bloom Technology
– 3D Noise Filtering, Enhanced Tone Mapping
• Up to 3 Megapixel (MPx) Resolution
• Up to 60 Frames per Second (fps)
• CS Lens Mounts with Auto Back Focus (ABF)
• Power over Ethernet (PoE), IEEE 802.3af, 24 VAC, 12 VDC
• Pelco H.264 Smart Compression Technology
• Built-in Analytics Suite
• Edge Storage with SD Card, Up to 2 TB Addressable, 512 GB Tested
• Compatible with Pelco and Third-Party Video Systems
• ONVIF Profile S, Profile G, and Profile Q Conformant
• Full 3-Year Warranty and Support
CAMERA
Imaging Device 1/2.8-inch
Imager Type CMOS
Imager Readout Progressive scan
Highest Resolution
3 MPx 2048 x 1536
2 MPx 1920 x 1080
1 MPx 1280 x 960
Signal-to-Noise Ratio >60 dB
Auto Back Focus Yes
Electronic Shutter Range 1/20000 sec to 2 sec
True Wide Dynamic Range 130 dB
White Balance Range 2,000° to 10,000°K
Day/Night Capabilities Yes
Mechanical IR Cut Filter Yes, (ON/OFF/AUTO selectable), with
different set points on lux
Micro SD Card Support Up to 2 TB addressable, 512 GB tested
SDHC/SDXC Cards Supported Yes
Sensitivity f/1.3; 2,850°K; SNR >20 dB
Color (33 ms) 0.050 lux
Color (500 ms) 0.005 lux
Mono (33 ms) 0.010 lux
Mono (500 ms) 0.001 lux
Resolution Model Number Description
1.3 MPx IXE12
Sarix Enhanced Box: Low-light,
WDR, day-night, network camera
with built-in analytics
2 MPx IXE22
Sarix Enhanced Box: Low-light,
WDR, day-night, network camera
with built-in analytics
3 MPx, IXE32
Sarix Enhanced Box: Low-light,
WDR, day-night, network camera
with built-in analytics
RECOMMENDED MOUNT
C10-UM Universal camera mount
RECOMMENDED ENCLOSURES
EH16 Series PoE and 24 VAC indoor/environmental
enclosures
(Note: The 230 VAC EH16 enclosure model is
not compatible with this camera. The
combination of the 15 ~ 50 mm lens and this
camera will not fit into the EH16 Series
enclosure.)
EH35 Series Indoor and environmental enclosures
EH47 Series Indoor and environmental enclosures
RECOMMENDED LENSES
YV3.3X15SR4A MPx lens, varifocal, 15 ~ 50 mm, f/1.5
YV2.8X2.8SR4A MPx lens, varifocal, 2.8 ~ 8 mm, f/1.3
YV2.7X2.2SR4A MPx lens, varifocal, 2.2 ~ 6 mm, f/1.3
