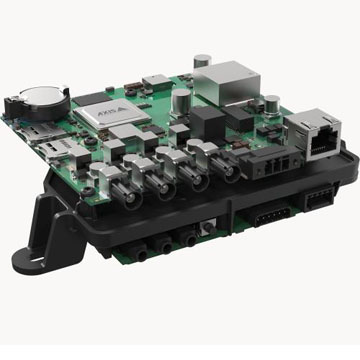

AXIS F9104-B Main Unit 02192-031
2nd generation: 4-channel modular barebone unit
Only compatible with 2nd generation sensors and cables
Compact barebone main unit
UL recognized component
Multiple sensor and cable options
1080p at 30 fps on 4-channels
AXIS F9104-B Main Unit is designed for use with 2nd generation sensors and cables from AXIS F Series. Ideal for building customized video solutions, this UL recognized component is designed for integration into a UL certified end-product. It uses sensor units and cables with SMA-FAKRA connectors available from Axis.
Smart features
This barebone main unit supports four sensor units and requires only one video management software (VMS) license. Ideal for emergency vehicles and buses, it includes ignition control functionality with controlled shutdown to ensure you don’t drain the vehicle’s battery. Furthermore, it offers Axis Zipstream with support for H.264 and H.265 for reduced storage and bandwidth requirements without compromising image quality.
view over atms at nighttime
High performance and maximum flexibility
With four HDTV 1080p video streams at 30 fps on all channels, AXIS F9104-B delivers high-quality video even in challenging and low light conditions. Thanks to Forensic WDR, it provides clarity when there’s both dark and light areas in the scene. Axis Lightfinder captures sharp, color images in low light. Based on a divided network camera concept, this main unit allows for maximum flexibility where both the sensor unit as well as cable type and length are chosen based on your needs. Both AXIS F Series sensors and cables available from Axis use SMA-FAKRA connectors to ensure rugged installations.
f serie produkts
Easy integration and built-in cybersecurity
AXIS F9104-B is excellent for building your own customized solutions. Sold without a casing, this UL recognized component makes it perfect for integration into a UL certified end-product. This is ideal for customers who want to integrate into other devices such as ATMs and ticket machines. Furthermore, it includes built-in cybersecurity features such as Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network.
Technical specifications
DATASHEET (PDF)
Models: AXIS F9104-B Main Unit
Camera
Property description Property value
Image sensor –
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) –
Min illumination/ light sensitivity (B/W) –
Thermal sensitivity (NETD) –
Thermal sensor resolution –
Video
Property description Property value
Max video resolution –
Max frames per second 60
Day and Night functionality –
Electronic image stabilization –
Multiple color palettes –
Lens
Property description Property value
Focal length –
Varifocal lens No
Aperture –
Horizontal field of view –
Vertical field of view –
Lens mount –
Replaceable lens –
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support –
Two-way audio –
System integration
Property description Property value
Audio detection –
Active tampering –
Alarm inputs/outputs 4
Serial connectors Yes
AXIS Camera Application Platform Yes
Digital I/O –
Network
Property description Property value
Power over Ethernet Yes
PoE Class 4
Security
Property description Property value
HTTPS encryption Yes
IEEE 802.1X Yes
General
Property description Property value
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready –
Vandal rating –
IP rating –
Power
Property description Property value
Power (max) –
Power (average) 9.0 W
DC input voltage 10-48 V
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS F9104-B Main Unit AR, AU, BR, CN, EU, JP, KR, UK, US 02192-031
AXIS F9104-B Main Unit IN 02192-143
Compatible Sensor Units
Select a compatible Sensor unit according to your needs
AXIS F9104-B Main Unit Sensor units
AXIS F2105-RE Standard Sensor
2nd generation: Discreet standard sensor with 1080p
AXIS F2115-R Varifocal Sensor
2nd generation: Discreet varifocal sensor with 1080p
AXIS F2135-RE Fisheye Sensor
2nd generation: Discreet fisheye sensor with 1080p
AXIS F4105-LRE Dome Sensor
2nd generation: Discreet mini dome sensor with IR
AXIS F7225-RE Pinhole Sensor
2nd generation: Extremely discreet pinhole sensor
