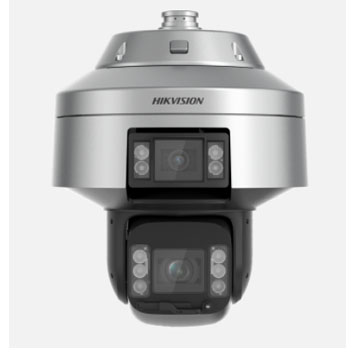

iDS-2SK7184MXS-D(C5F2)(T2)7-inch 4K 5X DarkFighter IR Network Speed
Multi-target-type detection: support automatic person detection and quick capture for face comparison, and link face and human body
Smart events: The panoramic channel arms the detection area and links the PTZ channel to track targets and output alarms
Face capture: The PTZ channel locks onto and captures detected face
Tracking takeover: In smart events, when the target moves out of the panoramic view, the PTZ channel continues to track the target in a larger area
Support simultaneous capture, linked output, and feature abstraction of face and human body
Adjustable pan and tilt position for both channels. Panoramic channel: pan 0 to 360° endless, tilt 0 to 30°. PTZ channel: pan 0 to 330°, tilt -10° to 90°
Auto calibration: Once calibrated, no need for calibration at other PTZ positions
Built-in memory card slot
Easy-to-install all-in-one design with one IP address, one network cable, one power supply, and no server

• Camera
• Image Sensor

  [Panoramic channel]: 1/1.8" progressive scan CMOS,

  [PTZ channel]: 1/1.2 progressive scan CMOS"

• Min. Illumination

  [Panoramic channel]: Color: 0.0005 Lux @(F1.0, AGC ON), B/W: 0.0001 Lux @(F1.0, AGC ON);

  [PTZ channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON), 0 lux with IR

• Shutter Speed1 to 1/30000 s
• Slow Shutteryes
• Focussemi-auto,manual,auto
• Day & NightICR
• Day/Night Switchday,night,auto,scheduled-switch
• BLCyes
• WDR120 dB WDR
• HLCyes
• 3D DNRyes
• Defogyes
• EISyes
• Regional Exposureyes
• Regional Focusyes
• Image Settingssaturation, brightness, contrast, sharpness
• Image Parameters Switchyes
• White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB
• Digital Zoom[panoramic channel] no; [PTZ channel] 16x
• Optical Zoom[panoramic channel] no; [PTZ channel] 5 ×
• Privacy Maskup to 24 masks;polygon region ;mosaic mask ;mask color configurable
• SNR≥52dB
• General Functionmirror;password protection;watermark;IP address filter
• Gain Controlauto;manual

• Lens
• Focal Length[Panoramic channel] 6 mm; [PTZ channel] 10 to 50 mm
• Zoom Speed[PTZ channel] Approx. 1.1 s
• FOV

  [Panoramic channel]

  horizontal field of view: 58.4°,

  vertical field of view: 31°,

  Diagonal field of view: 68.7°;

  [PTZ channel]

  horizontal field of view: 36° to 13.1°,

  vertical field of view: 20.3° to 7.3°,

  diagonal field of view: 41° to 14.85°

• Aperture[panoramic channel] F1.0; [PTZ channel] F1.6

• Illuminator
• White Light Distance

  [panoramic channel] up to 50 m

  [PTZ channel] up to 20 m

• IR Distance[PTZ channel] up to 200 m
• Smart IRyes

• PTZ
• Movement Range (Pan)[panoramic channel] 0 to 360°, [PTZ channel] 0 to 330°
• Movement Range (Tilt)[panoramic channel] 0 to 30°, [PTZ channel] -10° to 90°
• Pan Speed

  [panoramic channel] pan speed: configurable from 0.1° to 100°/s;

  [PTZ channel] pan speed: configurable from 0.1° to 210°/s

• Tilt Speed[panoramic channel] tilt speed: configurable from 0.1° to 25°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s
• Proportional Zoom[panoramic channel]: no; [PTZ channel]: yes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off Memoryyes
• Park Actionpreset;pattern scan;patrol scan;auto scan
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled Taskpreset;pattern scan;patrol scan;auto scan;dome reboot;dome adjust;aux output
• Exception DetectionIP address conflict;HDD full;illegal login;network disconnected;存储器错误

• Video
• Max. Resolution[panoramic channel] 2560 × 1440, [PTZ channel] 3840 × 2160
• Stream Typemain stream, sub-stream, third stream
• Main Stream

  [panoramic channel]

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz：30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  [PTZ channel]

  50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  [panoramic channel]

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  [PTZ channel]

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  [panoramic channel]

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  [PTZ channel]

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video CompressionMJPEG;H.264;H.265
• Video Bit Rate32 to 16384 kbps
• H.264 Typebaseline profile, main profile, high profile
• H.265 Typemain profile
• H.264+yes
• H.265+yes
• SVCyes
• ROIfixed region

• Audio
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
• Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filteringyes

• Smart Features
• Feature Abstractionface feature abstraction, human body feature abstraction, vehicle feature abstraction
• Multi-Target-Type DetectionSupport face, human body, and vehicle capture, track and grade the target, and output the best capture picture; support face and human body feature analysis, modeling and comparison
• Face Comparisonyes
• Basic Eventaudio exception;motion detection;video tampering alarm;alarm input;alarm output;exception
• Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection
• Smart Trackingpanorama tracking;event tracking
• Smart RecordANR;Dual-VCA
• Alarm Linkagepreset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP
• Smart EncodingH.265+;H.264+;ROI;SVC

• Network
• Network StorageNAS (NFS, SMB/ CIFS);ANR
• ProtocolsQos;FTP;SMTP;UPnP;SNMP;IPv4/IPv6;HTTP;HTTPS;802.1x;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;DHCP;Bonjour;UDP;IGMP;ICMP;PPPoE
• APIISAPI;Hikvision SDK;Hik-Connect;ISUP;Open Network Video Interface;Third-party management platform;Open-ended API
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users. 3 levels: Administrator, Operator and User
• Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
• ClientiVMS-4200
• Web BrowserIE10+, Chrome57+, Firefox52+, Safari12+

• Interface
• Communication InterfaceRJ45;self-adaptive;1000 M Ethernet Interface
• On-Board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
• Alarm Input2 alarm inputs
• Alarm Output1 alarm output
• Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output1 audio output, line level, impedance: 600 Ω
• RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

• General
• Power36 VDC ± 25%
• Power Consumption And CurrentMax. 70 W
• Operating Conditions-40℃ to 70℃, humidity lower than 95%RH
• Resetyes
• Wiper[panoramic channel]: no; [PTZ channel]: yes
• Demistyes
• MaterialADC12, PC+10%GF
• DimensionsØ 320 mm × 393 mm (Ø 12.6" × 15.47")
• WeightApprox. 10.6 kg (23.37 lb.)
• Web Client Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Approval
• ProtectionIP66
