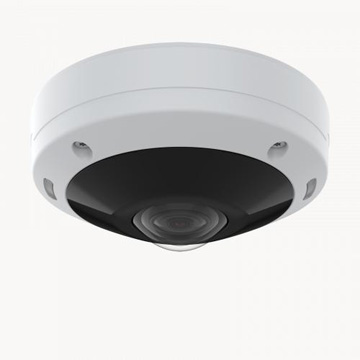

AXIS M4308-PLE 02100-001 Panoramic Camera
12 MP outdoor-ready dome with audio capture
12 MP sensor with 360° overview
Stereographic lens and Sharpdome 360
Lightfinder, Forensic WDR, OptimizedIR
Support for analytics with deep learning
4 microphones with voice enhancer
Technical specifications
DATASHEET (PDF)
Models: AXIS M4308-PLE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.7
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.19 lux
Min illumination/ light sensitivity (B/W) 0.04 lux
Video
Property description Property value
Max video resolution 2880x2880
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 1.3 mm
Horizontal field of view 183 °
Vertical field of view 183 °
Pan, Tilt, Zoom
Property description Property value
Remote PTRZ –
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Built-in microphone Yes
Network
Property description Property value
PoE Class 4
Wireless –
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
Axis Edge Vault Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10 (IR window IK09)
IP rating IP66
Designed for repaint –
Sustainability PVC free
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
AI-based object detection and classification
AXIS Speed Monitor
Visualize radar data and get actionable insights
AXIS Video Motion Detection
Supported
AXIS Fence Guard
For intrusion detection
AXIS Loitering Guard
For detecting loiterers
AXIS Motion Guard
Smart motion detection
