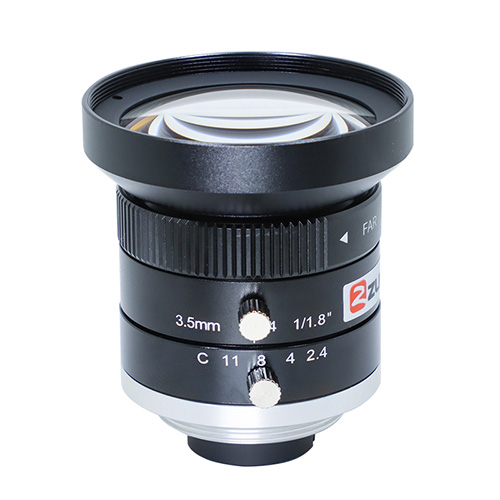

FA Lens HM035MP2 3.5mm Manual Iris Machine Vision Lens 1/1.8" F2.4 100lp/mm C-Mount

Model:HM035MP2

Focal length :3.5MM


Detail

FA Lens HM035MP2 3.5mm Manual Iris Machine Vision Lens 1/1.8" F2.4 100lp/mm C-Mount
1/1.8″C-Mount f=3.5mm F2.4
Can suppress stray light
Low distortion,high contrast
Locking set screws for focus and Iris
Metal structure,compact appearance
Used in Industrial Camera,ITS Camera

2MP 3.5mm FA LensC Mount

Model

HM035MP2

Image Size

1/1.8-inch

Focal length

3.5mm

F No.

F2.4-C

M.O.D(m)

0.1-Inf.

Operation

Iris

Manual

Focus

Manual

Angle of View

(D×H×V)

1/1.8"

104.5°×94.3°×78.0°

1/2"

99.6°×87.9°×71.1°

1/3"

84.2°×71.1°×55.6°

Distortion

-1.23%

BFL

8.57mm

Mount

C-Mount

Object Dimension

1/1.8"

350.5mm×261.3mm(WD=150mm)

1/2"

312mm×230.5mm(WD=150mm)

1/3"

230.5mm×170mm(WD=150mm)

Dimension

Φ42×37.7mm

Weight

130g

Horizontal Resolution

100lp/mm

Filter Thread

M40.5*0.5

Working Temperature

-20ºC+70ºC
