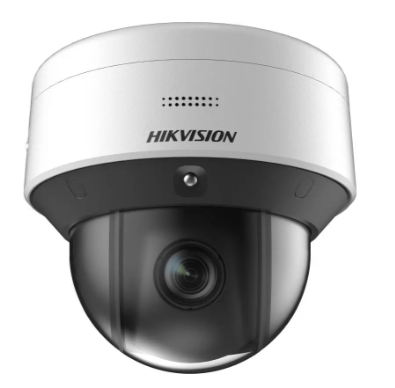

DS-2DE3C210IX-DE(C1)(T5) DS-2DE3C210IX-DE(C1)(T5)3-inch 2 MP 10X Powered by DarkFighter IR Network Speed Dome Camera
High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
10x optical zoom and 16x digital zoom provide close up views over an expansive area
Up to 50 m IR range ensures safety at night
Supports face capture, detects, captures, grades and selects faces in motion, and outputs the best face picture
Water and dust resistant (IP66)

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution1920 × 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.3, AGC ON), B/W: 0.001 Lux @ (F1.3, AGC ON), 0 Lux with IR
• Shutter Speed1/1 to 1/30,000 s
• Day & NightIR cut filter
• Zoom10x optical, 16x digital
• Slow ShutterYes

• Lens
• Focal Length2.8 to 28 mm
• FOVHorizontal FOV 108° to 19.8°, vertical FOV 56.4° to 11.5°
• FocusAuto, semi-auto, manual
• ApertureMax. F1.3
• Zoom SpeedApprox. 6.0 s

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeIR Distance: up to 50 m
• Smart Supplement LightYes

• PTZ
• Movement Range (Pan)355°
• Movement Range (Tilt)0° to 90°
• Pan SpeedPan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
• Tilt SpeedTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
• Proportional ZoomYes
• Presets300
• Preset FreezingYes
• Park ActionPreset, patrol scan
• 3D PositioningYes
• PTZ Status DisplayYes
• Scheduled TaskPreset, patrol scan, dome reboot, dome adjust, auxiliary output
• Power-Off MemoryYes

• Video
• Main Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)8 fixed regions for each stream

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/HostUp to 32 users; 3 user levels: administrator, operator, and user
• SecurityPassword protection, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2/1.3, host authentication (MAC address)
• Network StorageNAS (NFS, SMB/CIFS), ANR
• ClientiVMS-4200, HikCentral Pro, Hik-Connect
• Web BrowserChrome 57+, Firefox 52+, Safari 11+, IE11

• Image
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR≥ 55 dB
• DefogDigital Defog
• Image StabilizationEIS
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
• Regional FocusYes
• Regional ExposureYes

• Interface
• Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In Microphone1 built-in microphone
• Built-In Speaker1 built-in speaker
• Audio

  1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;

  1 output (line out), line level, output impedance: 600 Ω

• Alarm1 input, 1 output
• Power Output12 VDC, max. 0.7 W

• Event
• Basic EventMotion detection, video tampering alarm, exception, alarm input and output
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
• Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan)

• Deep Learning Function
• Face CaptureDetects up to 30 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture of the face
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power12 VDC, Max. 24 W; PoE (802.3at)
• DimensionØ 156.4 mm × 142.1 mm (Ø 6.16" × 5.59")
• WeightApprox. 1.90 kg (4.19 lb.)
• MaterialMetal
• Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• General FunctionMirror, password protection

• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2019);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 62368-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 62368-1:2014+A11:2017);

• Environment

  CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP66 (IEC 60529-2013)
