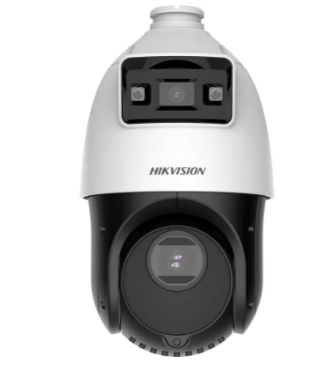

DS-2SE4C215MWG-E(12F0) TandemVu 4-inch 2 MP 15X Colorful & IR Network Speed Dome
Captures a large area and great details at the same time
High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
Secures an expansive area with 15 × optical zoom and 16 × digital zoom
Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Expansive night view with up to 100 m IR distance & 30 m white light
Supports 12 VDC & PoE+
Focuses on human and vehicle targets classification based on deep learning
Related Accessories
DS-1602ZJ
Wall mount
DS-1604ZJ
Wall mount
DS-1604ZJ-BOX-CORNER
Wall mount
DS-1604ZJ-BOX-POLE
Vertical pole mount
DS-1604ZJ-box
Wall mount
DS-1604ZJ-corner
Corner mount
DS-1604ZJ-pole
Vertical pole mount
DS-1619ZJ
Others
DS-1660ZJ
Wall mount
DS-1661ZJ
Pendant Mount
DS-1662ZJ
Pendant Mount
DS-1663ZJ
In-ceiling mount
DS-1667ZJ
Pendant Mount
DS-1673ZJ
Vertical pole mount
DS-1674ZJ
Junction box
DS-1684ZJ
Vertical pole mount

• Camera
• Image Sensor[Bullet channel] 1/2.8" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS
• Min. Illumination

  [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

  [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Speed1 s to 1/30,000 s
• Slow Shutteryes
• Day & NightICR
• Zoom[PTZ channel] 15 × optical, 16 × digital
• White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
• Max. Resolution[Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080

• Lens
• Focusauto,manual,semi-auto
• Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 5 to 75 mm, 15 × optical
• Zoom Speed[PTZ channel]: approx. 2.3 s
• FOV

  [Bullet channel]:Horizontal field of view: 106.1°, Vertical field of view: 56.8°，Diagonal field of view: 126.5°;

  [PTZ channel]:

  Horizontal field of view: 54.8° to 4° (wide-tele),

  Vertical field of view: 31.4° to 2.3° (wide-tele),

  Diagonal field of view: 62.2° to 4.6°(wide-tele)

• Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6

• Illuminator
• Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
• Smart Supplement LightYes
• Supplement Light Range[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m

• PTZ
• Movement Range (Pan)360°
• Movement Range (Tilt)-15° to 90° (auto flip)
• Pan SpeedPan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s
• Tilt SpeedTilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Zoomyes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off Memoryyes
• Park Actionpreset,frame scan,tilt scan,patrol scan,random scan,auto scan,pattern scan,panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled TaskPreset,pattern scan,patrol scan,tilt scan,auto scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
• Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot

• Video
• Region Of Interest (ROI)8 fixed regions for each stream
• Stream Typemain stream, sub-stream, third stream
• Main Stream

  [Bullet channel]:

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  [PTZ channel]:

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  [Bullet channel]:

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

  [PTZ channel]:

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  [Bullet channel]:

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

  [PTZ channel]:

  50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video CompressionH.265,H.264,MJPEG
• Video Bit Rate32 kbps to 16384 kbps
• H.264 Typemain profile,baseline profile,high profile
• H.265 Typemain profile
• H.264+yes
• H.265+yes
• Scalable Video Coding (SVC)yes

• Audio
• Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
• Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
• Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
• Environment Noise Filteringyes

• Smart Features
• Smart RecordANR;Dual-VCA

• Network
• ProtocolsDHCP,FTP,HTTPS,TCP/IP,ICMP,HTTP,SFTP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv4/IPv6,UDP,Bonjour,WebSocket,WebSockets
• Network StorageNAS (NFS, SMB/CIFS),auto network replenishment (ANR)
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• Simultaneous Live View20
• User/Host32
• Security802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
• ClientiVMS-4200,Hik-Connect
• Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

• Image
• Day/Night Switchday, night, auto, scheduled-switch
• Image StabilizationEIS
• Image EnhancementBLC,HLC,3D DNR
• Wide Dynamic Range (WDR)120 dB WDR
• DefogDigital defog
• Regional Exposureyes
• Regional Focusyes
• Image Settingssharpness,saturation,brightness,contrast
• Image Parameters SwitchYes
• Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• SNR＞52dB

• Interface
• Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• Alarm1 alarm input
• Alarm Output1 alarm output
• Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output1 audio output, line level, impedance: 600 Ω
• Resetyes

• Event
• Basic EventMotion detection,video tampering alarm,exception,alarm input and output
• Smart Eventaudio exception detection,region exiting detection,region entrance detection,intrusion detection,Line crossing detection
• Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

• Deep Learning Function
• Face Capture[Bullet channel] no,[PTZ channel] yes

• General
• General Functionmirror, password protection, watermark, IP address filter
• PowerDC12V, PoE+
• Power Consumption And CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
• Operating Conditionhumidity lower than 90%RH ,-30℃ to 65℃ (-22°F to 149°F)
• DemistDemist by heating the glass
• MaterialADC12
• DimensionØ 166 mm × 375 mm (Ø 6.5" × 14.7")
• WeightApprox. 2.4 kg (13.2 lb.)

• Approval
• ProtectionIP66 (IEC 60529-2013),TVS 6000 V lightning protection, surge protection and voltage transient protection
