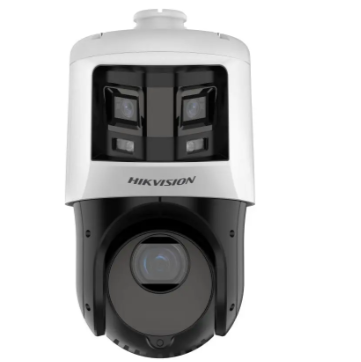

DS-2SE4C425MWG-E/26(F0) TandemVu 6+4MP 25X Colorful & IR Panoramic & PTZ Camera

Model:DS-2SE4C425MWG-E/26(F0)


Detail

DS-2SE4C425MWG-E/26(F0) TandemVu 6+4MP 25X Colorful & IR Panoramic & PTZ Camera
Captures a large area and great details at the same time
High quality panoramic imaging with 6 MP resolution and details imaging with 4 MP
Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
Secures an expansive area with 25× optical zoom and 16× digital zoom
Expansive night view with up to 100 m IR distance & 30 m white light
Supports 12V DC & PoE+
Focuses on human and vehicle targets classification based on deep learning

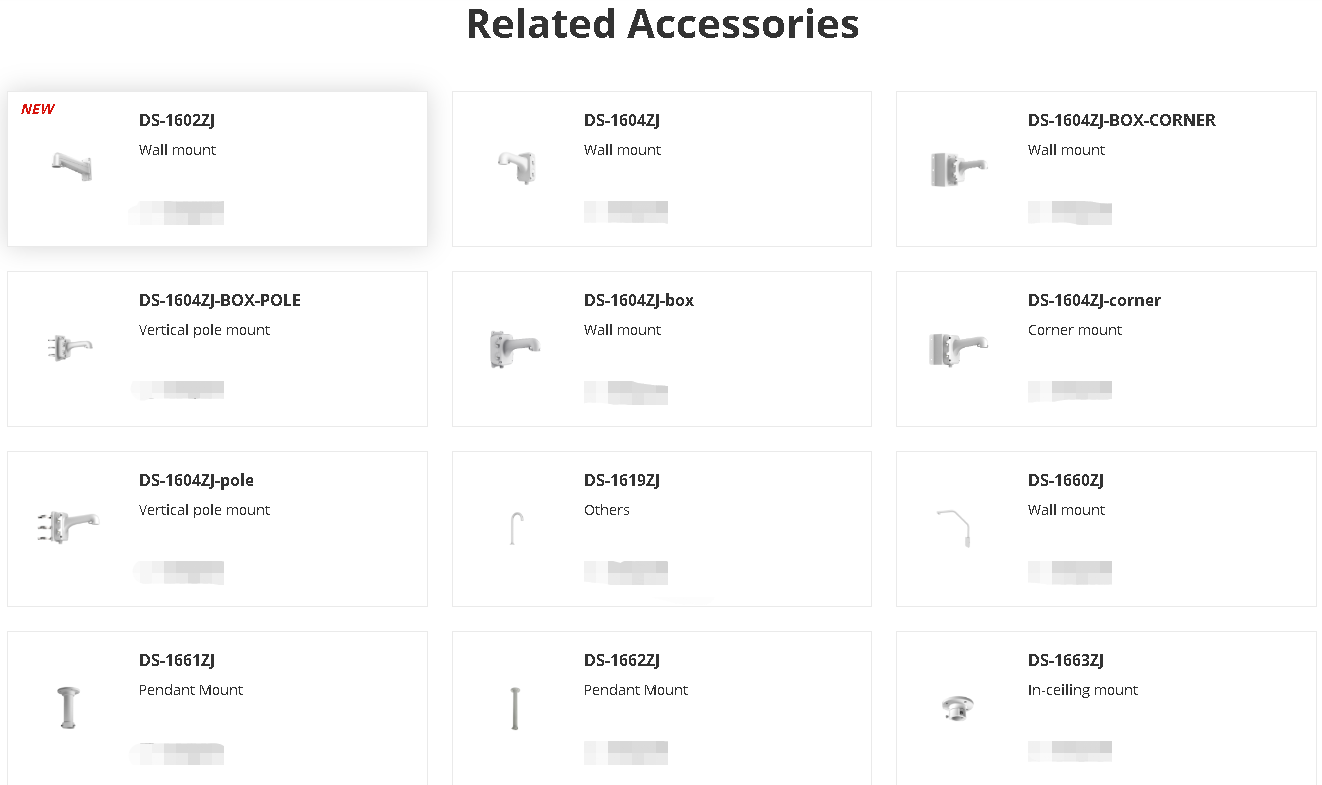

Related Accessories
DS-1602ZJ
Wall mount
DS-1604ZJ
Wall mount
DS-1604ZJ-BOX-CORNER
Wall mount
DS-1604ZJ-BOX-POLE
Vertical pole mount
DS-1604ZJ-box
Wall mount
DS-1604ZJ-corner
Corner mount
DS-1604ZJ-pole
Vertical pole mount
DS-1619ZJ
Others
DS-1660ZJ
Wall mount
DS-1661ZJ
Pendant Mount
DS-1662ZJ
Pendant Mount
DS-1663ZJ
In-ceiling mount

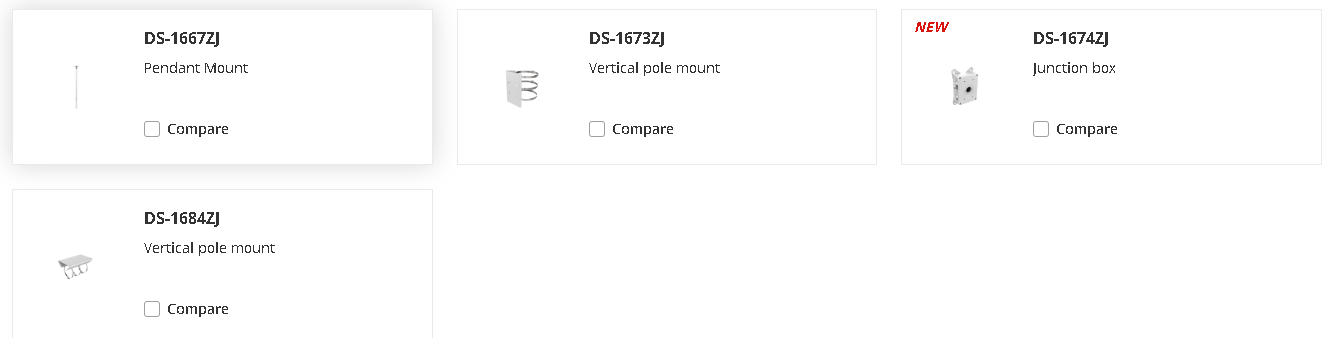

DS-1667ZJ
Pendant Mount
DS-1673ZJ
Vertical pole mount
DS-1674ZJ
Junction box
DS-1684ZJ
Vertical pole mount

  • Camera
  • Image Sensor[Bullet channel]: 1/2.5" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
  • Max. Resolution[Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440
  • Min. Illumination

    [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;

    [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

  • Shutter Speed1 s to 1/30,000 s
  • Slow Shutteryes
  • Focussemi-auto;manual;auto
  • Day & NightICR
  • Zoom[PTZ channel] 25 × optical, 16 × digital
  • Day/Night Switchday, night, auto, scheduled-switch
  • White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
  • Lens
  • Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
  • Zoom Speed[PTZ channel]: approx. 3.6 s
  • FOV

    [Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°;

    [PTZ channel]:

    Horizontal field of view: 55° to 2.4° (wide-tele),

    Vertical field of view: 33° to 1.4° (wide-tele),

    Diagonal field of view: 61.5° to 2.8° (wide-tele)

  • Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
  • Illuminator
  • Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
  • Smart Supplement LightYes
  • Supplement Light Range[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
  • PTZ
  • Movement Range (Pan)360°
  • Movement Range (Tilt)-15° to 90° (auto flip)
  • Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
  • Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Zoomyes
  • Presets300
  • Patrol Scan8 patrols, up to 32 presets for each patrol
  • Pattern Scan4 pattern scans
  • Power-Off Memoryyes
  • Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioningyes
  • PTZ Status Displayyes
  • Preset Freezingyes
  • Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
  • Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot
  • Video
  • Region Of Interest (ROI)8 fixed regions for each stream
  • Main Stream

    [Bullet channel]

    50 Hz:25 fps(3632 × 1632,3680 × 1656)

    60 Hz:30 fps(3632 × 1632,3680 × 1656)

    [PTZ channel]

    50 Hz:25 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)

    60 Hz:30 fps(2560 × 1440,1920 × 1080,1280 × 960,1280 × 720)

  • Sub-Stream

    [Bullet channel]

    50 Hz:25 fps(1200 × 536,960 × 432)

    60 Hz:30 fps(1200 × 536,960 × 432)

    [PTZ channel]

    50 Hz:25 fps(704 × 576,640 × 480,352 × 288)

    60 Hz:30 fps(704 × 480,640 × 480,352 × 240)

  • Third Stream

    [Bullet channel]

    No

    [PTZ channel]

    50 Hz:25 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 576,640 × 480,352 × 288)

    60 Hz:30 fps(1920 × 1080,1280 × 960,1280 × 720,704 × 480,640 × 480,352 × 240)

  • Video CompressionH.265;H.264;MJPEG
  • Video Bit Rate32 kbps to 16384 kbps
  • H.264 Typebaseline profile;main profile;high profile
  • H.265 Typemain profile
  • H.264+yes
  • H.265+yes
  • SVCyes
  • Audio
  • Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC,MP3
  • Audio Bit RateMP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Audio Sampling RateMP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
  • Environment Noise Filteringyes
  • Smart Features
  • Smart RecordANR;Dual-VCA
  • Network
  • APIISAPI,SDK,ISUP,ONVIF
  • Web BrowserIE11+,Chrome57+,Firefox52+,Safari12+,Edge79.0.309.65+
  • Network StorageNAS (NFS, SMB/ CIFS); ANR
  • ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour;WebSocket;WebSockets
  • Simultaneous Live View20
  • User/Host32
  • Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
  • ClientiVMS-4200;Hik-Connect
  • Image
  • Image Settingssharpness, saturation, brightness, contrast
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • DefogDigital defog
  • Image StabilizationEIS
  • Image EnhancementBLC,HLC,3D DNR
  • Regional FocusYes
  • Regional ExposureYes
  • Image Parameters SwitchYes
  • Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
  • Interface
  • Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
  • On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
  • Alarm Input1 alarm input
  • Alarm Output1 alarm output
  • Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output1 audio output, line level, impedance: 600 Ω
  • Event
  • Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
  • Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning,and PTZ actions (such as preset, patrol scan, pattern scan)
  • Smart LinkagePanorama Linkage
  • Deep Learning Function
  • Face Capture

    Detects up to 5 faces simultaneously,

    Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

  • General
  • General Functionmirror,watermark,password protection
  • Power12VDC, PoE+
  • Power Consumption And CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
  • Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
  • Resetyes
  • DemistDemist by heating the glass
  • MaterialADC12
  • DimensionsØ 166 mm × 375 mm (Ø 6.5" × 14.7")
  • WeightApprox. 2.4 kg (13.2 lb.)
  • Approval
  • ProtectionIP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
