13VG1040ASIR Network Surveillance Camera Lenses

Model:13VG1040ASIR

lens:10-40mm

Detail

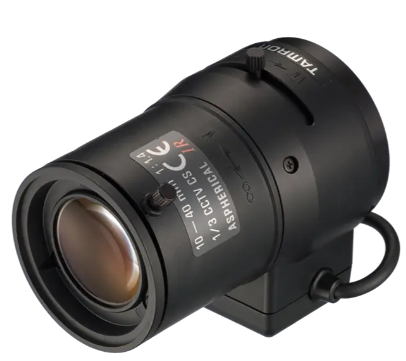

13VG1040ASIR Network Surveillance Camera Lenses
Tele Type
Imager Size 1/3"
Focal Length 10-40mm
Aperture Range F/1.4-360
Iris DC Auto-Iris
Model No.13VG1040ASIR
Imager Size 1/3"
Mount Type CS
Focal Length 10 - 40mm
Aperture Range F/1.4 - 360
Field of View Angle
(Horizontal x Vertical) 1/3" Wide 27.6° x 20.4°
Tele 7.0° x 5.3°
1/4" Wide 20.4° x 15.2°
Tele 5.3° x 4.0°
Focusing Range 0.5m - ∞
Operation Focus Manual w/lock
Zoom Manual w/lock
Iris DC Auto Iris
Filter Size -
Back Focal Distance Wide : 12.166mm( in air )
Tele : 18.602mm( in air )
Wave Length Visible Light - Near lnfrared
Operating Voltage OPEN : 3.0V
CLOSE : 0.5V
Weight 89g 士 4g
Operating Temperature -20°C - +60°C
