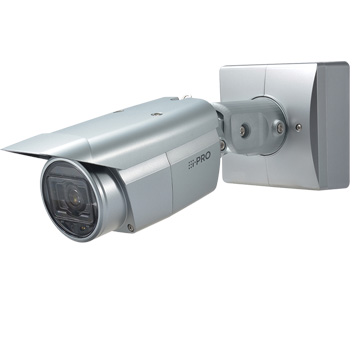

WV-S1531LTN 2MP Outdoor Bullet Network Camera with tele lens
2MP (1080p) 1080p up to 60fps
iA (intelligent Auto)
Extreme Super Dynamic 144dB
Color night vision (0.001 to 0.015 lx)
H.265 Smart Coding
ClearSight Coating
i-VMD License Bundled
NDAA Compliant
This 2MP (1,920 x 1,080) /60 fps Fixed Box Network Camera is based on the concept of "i-PRO EXTREME".
• Intelligent Auto (iA) feature provides increased discernibility even in environments with poor visibility.
• Extreme Super Dynamic technologies deliver 144 dB wide dynamic range.
• Color night vision (0.001 to 0.015 lx)
• H.265 compression and Smart coding technology realize high image quality streaming at low bit rates.
• Encryption and alteration detection functions enhanced the security (FIPS 140-2 Level 1 compliant).
• ClearSight Coating is a special coating applied to the surface of the transparent cover that makes it difficult for water droplets to adhere to the lens cover.
Camera
COMPONENT SPECIFICATION
Image Sensor 1/3 type CMOS image sensor
Minimum Illumination Color : 0.015 lx, BW : 0.008 lx
(F1.7, Maximum shutter : Off (1/30s), AGC : 11)
BW : 0 lx
(F1.7, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit)
Color : 0.001 lx, BW : 0.0005 lx
(F1.7, Maximum shutter : max. 16/30s, AGC : 11)
White Balance AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Shutter Speed 1/30 Fix to 1/10000 Fix
*1/30 Fix to 2/120 Fix is available during 30 fps mode only.
*1/60 Fix is available during 60 fps mode only.
Intelligent Auto On / Off
Super Dynamic On / Off, The level can be set in the range of 0 to 31.
Dynamic Range Max 144 dB (Super Dynamic : On)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back Light Compensation/High Light Compensation BLC (Back light compensation) / HLC (High light compensation) / Off
(only when Super dynamic / Intelligent Auto : Off)
Fog Compensation On / Off(only when Intelligent Auto and Auto contrast adjust : Off)
Maximum Gain The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) /Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light High / Middle / Low / Off, Maximum irradiation distance : 40 m {Approx. 131 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Intelligent VMD (i-VMD) Type 4 *Bundled License
Privacy Zone On / Off, Up to 8 zones available
Image Rotation 0 ° / 90 ° / 180 ° / 270 °
Camera Title (OSD) On / Off Up to 20 characters (alphanumeric characters, marks)
Focus Adjustment Auto back focus / Manual
Lens
COMPONENT SPECIFICATION
Focal length 9.0 - 21 mm {11/32 inches - 13/16 inches}
Zoom Ratio 2.3 x Optical (Motorized zoom / Motorized focus)
Angular Field of View [16 : 9 mode] Horizontal : 14° (TELE) – 34° (WIDE)
Vertical : 8° (TELE) – 19° (WIDE)
[4 : 3 mode] Horizontal : 12° (TELE) – 28° (WIDE)
Vertical : 9° (TELE) – 21° (WIDE)
Maximum Aperture Ratio 1 : 1.7 (WIDE) – 1 : 3.0 (TELE)
Focus range 2.0 m {78-13/16 inches} – ∞
Adjusting Angle
COMPONENT SPECIFICATION
Ceiling mounting Horizontal : ±180 ° (Adjust by horizontal (PAN) angle)
Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle)
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
Wall mounting Horizontal : ±100 ° (Adjust by vertical (TILT) angle)*
Vertical : ±100 ° (Adjust by vertical (TILT) angle)*
Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle)
*You can change between horizontal and vertical angels by adjusting
the horizontal (PAN) angle.
Browser GUI
COMPONENT SPECIFICATION
Camera Control Brightness, AUX On / Off
Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
Audio Output : On / Off Volume adjustment : Low / Middle / High
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Browser Microsoft Edge, Firefox, Google Chrome
Network
COMPONENT SPECIFICATION
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) •2 mega pixel [16 : 9] (30/60 fps)
1,920x1,080 / 1,280 x 720 / 640 x 360 / 320 x 180
•3 mega pixel [4 : 3] (30 fps)
2,048 x 1,536 / 1,280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240
H.265/H.264 [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast / Multicast
JPEG [Image Quality]
10 steps
Smart Coding Smart Facial Coding : On (Smart Facial Coding*) / On (Auto VIQS) / Off
*Smart Facial Coding is only available with Stream(1).
GOP (Group of pictures) : On (Advanced)* / On (Mid) / On (Low) / Off
*On(Advanced) is only available with H.265.
Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps , G.711 : 64 kbps
AAC-LC : 64 kbps / 96 kbps / 128 kbps
Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) /
Interactive (Full duplex)
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTP, FTP, SMTP, DNS, NTP, SNMP,
DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, FTP,
SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP,
ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, SFTP, MQTT, LLDP
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
SDXC/SDHC/SD Memory Card H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC /
Backup upon network failure
JPEG recording :
Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible SDXC/SDHC/SD Memory Card :
Panasonic 2 GB, 4 GB*, 8 GB*, 16 GB*, 32 GB*, 64 GB**, 128 GB**, 256 GB** model
*SDHC card, ** SDXC card (except miniSD card and microSD card)
Mobile Terminal Compatibility iPad, iPhone, AndroidTM mobile terminals
Alarm
COMPONENT SPECIFICATION
Alarm Source 3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification, Indication on browser, FTP image transfer,
Panasonic alarm protocol output
Input/Output
COMPONENT SPECIFICATION
Monitor Output (for Adjustment) VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack
An NTSC or PAL signal can be outputted from camera
Audio input ø3.5 mm stereo mini jack
Input impedance : Approx. 2 kΩ (unbalanced)
(Applicable microphone : Plug-in power type)
Supply voltage : 2.5 V ±0.5 V
Audio Output ø3.5 mm stereo mini jack (monaural output)
Output impedance : Approx. 600 Ω (unbalanced)
External I/O Terminals ALARM IN 1 (Black & white input, Auto time adjustment input) (x1),
ALARM IN 2 (ALARM OUT) (x1), ALARM IN 3 (AUX OUT) (x1)
General
COMPONENT SPECIFICATION
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024
Power Source and Power Consumption DC power supply : DC12 V 750 mA/ Approx. 9.0 W
PoE (IEEE802.3af compliant) Device : DC48 V 195 mA, Approx. 9.4 W (Class 0 device)
Ambient Operating Temperature IR LED : -40 °C to +60 °C (-40 °F to 122 °F), IR LED : Off-40 °C to +60 °C (-40 °F to 140 °F)
(Power On range : –30 °C to +60 °C {–22 °F to +140 °F})
Ambient Operating Humidity 10 to 100 % (no condensation)
Dehumidification Device Rosahl element
Water and Dust Resistance IP66 (IEC60529), measuring standard compatible,
Type 4X (UL50), NEMA 4X compliant
Shock Resistance IK10 (IEC 62262)
Dimensions *Installing using the base bracket 130 mm (W) x 130 mm (H) x 337 mm (L)
{5-1/8 inches (W) x 5-1/8 inches (H) x 13-9/32 inches (L)}
Mass (approx.) Approx. 1.7 kg {3.75 lbs} When using the adapter box : Approx. 2.2 kg {4.85 lbs}
Finish Main body : Aluminum die cast , Metallic silver
Front cover section clear part : Polycarbonate resin (with ClearSight coating), Clear
NOTES
Important
– Safety Precautions : Carefully read the Basic Information,Installation Guide and Operating Instructions before using this product.
– i-PRO Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers' products used on the network.
– Masses and dimensions are approximate.
– Specifications are subject to change without notice.
Trademarks and registered trademarks
– iPad and iPhone are trademarks of Apple Inc., registered in the U.S.and other countries. – Android is a trademark of Google LLC.
– ONVIF is a trademark of ONVIF, Inc.
– All other trademarks identified herein are the property of their respective owners
