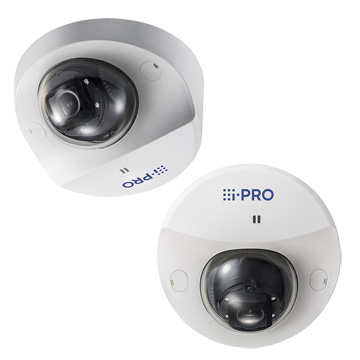

WV-S3111L iA (intelligent Auto) H.265 Compact Dome Camera
720p Indoor Compact Dome Network Camera
HD 720p 60fps
iA (intelligent Auto)
Extreme Super Dynamic 134dB
Color night vision (0.0013 to 0.02 lx)
H.265 Smart Coding
Built-in IR LED
Corridor mode (90 degrees or 270 degrees in image rotation)
i-VMD License Bundled
NDAA Compliant
This HD / 60 fps Compact Dome Network Camera is based on the concept of "i-PRO EXTREME".
Compact size HD Dome Network Camera
The compact body with the diameter of 104mm and the height of 51mm blends in to walls and ceilings.
Even when installing the camera in a store/shop with atmosphere, the installation can be made without destroying the atmosphere.
Extreme image quality allows evidence to be captured even under challenging conditions
- Auto Shutter speed control for fast moving objects with Intelligent Auto
- Sharp and clear images of a walking person day & night
- Outstanding low light performance in true color with low noise for night time applications
- Super Dynamic 134dB for backlit situations on entrance
- Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 15 m (49 feet) irradiation distance
Extreme H.265 compression with new Smart Coding
- Longer recording and less storage compared to any H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) detects movement within the image and compresses the areas with little motion in order to reduce transmitted data while maintaining the quality of the image
- New “Smart Facial Coding” adds more bandwidth reduction for ID camera applications mainly capturing faces
*Region of Interest
Camera
COMPONENT SPECIFICATION
Image Sensor Approx. 1/3 type CMOS image sensor
Minimum Illumination Color : 0.02 lx, BW : 0.01 lx
(F2.3, Maximum shutter : Off (1/30s), AGC : 11) BW : 0 lx
(F2.3, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) Color : 0.0013 lx, BW : 0.0007 lx
(F2.3, Maximum shutter : max. 16/30s, AGC : 11)
White Balance AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Maximum shutter Max. 1/10000 s to Max. 16/30 s
Intelligent Auto On / Off
Super Dynamic On / Off, The level can be set in the range of 0 to 31.
Dynamic Range Max.134 dB typ. (Super Dynamic : On)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back light compensation / High light compensation BLC (Back light compensation) / HLC (High light compensation) / Off
(only when Super dynamic / Intelligent Auto : Off)
Fog Compensation On / Off (only when Intelligent auto / auto contrast adjust : Off)
Maximum gain The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light High / Middle / Low / Off, Maximum irradiation distance : 15 m {Approx. 49 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection On / Off, 4 areas available
Intelligent VMD (i-VMD) Type 4 *Bundled License
Privacy Zone On / Off (up to 8 zones available)
Image rotation 0 ° / 90 ° / 180 °(Upside-down) / 270 °
Mirror On / Off
Camera Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)
Lens
COMPONENT SPECIFICATION
Zoom ratio 1 x Optical
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Focal Length 2.8 mm {1/8 inches}
Angular Field of View [16 : 9 mode] Horizontal : 97°
Vertical : 54°
[4 : 3 mode] Horizontal : 97°
Vertical : 72°
Maximum Aperture Ratio 1 : 2.3
Focus range 0.5 m {19-11/16 inches} – ∞
Adjusting Angle
COMPONENT SPECIFICATION
Adjusting Angle Horizontal (PAN) angle : ±45°, Vertical (TILT) angle : 0 to +90°,
Azimuth (YAW) angle : ±90°
Browser GUI
COMPONENT SPECIFICATION
Camera Control Brightness
GUI/Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian,
Chinese, Japanese
Network
COMPONENT SPECIFICATION
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264 JPEG (MJPEG) •1.3 mega pixel [16 : 9] (30/60 fps)
1,280 x 720 / 640 x 360 / 320 x 180
•1.3 mega pixel [4 : 3] (30 fps)
1,280 x 960 / 800 x 600 / 640 x 480 / 400 x 300 / 320 x 240
H.265/ H.264 [Transmission Mode]
Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type]
Unicast / Multicast
JPEG [Image Quality]
10 steps
Smart Coding GOP(Group of pictures) control
[When H.264 is selected] On(Mid) / On(Low) / Off
[When H.265 is selected] On(Frame rate control) / On(Advanced) /
On(Mid) / On(Low) / Off
Smart Facial Coding*
Off / On(AUTO VIQS) / On(Smart Facial Coding)
*Smart Facial Coding is only available with Stream(1).
Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps
G.711 : 64 kbps
AAC-LC : 64 kbps / 96 kbps / 128 kbps
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6,
MLD, ICMP, ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP,
SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP,
ARP, IEEE 802.1X, DiffServ, SSL/TLS, SRTP, SFTP, MQTT, LLDP
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
microSDXC/microSDHC/ microSD Memory Card H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC /
Backup upon network failure
JPEG recording :
Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Compatible microSDXC/microSDHC/microSD Memory Card :
Panasonic 2 GB, 4 GB*, 8 GB*, 32 GB*, 64 GB**model
*microSDHC card, **microSDXC card
Mobile Terminal Compatibility iPad, iPhone, AndroidTM terminals
Alarm
COMPONENT SPECIFICATION
Alarm Source VMD alarm, Command alarm, Audio detection alarm
Alarm Actions microSDXC/microSDHC/microSD memory recording, E-mail notification,
HTTP alarm notification Indication on browser, FTP image transfer,
TCP alarm notification output
Input/Output
COMPONENT SPECIFICATION
Built-in microphone Nondirectional electret condenser microphone
General
COMPONENT SPECIFICATION
Safety UL (UL60950-1 2Ed), c-UL (CAN/CSA C22. NO.60950-1-07), CE, IEC60950-1
EMC FCC (Part15 Subpart B, ClassA, SDoC), ICES-003 ClassA,
EN55032 ClassB, EN55035
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device :
DC48 V 80 mA, Approx. 3.8 W (Class 2 device)
Ambient Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)
Ambient Operating Humidity 10 to 90 % (no condensation)
Dimensions ø104 mm x 51 mm (H) {ø4-3/32 inches x 2 inches (H)}
Dome radius 27 mm {1-1/16 inches}
Mass (Approx.) Approx. 255 g {0.56 lbs}
Finish Main body : ABS resin, Sail white
Dome section : Polycarbonate resin, Clear
NOTES
Important
– Safety Precautions : Carefully read the Basic Information,Installation Guide and Operating Instructions before using this product.
– i-PRO Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers' products used on the network.
– Masses and dimensions are approximate. Specifications are subject to change without notice.
Trademarks and registered trademarks
– iPad and iPhone are trademarks of Apple Inc., registered in the U.S.and other countries. – Android is a trademark of Google LLC.
– ONVIF is a trademark of ONVIF, Inc.
– All other trademarks identified herein are the property of their respective owners
