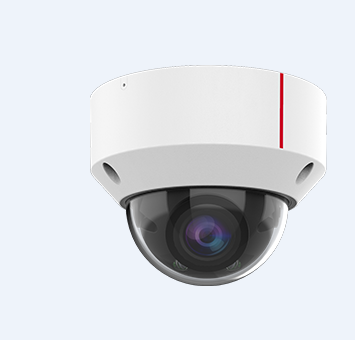

D3250-10-SIU 1T 5MP AI IR Fixed Dome Camera

Model:D3250-10-SIU

Focal length 2.8-12mm

Detail
Major Specifications
Main control
Computing power 1TOPS
Memory DDR3 1.0 GB
Flash type SPI NAND Flash 512.0 MB
Max capacity MicroSD card slot that supports microSDHC/microSDXC; maximum
memory card capacity: 256 GB
Camera
Focal length 2.8-12mm
Max Aperture F1.6
Image sensor 1/2.7" CMOS/5MP 2560(H)*1920(V)
Lens aperture type Fixed iris
Angle of view Horizontal: 30.6° (T) to 94° (W); vertical: 24° (T) to 70°(W)
IR range 30m
Digital Zoom/Optical
Zoom 16X/4X
DORI
(Complied to the EN
62676-4)
D(m) O(m) R(m) I(m)
W 56.0 22.6 11.2 5.6
T 240.0 96.8 48.0 24.0
Intelligence
Target/Body
Target Target detection/Target attribute recognition
Target recognition Supported
Person Person detection
Vehicle
Vehicle analysis Vehicle color/Vehicle type/Vehicle model
Traffic flow statistics Motor vehicle/Non-motorized vehicle/Pedestrian
Other intelligences
Behavior analysis Fast movement/Tripwire crossing/Intrusion/Area entry or exit
/Loitering/Battery Vehicle Detection
Crowd flow analysis Queue length/Head counting/Crowd flow statistics
Non-motorized vehicle Supported
Multi-algorithm
switchover Supported
Defocus Supported
Alarm information No SD card; SD card full; SD card error; Network disconnection;
Defocus detection; IP Address Conflict Detection
Open ecosystem
Algorithm openness Open OS Supported
Data openness Data openness
SDK (proprietary protocol)/REST API (proprietary protocol)/GA/T
1400/GB/T 28181 (2011, 2016)/ONVIF Profile S/G/T
Codec
Video encoding format MJPEG/H.264/H.265
Video encoding channels Triple streams
Intelligent encoding Extra265/264
Video frame rate 5-megapixel: 20 fps; < 5-megapixel: 30 fps or 25 fps
Technical Specifications
Image AI Scene adaptation Backlight adaptation/Overcast adaptation/Speed adaptation
Image ISP
Min illumination Color: 0.005 lux (F1.6, AGC ON); B/W: 0.0025 lux (F1.6, AGC ON) or 0
lux (infrared illuminator enabled)
Day/Night mode
Supported; automatic (ICR)/Color/B/W (default: automatic)
Sensitivity level: high (default), medium, and low Image triggering
/Internal triggering
WDR 120 dB
White balance Auto/Manual/OnePush
HLC/BLC Supported/Supported
Digital noise reduction 2D/3D noise reduction
Shutter speed
The 1/3s to 1/68250s drop-down list box is added. The time can be
manually set to 1/3, 1/4, 1/8, 1/12, or 1/15.
Non-slow shutter level:
1/25,1/30,1/50,1/60,1/90,1/100,1/120,1/125,1/180,1/250,1/350,,1/500,1/725,
1/1000,1/1500,1/2000,1/3000,1/4000,1/6000,1/10000,1/30000,1/100000;;
Default value: 1/25
Signal-to-Noise
Ratio(SNR) >45dB
Primary stream resolution 2560×1920(5MP),2560×1440(4MP),2048×1536(3MP),1920×1080(1080P),
1280×720(720P)
Secondary stream
resolution
Secondary stream 1:720 x 576 (PAL), 720 x 480 (NTSC), 352 x 288
(PAL), 352 x 240 (NTSC)
Secondary stream 2:352 x 288 (PAL), 352 x 240 (NTSC)
Video bit rate
Only for H.264 and H.265
1080P-4K 512Kbps - 16Mbps
720P 384Kbps - 8Mbps
D1 256K - 4Mbps
CIF 32K - 1Mbps
Smart Illumination Not Supported
Optical
Defogging/Algorithmassisted Defogging
Supported/Supported
EIS Supported Sensitivity levels are not supported.
Networking
Network transmission
Protocols supported by
IPv4
TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP,
RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, and
PPPoE. Note: The northbound protocol needs to adapt to the PPPoE
dialup scenario.
Protocols supported by
IPv6 HTTPS,RTP,RTCP,RTSP,Onvif,IPv6,ICMPv6,DHCPv6
Audio
Audio
Audio Encoding Format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726:8K
OPUS:8K/12K/16K/24K/48K
Audio bit rate
G.711a/G.711u:64kbps
G.726:16 kbit/s, 24 kbit/s, 32 kbit/s, or 40 kbit/s

16/24/32/40/64/96/128/160/192/224/256/288Kbps: configurab

Port
Storage port
MicroSD card slot that supports microSDHC/microSDXC; maximum memory card capacity: 256
GB
Alarm port 2 input ports and 1 output port
Network port One RJ45 10M/100M adaptive Ethernet port
Communication serial
port RS-485 port
Audio port
Supported (one-channel LINE IN and one-channel built-in MIC)/Supported (one-channel LINE
OUT)
