8.0C-H6A-FE-180-DO2 8.0C-H6A-FE-360-DO1-IR H6A Fisheye Surface Mount Camera
Experience up to 360° views and capture security events without blind spots with the H6A Fisheye camera.
12 MP max. resolution
Up to 75 ft max. IR range*
AI-powered video & audio analytics
Type 4X enclosure rating
IK10 impact rating

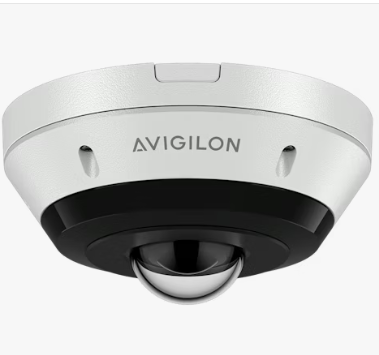

H6A Fisheye Surface Mount Camera
Models MP WDR ANALYTICS LENS IR IP66/IP67
8.0C-H6A-FE-180-DO2 8.0 ✓ ✓ 1.74 mm ✓
8.0C-H6A-FE-180-DO2-IR 8.0 ✓ ✓ 1.74 mm ✓ ✓
8.0C-H6A-FE-360-DO1 8.0 ✓ ✓ 1.4 mm ✓
8.0C-H6A-FE-360-DO1-IR 8.0 ✓ ✓ 1.4 mm ✓ ✓
12.0C-H6A-FE-360-DO1 12.0 ✓ ✓ 1.74 mm ✓
12.0C-H6A-FE-360-DO1-IR 12.0 ✓ ✓ 1.74 mm ✓ ✓
Optional Camera Licenses and Accessories
Accessory Part Number

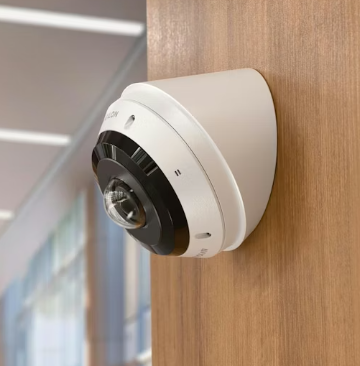

180-FE-WG-MT Wedge wall mount for 180 Fisheye
AVO-FE-ACC-KIT Install Accessory Kit for Fisheye Dome
MSI-FE-DC-KIT Install Accessory Kit for Fisheye In-Ceiling
H5A-FE-MT-NPTA1 NPT Adapter For Fisheye Dome
MSI-FE-CPNL Ceiling Panel for Fisheye In-Ceiling
WLMT-1021 Pendant wall mount, compatible with H5A-FE-MT-NPTA1
PLMT-1001 Pole mount, compatible with WLMT-1021
CRNMT-1001 Aluminum corner mounting bracket, compatible with WLMT-1021
CAM-FIPS Camera license to enable FIPS Level 1 cryptographic mode on any H5A camera
360° & 180° Panoramic views
Maximize visibility in mid-size spaces with panoramic views. Deliver
complete coverage without blind spots, reduce camera count and save
on install costs.

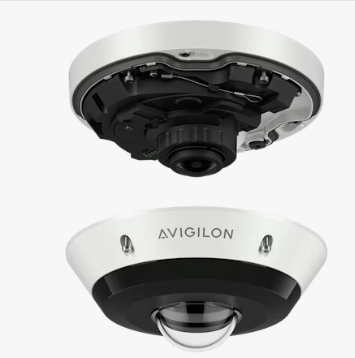

Low-profile & easy-to-install
Install effortlessly with a paintable front plate2 that seamlessly blends
into your decor, ensuring your security is as invisible as it is effective.
AI-powered video analytics
Elevate safety with AI object classification, anomaly detection, tailored
rules and more. Experience constant tracking that overcomes the usual
fisheye blind spot directly below the lens.1
Audio analytics & Recording
Harness cutting-edge technology to actively detect and analyze distinct
sounds, instantly flagging critical incidents. Manually activate optional
recording3 for a complete security overview.
Secure & compliant
Trust that your data is well-protected with advanced cybersecurity
features such as an onboard FIPS 140-3 Level 3 with onboard TPM and
Secure Boot.
ONVIF® conformant
Integrate with existing ONVIF systems via Profile S and T, search and
retrieve edge recordings with Profile G, and enable cross-functionality
with third-party analytics using Profile M.
1 To be available post-launch. 2 Available on in-ceiling mount only.
3 Microphone is turned off by default and can be manually enabled.
