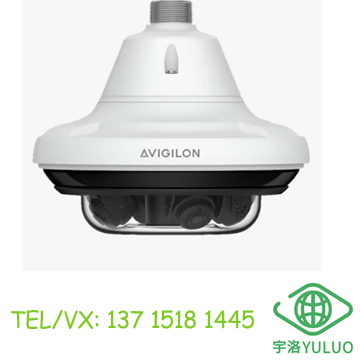

24C-H5A-3MH-30 24C-H5A-3MH-60 32C-H5A-4MH-30 Avigilon H5A Multisensor Camera
Camera Modules
With the modular design of the H5A Multisensor, any camera module can be paired with any mounting adapter
for maximum versatility and optimal installation. Each camera module must be ordered with a mounting
adapter and appropriate dome cover.
MODEL NUMBER MP LENS DAYS OF STORAGE
9C-H5A-3MH-30 3x3MP 3.3-5.7 mm 30 Days
9C-H5A-3MH-60 3x3MP 3.3-5.7 mm 60 Days
9C-H5A-3MH-120 3x3MP 3.3-5.7 mm 120 Days
12C-H5A-4MH-30 4x3MP 3.3-5.7 mm 30 Days
12C-H5A-4MH-60 4x3MP 3.3-5.7 mm 60 Days
15C-H5A-3MH-30 3x5MP 3.3-5.7 mm 30 Days
15C-H5A-3MH-60 3x5MP 3.3-5.7 mm 60 Days
15C-H5A-3MH-120 3x5MP 3.3-5.7 mm 120 Days
20C-H5A-4MH-30 4x5MP 3.3-5.7 mm 30 Days
20C-H5A-4MH-60 4x5MP 3.3-5.7 mm 60 Days
24C-H5A-3MH-30 3x8MP 3.3-5.7 mm 30 Days
24C-H5A-3MH-60 3x8MP 3.3-5.7 mm 60 Days
32C-H5A-4MH-30 4x8MP 3.3-5.7 mm 30 Days
Mounting Adapters and Dome Covers
The Alta H5A Multisensor modular design provides pendant, surface, or in-ceiling mounting adapters and a
choice of two dome covers compatible with all the H5A Multisensor camera modules.
DISPLAY PART NUMBER DESCRIPTION
H5AMH-AD-DOME1 Outdoor surface mount adapter, must order either a H5AMH-DO-COVR1 or
H5AMH-DO-COVR1-SMOKE.
H5AMH-AD-PEND1 Outdoor pendant mount adapter, must order one of WLMT-1001 or NPTA-1001
and one of H5AMH-DO-COVR1 or H5AMH-DO-COVR1-SMOKE.
H5AMH-AD-CEIL1 In-ceiling adapter, must order either a H5AMH-DC-COVR1 or H5AMH-DC-COVR1-
SMOKE.
H5AMH-DO-COVR1 Dome bubble and cover, for outdoor surface mount or pendant mount, clear.
H5AMH-DO-COVR1-SMOKE Dome bubble and cover, for outdoor surface mount or pendant mount, smoked.
Not recommended for low light applications.
H5AMH-DC-COVR1 Dome bubble and cover, for in-ceiling mount, clear.
H5AMH-DC-COVR1-SMOKE Dome bubble and cover, for in-ceiling mount, smoked.
Not recommended for low light applications.
WLMT-1001 Pendant wall arm adapter, for use with H5AMH-AD-PEND1.
NPTA-1001 Pendant NPT adapter for use with H5AMH-AD-PEND1.
PLMT-1001 Aluminum pole mounting bracket, compatible with WLMT-1001.
CRNMT-1001 Aluminum corner mounting bracket, compatible with WLMT-1001.
CLPNL-1001 Metal ceiling panel.
Optional IR Illuminator
The optional IR Illuminator is available for the Alta H5A Multisensor when mounted in a pendant or surface
mount adapter.
DISPLAY PART NUMBER DESCRIPTION
H4AMH-AD-IRIL1 Optional IR illuminator ring, for use with H5AMH-DO-COVR1.
Optional Injectors
DISPLAY PART NUMBER DESCRIPTION
PD-9001 GR/AT/AC-*-MSI Indoor single port PoE+ 30W injector with North American power cord. Injector
operational temperature range -20 °C to +40 °C (-4 °F to 104 °F).
POE60U-1BTE Gigabit 802.3bt 60 W PoE Injector, single port.
*When placing an order, please indicate the required region to ensure that the correct power cord is delivered. The available options are AU (Australia), EU (European Union),
and NA (North America).
Optional Accessories
DISPLAY PART NUMBER DESCRIPTION
CBLKT-1001 Cable kit replacement for Multisensor cameras
Video Management Software:
Unity On-Premise
Alta Cloud-Native
Capture every angle with the H5A Multisensor – offering up to 360-degree views for complete coverage in virtually any area.
180, 270 or 360-degree views
Customizable field of view
Up to 32 MP total resolution
AI-powered video analytics
Benefits of the H5A multisensor camera
Complete coverage with zero compromises. The easy-to-use H5A Multisensor camera combines 24/7 visibility, sharp image quality and AI-powered video analytics so you don’t miss a single detail.
Conquer the dark
See clearly in poorly lit areas with optional IR illumination.
Deploy anywhere
Help secure any area with indoor and outdoor models and multiple mounting options available.
Take action faster with AI
Get alerted in real-time to potentially critical events with built-in video analytics.
Install effortlessly
The camera’s modular design allows for quick and easy assembly.
