VMA-AS3XL-24P48 Avigilon HD Video Appliance 3XL
Reduce your installation time and the overall complexity of your security portfolio with
the Avigilon HD Video Appliances (HDVA3XL), anall-in-one security solution with wall or 1U rack mounting options.
It integrates Avigilon Unity Video 8 software with a high-powered PoE switch and a client workstation to provide
a recording and video management solution that is capable of supporting multi-megapixel IP cameras, supporting up
to Avigilon's 10K (61 MP) H5 Pro camera line. The HDVA3XL product line features improved performance with
pre-installed updated Windows 11 IoT Enterprise LTSC 24H2 (8-port models only) and offers enterprise
infrastructure management with the new upgrade kits for Windows Server 2022 LTSC and out-of-band
anagement module. Furthermore, the HDVA3XL 24-port model features RAID protection, up to 48 TB of storage,
increased throughput, and advanced analytics support1.
Analytics
Avigilon Appearance
Search™ (AS)
Quickly locates a specific
person or vehicle of interest
across an entire site using a
sophisticated deep learning AI
search engine.
UNITY8-ENT or ACC7-ENT
required
Face Recognition (FR)
Detects matches from
managed watchlists to alert
operators of people of
interest. Requires Appearance
Search and an additional
license.
ACC7-FACE or UNITY8-FACE
license required
License Plate Recognition
(LPR)
Works with Unity Video 8
software for accurate license
plate capture at a range of
distances and speeds.
ACC7-LPR or UNITY8-LPR license
required
No Face Mask Detection
Determines whether a person
is not wearing a face mask to
help prevent community
transmission.
UNITY8-ENT or ACC7-ENT
required
Occupancy Counting
With cameras at entrances
and exits, a running total of
occupancy can be monitored
in real time.
ACS Required
Video Appliance
VMA-AS3XL-8P2 HD Video Appliance 3XL 8-Port with Unity Video 8, 2TB, Windows 11 IoT Enterprise 24H2 LTSC
VMA-AS3XL-8P4 HD Video Appliance 3XL 8-Port with Unity Video 8, 4TB, Windows 11 IoT Enterprise 24H2 LTSC
VMA-AS3XL-8P8 HD Video Appliance 3XL 8-Port with Unity Video 8, 8TB, Windows 11 IoT Enterprise 24H2 LTSC
VMA-AS3XL-8P16 HD Video Appliance 3XL 8-Port with Unity Video 8, 16TB, Windows 11 IoT Enterprise 24H2 LTSC
VMA-AS3XL-24P06 HD Video Appliance 3XL Pro 24-Port with Unity Video 8, 6TB, Windows 10 IoT Enterprise 21H2 LTSC
VMA-AS3XL-24P12 HD Video Appliance 3XL Pro 24-Port with Unity Video 8, 12TB, Windows 10 IoT Enterprise 21H2 LTSC
VMA-AS3XL-24P18 HD Video Appliance 3XL Pro 24-Port with Unity Video 8, 18TB, Windows
10 IoT Enterprise 21H2 LTSC
VMA-AS3XL-24P24 HD Video Appliance 3XL Pro 24-Port with Unity Video 8, 24TB, Windows 10 IoT Enterprise 21H2 LTSC
VMA-AS3XL-24P48 HD Video Appliance 3XL Pro 24-Port with Unity Video 8, 48TB, Windows 10 IoT Enterprise 21H2 LTSC
Software Licenses
ACC7-ENT ACC 7 Enterprise Edition license
ACC7-STD ACC 7 Standard Edition license
ACC7-COR ACC 7 Core Edition license
ACC7-FACE ACC 7 Face feature channel license
ACC7-FACE-10C ACC 7 Face feature 10 channel license
ACC7-LPR ACC 7 LPR lane license
UNITY8-ENT Unity Video 8 Enterprise Edition license
UNITY8-STD Unity Video 8 Standard Edition license
UNITY8-COR Unity Video 8 Core Edition license
UNITY8-FACE Unity Video 8 Face feature channel license
UNITY8-FACE-10C Unity Video 8 Face feature 10 channel license
UNITY8-LPR Unity Video 8 lane license
Accessories
VMA-AS3X-IPMI HDVA3X/3XL IPMI module for out of band management
AS3XL-S22-UPG Windows Server 2022 Upgrade Kit for HDVA3XL
VMA-AS3-ANK HDVA3/3X/3XL 16/24-port Analytics Kit for Appearance Search and Face
Recognition
RMS1U-B-AS3-8P 1U Rack mountable shelf for HDVA3/3X/3XL 8-port
RAILS-B-AS3-16/24P 1U Rack rail mount installation kit for HDVA3/3X/3XL 16/24-port
PS-270W-AS3-8P HDVA3/3X/3XL 8-port Power Supply, no power cord
PS-920W-AS3-16/24P HDVA3/3X/3XL 16/24-port Power Supply, no power cord
VMA-AS3-HDD02 HDVA3/3X/3XL 2 TB Hard Drive, compatible with 8-port 2TB and 16-port / 24-port 6TB
VMA-AS3-HDD04 HDVA3/3X/3XL 4 TB Hard Drive, compatible with 8-port 4TB and 16-port / 24-port 12TB
VMA-AS3-HDD06 HDVA3/3X/3XL 6 TB Hard Drive, compatible with 24-port 18TB
VMA-AS3-HDD08 HDVA3/3X/3XL 8 TB Hard Drive, compatible with 8-port 8TB and 24-port 24TB
VMA-AS3XL-HDD16 HDVA3XL 16TB Hard Drive, compatible with 8-port 16TB and 24-port 48TB
8-Port Video Appliance
1U small form factor
Dimensions (L × W × H)
313 mm × 335 mm × 44 mm
[12.3” × 13.2” × 1.73”]
Weight
3.0 kg [6.4 lbs]

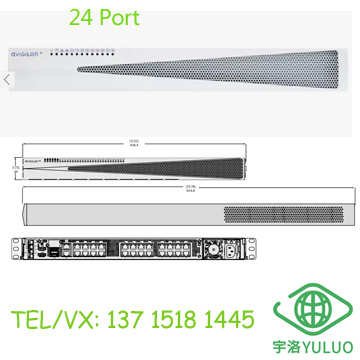

24-Port Pro Video Appliance
1U chassis
Dimensions (L × W × H)
654.8 mm × 438.4 mm × 44 mm
[25.78” × 17.25” × 1.73”]
Weight
10.0 kg [22.0 lbs]
