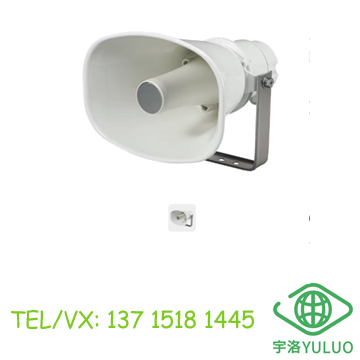

IP-A1SC15 Avigilon IP HORN SPEAKER 15W
The IP-A1SC15 is an IP paging horn speaker to deliver clear announcements via network with 124 dB output
capability powered by PoE + power source. I ts rugged enclosure is IP66 rated for outdoor environments.
The IP-A1SC15 supports common network protocols for easy integrations with Video Management Systems and
other SIP-compatible VoIP systems and devices. It can be detected as a generic ONVIF device by using
ONVIF protocol. Group paging function is available with 10 Multicast ports for zone paging requirements.
Internal sound source file storage allows storing pre-recorded messages or tones which can be played back by
2 control inputs or Remote AP .
SPECIFICATIONS
Power Source PoE+ ( IEEE802.3at Class 4), PoE ( IEEE802.3af Class 3)
Power Consumption 22 W ( at PoE + powered, rated output) 13 W ( at PoE powered, rated output) 5 W ( I EC62368-1l
Amplifier Rated Output 15 W ( at PoE + powered l, 8 W ( at PoE powered l Sensitivity 112 dB (1 W, 1 ml (500 Hz - 2.5 kHz, peak level)
Maximum 124 dB (at PoE+ powered, 15 W, 1 ml (500 Hz - 2.5 kHz, peak level)
Sound Pressure level 121 dB ( at PoE powered, 8 W, 1 ml ( 500 Hz - 2.5 kHz, peak level l
Frequency Response 280 Hz - 12.5 kHz
Audio Codec PCMU (G.711ul, PCMA (G.711al, G.722
Broadcasting Mode SIP Broadcasting Mode: PCMU/PCMA/G.722
Multicast Broadcasting Mode: PCMU/PCMA/G. 722, Max. 10 ports
VMS Broadcasting Mode: Audio Backchannel, PCMU
Internal Message Broadcasting Mode
Note: Each broadcast mode can be assigned an order of priority using the
Priority Settino function.
Internal Messages Max. 20 messages ( Max. recording capacity: 80 MB l
Supported file formats
WAV file: 8/16/ 44.1 / 48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/ 44.1 / 48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat count: 1 - 10 times, Interval time: 0 - 30 sec
Triqqer: Control Input or Remote AP! (HTTP)
Network 1/F 100BASE-TX, MD I /MD 1-X, RJ-45
Network Protocol TCP/IP, UDP, HTTP, RTP, ARP, ICMP, RTSP, SIP (RFC3261 l
Control Input 2 channels, no-voltage make contact inputs, open voltage: 5 V DC,
short-circuit current: 2 mA or less, removable terminal block ( 3 pins l
Control Output 1 channel, open collector output, withstand voltage: 30 V DC,
control current: 10 mA or less, removable terminal block ( 3 pins l
Indicator LAN LINK/ACT (qreenl, STATUS (oranael
Dust/Water Protection IP66
Operatinq Temperature -30 'C to +55 'C (-22 'F to +131 'Fl
Operatinq Humidity 90 %RH or less ( no condensation l
Finish Horn flare and body: Aluminum, off-white ( RAL 9010 equivalentl, paint
Reflector horn: ABS resin, off-white( RAL 9010 equivalent)
Rear cover: PC resin, off-white ( RAL 9010 equivalentl, paint
Bracket, screws and bolts: Stainless steel
Dimensions 222 (W) X 211 (H) X 276 (D) mm (8.74" X 8.31" X 10.87")
Weiqht 1.4 kq (3.09 lbl
Accessory Rear cover ... 1, Removable terminal pluq ( 3 pins l ... 2
Option Speaker mount bracket: SP-131, SP-201, SP-301
Pole band: YS-60B
