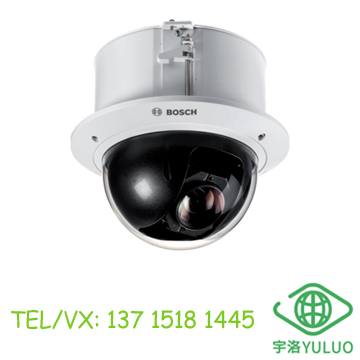

NDP-5522-Z30C PTZ 2MP 30x HDR in-ceiling
Starlight camera technology with excellent low
light performance
120dB dynamic range lets you capture details
in overexposed situations with confidence
Intelligent streaming, IDNR and H.265 reduce
bit rate by up to 80%
Built-in Essential Video Analytics to trigger
relevant alerts and quickly retrieve data
High resolution bubble to ensure maximum
effective resolution output
Simple installation with flexible mounting
options (in-ceiling or pendant mounting)
Sensor Sensor type
1/2.8 inch CMOS
Effective pixels (H x V)
1,945 x 1,097
Total sensor pixels
2.13 MP approx.
Optical Lens zoom (x)30x
Lens focal length (mm)
4.5 mm – 135 mm
Lens aperture (/F)1.6 /F – 4.4 /F
Horizontal field of view (º)
2.4° – 60.9°
Digital zoom (x) 16x
Construction
Dimensions (Ø x H) (mm)
198 mm x 176.6 mm
Dimensions (Ø x H) (in)
7.8 in x 7 inWeight (kg)2.10 kg
Weight (lb)4.60 lb
MaterialHousing: SPCC; Trim ring: Polycar bonate/ABS
Ordering information
NDP-5522-Z30C PTZ 2MP 30x HDR in-ceiling
In-ceiling IP PTZ dome camera; 1080p60; 30X optical,
4x4 digital zoom; 120dB HDR; starlight imaging; IAE;
 EVA; PoE; Intelligent Streaming; clear, high-resolution,
coated bubble. Dual power options.
NDAA and TAA compliant.
Order number NDP-5522-Z30C
Accessories
NPD-6001B Midspan, 60W, single port, AC in
60 W indoor midspan for cameras without illuminators
Order number NPD-6001B
NPD-6001C Midspan, bt, 60W, indoor
Indoor midspan with Power-over-Ethernet for use with
PoE-enabled cameras; 60 W, single-port, AC input
Order number NPD-6001C
NPD-6001C-E Midspan, bt, 60W, IP67
Outdoor midspan with Power-over-Ethernet for use
with PoE-enabled cameras; 60 W, single-port
Order number NPD-6001C-E
UPA-2450-50 PSU, 220VAC 50Hz, 24VAC 50VA out
Indoor power supply for camera. 220 VAC, 50 Hz in;
24 VAC, 50 VA out
Order number UPA-2450-50
UPA-2450-60 PSU, 120VAC 60Hz, 24VAC 50VA out
Indoor power supply for camera. 120 VAC, 60 Hz In;
24 VAC, 50 VA Out
Order number UPA-2450-60
NDA-U-PA0 Surveillance cabinet 24VAC
Surveillance cabinet, 24 VAC input, 24 VAC output
Order number NDA-U-PA0
NDA-U-PA1 Surveillance cabinet 120VAC
Surveillance cabinet, 100 - 120 VAC 50/60 Hz input,
24 VAC output
Order number NDA-U-PA1
NDA-U-PA2 Surveillance cabinet 230VAC
Surveillance cabinet, 230 VAC input, 24 VAC output
Order number NDA-U-PA2
NDA-U-PSMB Pendant wall/ceiling mount SMB
Surface mount box (SMB) for wall mount or pipe
mount.
Order number NDA-U-PSMB
VGA-IC-SP Suspended ceiling support kit,7"
Suspended ceiling support kit for dome cameras.
Aperture Ø177 mm (Ø7 in). Maximum supported weight 11.3 kg (25 lb).
Order number VGA-IC-SP
MNT-ICP-ADC Drop ceiling suppport kit for
AUTODOME
Suspension ceiling support kit for AUTODOME IP
4000/5000/7000 AND VG5-100/600 series in-ceiling
cameras
Order number MNT-ICP-ADC
VG4-SFPSCKT Ethernet to SFP interface kit
Ethernet media converter video transmitter/data
receiver fiber optic kit
Order number VG4-SFPSCKT
SFP-2 Fiber module, multimode, 1310nm, 2LC
SFP Fiber Optic Module, 2 km (1 .2 miles), 2 LC
connectors.
Multi-mode
1310 mm
Order number SFP-2
SFP-3 Fiber module, single-mode, 1310nm, 2LC
SFP Fiber Optic Module, 20 km (12 .4 miles), 2 LC
connectors.
Single-mode
1310 nm
Order number SFP-3
SFP-25 Fiber module, 1310/1550nm, 1SC
SFP Fiber Optic Module, 2 km (1 .2 miles), 1 SC
connector
Multi-mode
1310/1550 nm
Order number SFP-25
SFP-26 Fiber module, 1550/1310nm, 1SC
SFP Fiber Optic Module, 2 km (1 .2 miles), 1 SC  connector
Multi-mode
1550/1310 nm
Order number SFP-26
Software Options
MVS-FCOM-PRCL License key for serial protocol
Serial Protocol Software License (e-license) for IP
Cameras
Order number MVS-FCOM-PRCL
Services
EWE-AD5HD-IWMP 12 mths wrty ext AD IP 5000 mov par
12 months warranty extension
Order number EWE-AD5HD-IWMP
Key Specifications
Camera functionality Backlight compensation (BLC); Display stamping
Input voltage (VAC) 24 VAC
Iris control Automatic (with manual override)
Material Housing: SPCC; Trim ring: Polycarbonate/ABS
Operating temperature (°C) -10 – 60 °C
Pan range (°) 0° – 360° continuous
Protocols / standards IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; APIPA (Auto-IP, link local address); NTP (SNTP); SNMP (V1, MIBII); SNMP (V3, MIBII); 802.1x, EAP/TLS; DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; DiffServ (QoS); LLDP; SOAP; CHAP; Digest authentication; MQTT
Sensor type 1/2.8 inch CMOS
Storage temperature (°C) -40 – 60 °C
Video compression H.264 (ISO/IEC 14496-10); M-JPEG; H.265/HEVC
Weight (kg) 2.10 kg
Midspan, bt, 60W, indoor
Commercial Type No. NPD-6001C
Product No. F.01U.398.266
Indoor midspan with Power-over-Ethernet for use with PoE-enabled cameras; 60 W, single-port, AC input
Midspan, bt, 60W, IP67
Commercial Type No. NPD-6001C-E
Product No. F.01U.398.267
Outdoor midspan with Power-over-Ethernet for use with PoE-enabled cameras; 60 W, single-port
PSU, 220VAC 50Hz, 24VAC 50VA out
Commercial Type No. UPA-2450-50
Product No. F.01U.076.157
Indoor power supply for camera. 220 VAC, 50 Hz in; 24 VAC, 50 VA out
PSU, 120VAC 60Hz, 24VAC 50VA out
Commercial Type No. UPA-2450-60
Product No. F.01U.076.154
Indoor power supply for camera. 120 VAC, 60 Hz In; 24 VAC, 50 VA Out
Midspan, 60W, single port, AC in
Commercial Type No. NPD-6001B
Product No. F.01U.347.358
60 W indoor midspan for cameras without illuminators
Surveillance cabinet 24VAC
Commercial Type No. NDA-U-PA0
Product No. F.01U.324.947
Surveillance cabinet, 24 VAC input, 24 VAC output
Surveillance cabinet 120VAC
Commercial Type No. NDA-U-PA1
Product No. F.01U.324.948
Surveillance cabinet, 100 - 120 VAC 50/60 Hz input, 24 VAC output, IP66
Surveillance cabinet 230VAC
Commercial Type No. NDA-U-PA2
Product No. F.01U.324.949
Surveillance cabinet, 230 VAC input, 24 VAC output, IP66
Pendant wall/ceiling mount SMB
Commercial Type No. NDA-U-PSMB
Product No. F.01U.324.942
Surface mount box (SMB) for wall mount or pipe mount.
Suspended ceiling support kit,7"
Commercial Type No. VGA-IC-SP
Product No. F.01U.245.271
Suspended ceiling support kit for dome cameras. Aperture Ø177 mm (Ø7 in). Maximum supported weight 11.3 kg (25 lb).
Drop ceiling suppport kit for AUTODOME
Commercial Type No. MNT-ICP-ADC
Product No. F.01U.316.128
Suspension ceiling support kit for AUTODOME IP 4000/5000/7000 AND VG5-100/600 series in-ceiling cameras
Ethernet to SFP interface kit
Commercial Type No. VG4-SFPSCKT
Product No. F.01U.142.529
Ethernet media converter video transmitter/data receiver fiber optic kit for AUTODOME 7000i cameras and for the Surveillance cabinets (NDA-U-PA0, NDA-U-PA1 and NDA-U-PA2).
Fiber module, multimode, 1310nm, 2LC
Commercial Type No. SFP-2
Product No. F.01U.136.537
SFP Fiber Optic Module, 2 km (1.2 miles), 2 LC connectors.
Multi-mode1310 mm
Fiber module, single-mode, 1310nm, 2LC
Commercial Type No. SFP-3
Product No. F.01U.136.538
SFP Fiber Optic Module, 20 km (12.4 miles), 2 LC connectors.
Single-mode1310 nm
Fiber module, 1310/1550nm, 1SC
Commercial Type No. SFP-25
Product No. F.01U.136.541
SFP Fiber Optic Module, 2 km (1.2 miles), 1 SC connector
Multi-mode1310/1550 nm
Fiber module, 1550/1310nm, 1SC
Commercial Type No. SFP-26
Product No. F.01U.136.542
SFP Fiber Optic Module, 2 km (1.2 miles), 1 SC connector
Multi-mode1550/1310 nm
License key for serial protocol
Commercial Type No. MVS-FCOM-PRCL
Product No. F.01U.314.101
Serial Protocol Software License (e-license) for IP Cameras
12 mths wrty ext AD IP 5000 mov par
Commercial Type No. EWE-AD5HD-IWMP
Product No. F.01U.402.735
12 months warranty extension
Parts included with this product
Quantity Component
1 AUTODOME IP starlight 5000i in-ceiling camera
1 Mounting template
1 Screwdriver, T10 Torx
4 MAC address labels
1 Quick Installation Guide
1 Safety instructions
