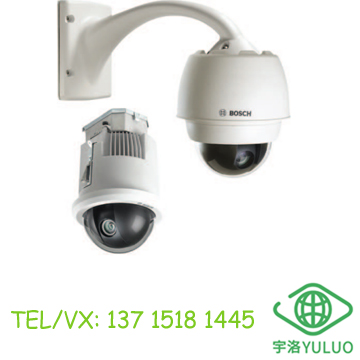

NDP-7604-Z12L PTZ 8MP 12x IP66 pendant IR
UHD “4K” resolution (3840 x 2160 pixels) @ 30fps, 12x zoom with Optical Image Stabilization (OIS)
IR illumination with detection distance of 200 m (656 ft)
IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
Built-in artificial intelligence alerts operators of unusual scene activity
Fully configurable quad streaming
Optional direct fiber connection for increased communications security
Key Specifications
Camera functionality Geolocation; Audio detection; Backlight compensation (BLC); Intelligent auto exposure; Contrast enhancement; Sharpness enhancement; Intelligent defog; Pixel counter; Tamper detection; Saturation; Brightness; Display stamping; Color hue
Color (lx) 0.2998 lx
Effective pixels (H x V) 5544 x 3694
Ethernet type Auto-sensing; 100BASE-TX; 1000BASE-T; Full duplex
Input voltage (VAC) 24 VAC
Lens aperture (/F) 2.8 – 4.5 /F
Lens focal length (mm) 9.3 – 111.6 mm
Lens zoom (x) 12 x
Material Aluminum
Monochrome (lx) 0.1430 lx
Operating temperature (°C) -40 – 50 °C
Pan range (°) 0° – 360° continuous
Pre-position accuracy (average) (°) 0.10 °
Protocols / standards IPv4; IPv6; UDP; TCP; HTTP; HTTPS; RTP/RTCP; IGMP V2/V3; ICMP; ICMPv6; RTSP; FTP; ARP; DHCP; NTP (SNTP); SNMP (V3, MIBII); DNS; DNSv6; DDNS (DynDNS.org, selfHOST.de, no-ip.com); SMTP; iSCSI; UPnP (SSDP); DiffServ (QoS); SOAP; CHAP; Digest authentication; HSTS; RTSPS; MQTT; SRTP
Sensor type 1 inch CMOS
Storage temperature (°C) -40 – 70 °C
Video compression H.264 (ISO/IEC 14496-10); M-JPEG; H.265/HEVC
Weight (kg) 5.80 kg
Accessories
Wall arm & PSU for AD7100i 24VAC
Commercial Type No. NDA-7100-PA0H
Product No. F.01U.430.208
Wall arm + Power supply unit for AUTODOME 7100i cameras, IK10 rating
24 VAC
Wall arm & PSU for AD7100i fiber 24VAC
Commercial Type No. NDA-7100-PA0HF
Product No. F.01U.430.211
Wall arm + Power supply unit for AUTODOME 7100i cameras, IK10 rating
24 VAC
Wall arm & PSU for AD7100i 120VAC
Commercial Type No. NDA-7100-PA1H
Product No. F.01U.430.209
Wall arm + Power supply unit for AUTODOME 7100i cameras, IK10 rating
120 VAC
Pendant arm for AUTODOME 7100i
Commercial Type No. NDA-7100-PEN
Product No. F.01U.389.329
Pendant arm mount for AUTODOME 7100i and AUTODOME 7100i IR cameras
Pendant arm fiber AUTODOME 7100i
Commercial Type No. NDA-7100-PENF
Product No. F.01U.395.439
Pendant arm with direct fiber connection for AUTODOME 7100i and AUTODOME 7100i IR cameras
Pipe mount for AUTODOME 7100i
Commercial Type No. NDA-7100-PIPE
Product No. F.01U.389.330
Pipe mount for AUTODOME 7100i and AUTODOME 7100i IR cameras
Parts included with this product
Quantity Component
1 AUTODOME 7100i IR camera
1 Quick Installation Guide
1 Safety instructions
4 MAC address labels
