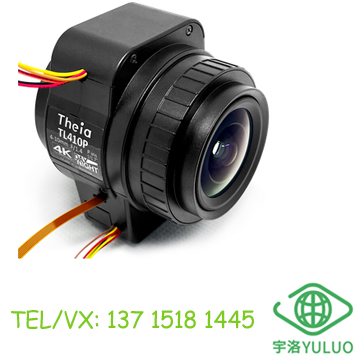

ML410P R6 Theia 4K Standard Lens
Motorized 4K Lens: TL410
Ultra high resolution, standard focal range lens
4-10mm focal range
True 4K, 12 megapixel resolution
Fully motorized with zoom, focus, iris. Some models include IR cut, and limit switches
IR corrected for Day/Night
Compact design to fit into domes as small as 4” mini-dome size
1/2.3" up to 1/1.7" sensor sizes
Theia offers a downloadable Motor Temperature Calculator that estimates the
temperature of focus and zoom motors after cycles of running and cool down.
For ease of evaluation of Theia’s motorized lenses we offer a lens motor
control board. This can be controlled by USB, I2C, and UART connections. You
will find more information about the Motor Control Board at the link shown.
The non-motorized version of the lens is the SL410 / ML410.
Similar to Theia's other lenses, the TL410 series is a high quality lens
designed to allow the installer to take full advantage of the high resolution of
4K resolution, HD, and multi megapixel cameras. The lens can be used on cameras
up to 12 megapixel resolution giving a crisp image from edge to edge.

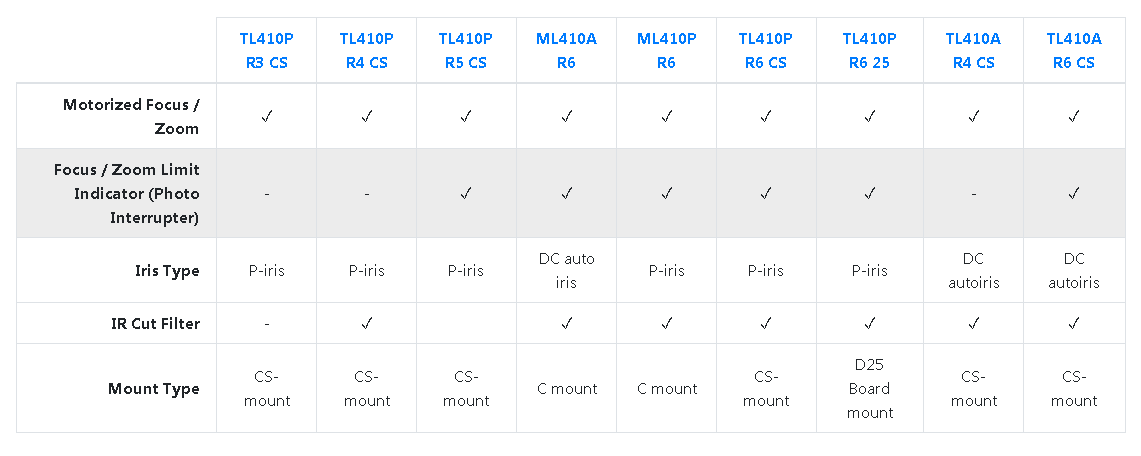

ML410A R6
4-10mm, 4k 12mpx, Day/Night, DC Auto iris, 1/1.7" format C mount lens
ML410P R6
4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format C mount lens
TL410A R4 CS
4-10mm, 4k 12mpx, Day/Night, DC auto iris, 1/1.7" format, motorized zoom, focus, IR cut, CS mount lens
TL410A R6 CS
4-10mm, 4k 12mpx, Day/Night, DC auto iris, 1/1.7" format, motorized zoom, focus, IR cut, PI motor stops, CS mount lens
TL410P R3 CS
4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, CS
mount lens
TL410P R4 CS
4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, PI motor stops, CS mount lens
TL410P R5 CS 4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, PI motor stops, CS mount lens
TL410P R6 25
4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, IR cut, PI motor stops, D25 mount lens
TL410P R6 CS
4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, IR cut, PI motor stops, CS mount lens
