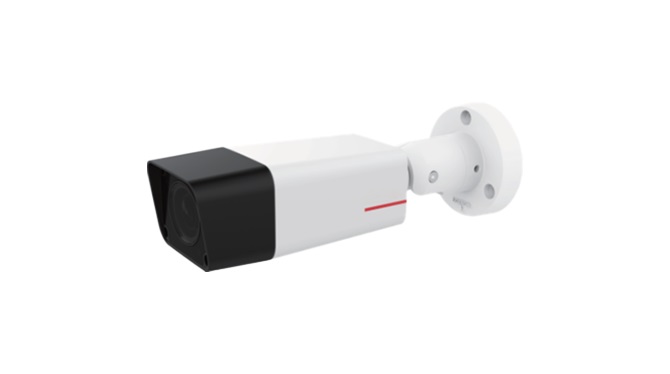

IPC6284-VRZ 8MP IR Motorized Zoom Bullet Camera
Supports behavior analysis;
1/2.5" CMOS sensor;
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
CPU Hi3519 V101
Memory DDR3 1.0 GB
Flash type SPI NAND Flash 256.0 MB
Max resolution 4K 3840(H)*2160(V)
Sensor size 1/2.5"
Min illumination Color: 0.08 lux (F1.53, AGC ON); B/W (infrared illuminator disabled): 0.08 lux (F1.53, AGC ON); B/W (infrared illuminator enabled): 0 lux
Focal length 4.1–12.8 mm
Angle of view Horizontal: 28.2° (T) to 87.8° (W); vertical: 15.9° (T) to 48.4° (W)
IR range 30 m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Behavior analysis Fast movement,Removed object,Tripwire crossing,Intrusion,Loitering
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 12 V DC and PoE (IEEE 802.3at)
Power consumption Maximum: 15.6 W; typical: 5 W
Operating temperature –40°C to +60°C (illuminator disabled) –40°C to +40°C (illuminator enabled)
Operating humidity 5% to 95% (non-condensing)
IP rating IP67
IK rating IK10
