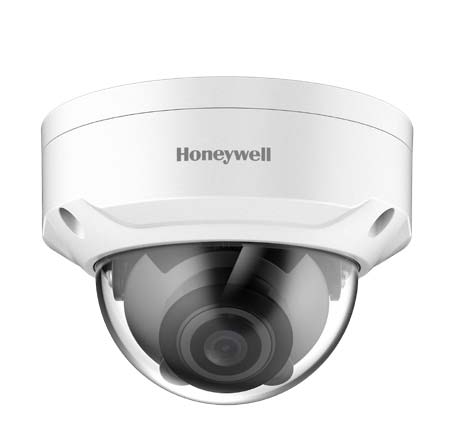

H4W8PR2 Honeywell Network WDR 8MP IR Rugged Mini Dome Camera

OPERATIONAL
VIDEO STANDARD NTSC/PAL
SCANNING SYSTEM Progressive scan
IMAGE SENSOR 1/2" 8Megapixel Progressive Scan CMOS
NUMBER OF PIXELS (H × V) 3840(H) × 2160(V)
MINIMUM ILLUMINATION 0.09lux/F1.9(color,30IRE), 0 Lux with IR ON
S/N RATIO More than 45dB
ELECTRONIC SHUTTER
SPEED 1/3~1/100000s
IR DISTANCE Up to 30m (98ft), depending on scene reflectance
IR LIGHT CONTROL Manual/SmartIR/OFF
IR LIGHT NUMBER 2
DAY/NIGHT Auto (ICR) / Color / B&W
BACKLIGHT
COMPENSATION BLC / HLC / WDR
WHITE BALANCE Auto/Natural/Street Lamp/Outdoor/Manual/
Customized Region
GAIN CONTROL 0~100
WIDE DYNAMIC RANGE 120 dB
NOISE REDUCTION 3D DNR
PRIVACY MASKING Off / On (4 Areas, Rectangle)
MOTION DETECTION Off / On (4 Zones, Rectangle)
REGION OF INTEREST Off / On (4 Zones)
LENS 3.7mm~11mm, Motorized, F1.9
ANGLE OF VIEW H:113°~50°, V:60°~28°
VIDEO
VIDEO COMPRESSION H.264/H.264B/H.264H/H.265/Smart Codec/
MJPEG (Sub Stream)
RESOLUTION
4K(3840×2160)/6M(3072×2048)/
5M(3072*1728)/5M(2592*1944)/
4M(2688*1520)/3M(2048x1536)/
3M(2304×1296)/1080P(1920×1080)/
1.3M(1280x960)/720P(1280×720)
Sub Stream:D1(704×480/576) /VGA(640×480)/
CIF(352×240/288)
FRAME RATE Main Stream: 4K (1~25/30fps)
Sub Stream: D1 (1~25/30fps)
BIT RATE CONTROL CBR/VBR
BIT RATE 4Kbps~15104Kbps

NETWORK
ETHERNET RJ-45 (10/100Base-T)
SUPPORTED WEB BROWSERS Internet Explorer (11.0+)
SUPPORTED OS Windows® 7 32-bit/64-bit;
Windows® 10 32-bit/64-bit
PROTOCOLS*
HTTP; HTTPs; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP; DHCP;
DNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; Bonjour; IEEE 802.1x;
Multicast; ICMP; IGMP; TLS
INTEROPERABILITY ONVIF Profile S/G/Q
MAXIMUM USERS ACCESS 20 Users
SECURITY
User account and password protection HTTPS, IP Filter, Digest
authentication, User access log, TLS1.2 only, AES-128/256,
SSH/Telnet closed, sFTP by default, PCIDSS compliance
EVENT No SD card, SD card error, Capacity warning, Network
disconnection, IP conflict, Illegal access
MICRO SD Up to 128 GB microSDHC card, Class 10 (not included)
ELECTRICAL
POWER SUPPLY DC12V PoE (802.3af) (Class 0)
POWER CONSUMPTION <10.9W
MECHANICAL
DIMENSIONS Ø122mm×88.9mm (4.80’’x3.50’’)
PRODUCT WEIGHT Approx. 0.49Kg (1.09lb)
PACKAGE WEIGHT Approx. 0.66Kg(1.46lb)
CONSTRUCTION Die-cast aluminum housing with powder coat
CONSTRUCTION COLOR RAL 9003 (White)
ENVIRONMENTAL
OPERATING TEMPERATURE –22°F to 140°F (–30°C to 60°C)
RELATIVE HUMIDITY Less than 95%, non-condensing
INGRESS PROTECTION IP66
IMPACT RESISTANCE IK10
REGULATORY
EMISSIONS FCC Part 15B, EN 55032
IMMUNITY EN 50130-4
SAFETY UL 60950-1, EN 62368-1
ROHS EN 50581

H4W8PR2
Network WDR 8MP IR Rugged Mini Dome Camera, 1/2.8" CMOS, 3.7mm~11mm Motorized, 2 IR LEDs, PoE, IP66, H.265/H.264/ Smart Codec

SYSTEM COMPATIBILITY
HEN*4
8/16/32/64-channel Performance Series 4K NVRs (H.264 and H.265)
HEN*3
4/8/16/32-channel Performance Series 4K NVRs (H.264 and H.265)
MOUNTS AND ACCESSORIES
HQA-RS
Rain Shield Bracket
HQA-PK
Pendant Mount Cap
HQA-WK
Wall Mount Bracket

MOUNTS AND ACCESSORIES
HQA-PM2
Pole Mount Adapter
HQA-IC
In-Celing Bracket
HQA-BB4
Junction Box
HQA-CB
Ceiling Mount Bracket for Pendant Mount Cap
HQA-CBE
Ceiling Mount Extend Bracket for HQA-CB

The HQA-BB4 must be used when installing the camera to HQA-PM2, vice versa.
The HQA-PK must be used when installing the camera to HQA-CB.
The HQA-CBE must be used with HQA-CB together.
