EVI-D80/ EVI-D80P(PAL)Standard Definition PTZ camera

Brand:SONY

Model:EVI-D80P/EVI-D80P

Detail

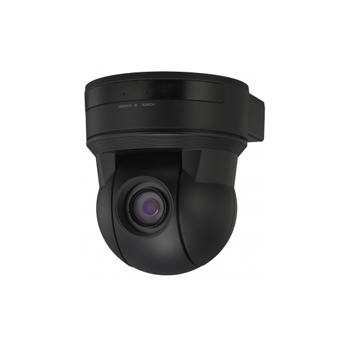

EVI-D80/D80P(PAL)Standard Definition PTZ camera
Accessories
RM-IP10
IP remote control panel for BRC cameras

RM-BR300
Remote control unit for BRC series cameras

Specifications


Specifications
Image sensor
1/4-type CCD
Signal system - SD
NTSC/PAL
Lens - Focal length
f=-4.1 mm (Wide) to 73.8 mm (Tele)
F1.4 to F3.0
Lens - Optical zoom
18x
Lens - Digital zoom
12x
Min. object distance
10 mm (wide) - 800 mm (tele)
*Default: 290 mm
Horizontal viewing angle
48.0 degrees (wide) to 2.8 degrees (tele)
Focus systems
Auto, One-push AF, Manual, Infinity
Min. illumination
0.4 lx (F1.4, 50 IRE)
Shutter speed
1 to 1/10,000 s
Gain
Auto/Manual/Max. AE Gain Limit (-3 dB to +28 dB, 2 dB steps)
White balance
Auto, Indoor, Outdoor, One-push, Manual
Wide-D
No
Exposure control
Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow Shutter AE
Auto ICR
No
S/N ratio
More than 50 dB (3D Noise Reduction)
Pan/Tilt - Angle - Pan
±170°
Pan/Tilt - Angle - Tilt
+90°/-20°
Pan/Tilt - Max. speed - Pan
100°/sec
Pan/Tilt - Max. speed - Tilt
90°/sec
Preset positions
6
Video output - SD
VBS, Y/C
Camera control - Interface
RS-232C/RS-422
Camera control - Protocol
VISCA
Power requirements
DC 12 V
Power consumption
6 W
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
-20°C to +60°C (-4°F to +140°F)
Mass
1,440 g (3 lb 3 oz)
Dimensions (W x H x D)
145 x 164 x 164 mm (5 3/4 x 6 1/2 x 6 1/2 inches)
Body colour
Black, White
Supplied accessories
AC adaptor
AC power cable
IR remote commander unit
Ceiling bracket
Operating instructions
RS-422 connector plug
