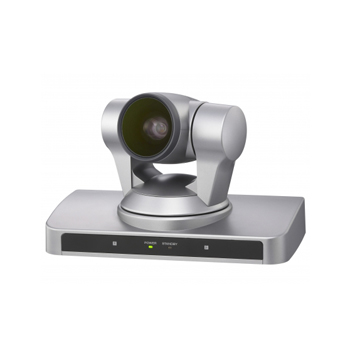

EVI-HD3V PTZ SONY Colour Video Camera

Brand:SONY

Model:EVI-HD3V

Detail

EVI-HD3V PTZ SONY Colour Video Camera

Specifications


Camera
Image Sensor
1/3-type CMOS
Signal System
720p/59.94, 720p/50, 720p/29.97,
720p/25, 640 x 480p/59.94
Minimum Illumination (50IRE)
15lx (F1.8)
S/N Ratio
50 dB
Gain
Auto/Manual (-3 dB to +18 dB)
Shutter Speed
1/60 to 1/10,000 sec (59.94Hz system),
1/50 to 1/10,000 sec (50HZ system)
Exposure Control
Auto, Manual, Priority AE, Exposure compensation, Blight
White Balance
Auto, Indoor, Outdoor, One-push auto, Manual
Optical Zoom
10x
Digital Zoom
4x
Focusing System
Auto/Manual
Horizontal Viewing Angle
70 degrees (wide) to 8 degrees (tele)
Focal Length
F1.8 to F2.1
f=-3.4mm (wide) to 33.9mm (tele)
Minimum Object Distance
100mm (wide)
Pan/Tilt Angle
Pan: ±100°, Tilt: ±25°
Pan/Tilt Speed (Max.)
Pan: 300°/sec, Tilt: 125°/sec
Preset Position
6
Camera Features
Auto ICR
No
Wide-D
No
Image Stabilization
No
Image Flip
No
Auto Power Off
No
Night Power Off
No
Interface
Hd Video Output
DVI-I (Digital and Analog)
Camera Control Interface
RS-232C (8-pin mini DIN)
Sync. System
INT
General
Power Requirements
DC 12V (10.8 to 13.0V DC)
Power Consumption
max 26.4W (at DC 12V)
Operating Temperature
32°F to 104°F
0°C to 40°C
Storage Temperature
-4°F to +140°F
'-20°C to +60°C
Dimensions (W x H x D) *[1]
9 7/8 x 6 x 5 3/8 inches
250 x152 x135mm
Mass
3 lb 5 oz
1.5kg
Body Color
Light gray
Wide Conversion Lens Attachable
No
Mountable Angle
±15°
Ceiling Mount
No
Supplied Accessories
Operating instruction (1)
IR remote commander unit (1)
AC power cable (1)
AC adaptor (1)
Notes
Note
*[1] The values for dimensions are approximate.
