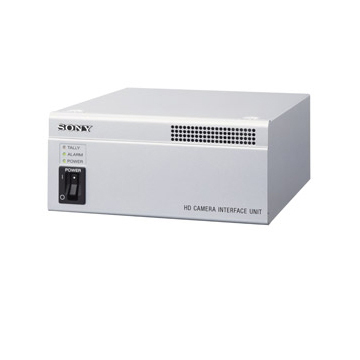

HFU-X310 HD Optical Fibre Interface Unit

Brand:SONY

Model:HFU-X310

Detail

HFU-X310 HD Optical Fibre Interface Unit

Accessories

HFBK-TS1
iLINK (HDV) Output Board

HFBK-XG1
XGA Output Board

HFBK-HD1
Hd-sdi Output Board

Specifications


General
Power requirements
AC 100 to 240 V, 50/60 Hz
Current consumption
Max. 0.6 A
Operating temperature
+5 to +40 °C (+41 to +104 °F)
Storage temperature
-20 to +60 °C (-4 to +140 °F)
Maximum cable length
Optical fiber cable (single mode): 1000 m (3280 feet)
Dimensions (W x H x D)
200 x 88 x 215 mm (7 7/8 x 3 1/2 x 8 1/2 inches) without projection
Mass
Approx. 2 kg (4 lb 6 oz)
Signal inputs/outputs
Remote
8-pin (1)
Genlock
BNC type (2), 3-level/2-level (VBS, VS) Sync block 0.3 Vp-p (when terminated), 75 O, loop-through
HD SDI input (*)
BNC type (1) Conforming to SMPTE 292M
OFC
Single mode, LC connectors (2), send/receive
Multi-connector
6-pin (1)
AC input
3-pin (1)
Supplied Accessories
Operation manual
1
OFC cover
1
M3 x 4 screws
2
M4 x 4 screw
1
Multi-connector plug
1
