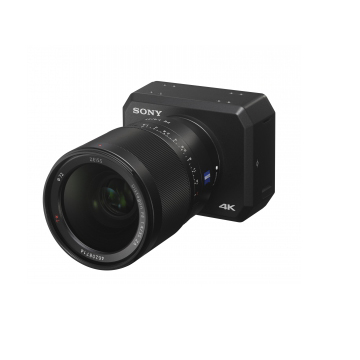

UMC-S3C Ultra High Sensitivity 4K Video Camera

Brand:SONY

Model:UMC-S3C

Detail

UMC-S3C Ultra High Sensitivity 4K Video Camera with 35 mm Full-frame Exmor™ CMOS Sensor

Specifications


General
Camera type
Interchangeable lens digital camera
Lens mount
E-mount
Lens compatibility
Sony E-mount lenses
Image sensor
Type
35mm full frame Exmor CMOS sensor
Number of pixels (effective)
approx.12.2Megapixels
Number of pixels (total)
approx.12.4Megapixels
Image sensor aspect ratio
3:2
Color filter
R, G, B primary color
Anti-Dust function
Yes
Anti-Dust system
Charge protection coating on
Optical Filter and ultrasonic
vibration mechanism
Anti-Dust operation (auto)
Power off
Recording system (still image)
Recording format
JPEG (DCF Ver. 2.0, Exif Ver.2.3, MPF Baseline compliant), RAW (Sony ARW 2.3 format)
Image size (pixels) [3:2]
35mm full frame L: 4240 x 2832 (12M), M: 2768 x 1848
(5.1M), S: 2128 x 1416 (3.0M)
APS-C L: 2768 x 1848 (5.1M), M: 2128 x 1416 (3.0M), S: 1376
x 920 (1.3M)"
Image size (pixels) [16:9]
35mm full frame L: 4240 x 2384 (10M), M: 2768 x 1560
(4.3M), S: 2128 x 1200 (2.6M)
APS-C L: 2768 x 1560 (4.3M), M: 2128 x 1200 (2.6M), S: 1376
x 776 (1.1M)
Image quality modes
RAW
RAW & JPEG
JPEG Extra fine
JPEG Fine
JPEG Standard
14bit RAW
Yes
Picture Profile
Yes (Off / PP1-PP9) Parameters: Black level, Gamma
(Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3),
Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset
Dynamic Range functions
Off, Dynamic Range Optimizer (Auto/Level (1-5)), Auto High Dynamic Range
(Auto Exposure Difference, Exposure Difference Level (1-6 EV, 1.0 EV step))
Color space
sRGB standard (with sYCC gamut)
Delete
Yes
Recording system (movie)
Recording format
XAVC S
Video compression
XAVC S:MPEG-4 AVC/H.264
Image size (pixels) [XAVC S]
XAVC S 4K: 3810 x 2160
XAVC S HD: 1920 x 1080
Picture Profile
Yes (Off / PP1-PP9) Parameters: Black level, Gamma (Movie, Still, Cine1-4, ITU709, ITU709 [800%], S-Log2, S-Log3),
Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset
Color space
xvYCC standard (x.v.Color when connected via HDMI cable) compatible with TRILUMINOS Color
Movie recording system (XAVC S 4K)
3840 x 2160 (29.97P, 100M)
Approx. 100 Mbps
(NTSC mode)
3840 x 2160 (25P, 100M)
Approx. 100 Mbps
(PAL mode)
3840 x 2160 (23.98P, 100M)
Approx. 100 Mbps
(NTSC mode)
3840 x 2160 (29.97P, 60M)
Approx. 60 Mbps
(NTSC mode)
3840 x 2160 (25P, 60M)
Approx. 60 Mbps
(PAL mode)
3840 x 2160 (23.98P, 60M)
Approx. 60 Mbps
(NTSC mode)
Movie recording system (XAVC S HD)
1920 x 1080(119.88P, 100M)
Approx.100Mbps
(NTSC mode)
1920 x 1080(100P, 100M)
Approx.100Mbps
(PAL mode)
1920 x 1080(119.88P, 60M)
Approx.60Mbps
(NTSC mode)
1920 x 1080(100P, 60M)
Approx.60Mbps
(PAL mode)
1920 x 1080(59.94P, 50M)
Approx.50Mbps
(NTSC mode)
1920 x 1080(50P, 50M)
Approx.50Mbps
(PAL mode)
1920 x 1080(29.97P, 50M)
Approx.50Mbps
(NTSC mode)
1920 x 1080(25P, 50M)
Approx.50Mbps
(PAL mode)
1920 x 1080(23.98P, 50M)
Approx.50Mbps
(NTSC mode)
High Frame Rate Recording
1920 x 1080(29.97P, 16M)
Approx.16Mbps
(NTSC mode)
1920 x 1080(25P, 16M)
Approx.16Mbps
(PAL mode)
1920 x 1080(23.98P, 12M)
Approx.12Mbps
(NTSC mode)
Movie function
PAL/NTSC Selector
Yes
TC/UB
Yes
(TC Preset/UB Preset/TC Format/TC Run/TC Make/UB Time Rec)
Auto Slow Shutter
Yes
REC Control
Yes
HDMI Output
3840 x 2160(25P)
1920 x 1080(50P)
1920 x 1080(50i)
1920 x 1080(23.98P)
1920 x 1080(59.94P)
1920 x 1080(59.94i)
3840 x 2160(29.97P)
3840 x 2160(23.98P),
YCbCr 4:2:2 8bit / RGB 8bit
Recording system
Media
SD memory card
SDHC memory card (UHS-I compliant)
SDXC memory card (UHS-I compliant)
microSD memory card
microSDHC memory card
microSDXC memory card
Memory card slot
SD memory card
File system
FAT12, 16, 32, exFAT
Noise reduction
Long exposure NR: On/Off , available at shutter speeds longer than 1 sec.
High ISO NR: Normal/Low/Off
Multi Frame NR
Auto/ISO 100 to 409600
White balance
Modes
Auto / Daylight / Shade / Cloudy / Incandescent / Fluorescent
/Flash /Underwater/ Color Temperature & color filter
AWB micro adjustment
Yes
Focus system
Type
Contrast-detection AF
Focus sensor
"Exmor" CMOS sensor
Focus point
169 points (contrast-detection AF)
Sensitivity range
EV-4 to EV20 (ISO100 equivalent with F2.0 lens attached)
AF mode
AF-S (Single-shot AF), AF-C ( Continuous AF), Manual Focus
Focus area
Wide (169 points(contrast-detection AF))
Other features
Focus lock
Exposure control
Metering type
1200-zone evaluative metering
Metering sensor
"Exmor" CMOS sensor
Metering sensitivity
EV-3 to EV20 (at ISO100 equivalent with F2.0 lens attached)
Modes
Multi-segment
Exposure modes
AUTO(iAuto/Superior Auto)
Programmed AE (P)
Aperture priority (A)
Shutter-speed priority (S)
Manual (M)
Movie / High Frame Rate (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M) )
Exposure compensation
+/- 5.0EV(1/3 EV, 1/2 EV steps selectable)
AE Lock
Locked when shutter button is pressed halfway. Available with AE lock button. (On/Off/Auto)
ISO sensitivity (Recommended Exposure Index)
Still images: ISO 100-102400 (ISO numbers up from ISO 50 to ISO 409600 can be set as expanded ISO range.),
AUTO (ISO 100-12800, selectable lower limit and upper limit) Movies: ISO 100-102400 equivalent (ISO numbers up to ISO 409600 can be set as expanded ISO range.),
AUTO (ISO 100-12800, selectable lower limit and upper limit)
Other features
ISO AUTO Min. SS
Yes
Clock Function, Setting
Yes
Area Setting
Yes
Clear Image Zoom
Still images
Approx. 2x
Movies
Approx. 2x
Digital zoom
Digital zoom (Still images)
35mm full frame: L:approx 4x, M:approx 6.1x, S:approx 8x
APS-C: L:approx 4x, M:approx 5.2x, S:approx 8x
Digital zoom (Movie)
35mm full frame: approx. 4x
APS-C: approx. 4x
Shutter
Type
Electronically-controlled, vertical-traverse, focal-plane type
Shutter speed
Still images:1/8000 to 30 sec, Bulb, Movies: 1/8000 to 1/4(1/3 steps) up to 1/60 in AUTO mode (up to 1/30 in Auto slow shutter mode)
Electronic Front Curtain Shutter
Yes(ON/OFF)
Silent Shooting
Yes(ON/OFF)
Drive
Drive modes
Single Shooting
Continuous shooting
Speed (approx., max.)*1
Continuous mode: max. 2.5 fps
No. of frame recordable* (approx.)*1, *2
Continuous mode:
JPEG Extra fine L: 109 frames
"Continuous mode:
JPEG Fine L: 200 frames
Continuous mode:
JPEG Standard L: 200 frames
Continuous mode:
RAW: 67 frames
Continuous mode:
RAW&JPG: 42 frames
Playback
Delete
Interface
PC interface
PC remote
Multi / Micro USB Terminal*3
Yes
HD output
HDMI (Type-D)
DC IN Terminal
VDC 12V-25%+10% (9V~13.2V)
PC Remote
Yes
Power
Battery for clock
MS621T, Button Type, Manganese-Silicon, Approx.0.23g(without Tabs), 1pcs
Power consumption
With Viewfinder
19W(including lens)
Weight
Body only
Approx. 390 gr
(without lens)
Oz Body only
Approx. 13.8 oz
(without lens)
Dimensions
mm (WxHxD) excluding protrusions
Approx. 104mm x 84mm x 48mm
inch (WxHxD) excluding protrusions
Approx. 4 1/8 x 3 3/8 x 1 15/16 inches
Body material
Body material
Magnesium alloy, High rigidity engineering plastic exterior
Operating Temperature
Operating temperature
0 - 45 degrees C
32 - 113 degrees F
Supplied Accessory
Body cap (1)
Tripod adapter (1)
Tripod adapter fixing screw (4)
Safety Regulations (1)
Operating Instructions - Download site Information (1)
Warranty booklet (1-year) (1)
Safety Regulations
UL60950-1, cUL No.60950-1, IEC60950-1
VCCI (Class A), FCC Part15B (Class A), IC ICES-003 (Class A)
Emission: EN55032 (Class A), EN61326-1 (Class A)
Immunity: EN55024, EN61326-1
Emission: AS/NZS CISPR32(EN55032) (Class A)
MSIP EMC KN32 (Class A), KN35
EAC(EMC-TR) CISPR32 (Class A), CISPR24
Notes
*1
Varies according to shooting conditions or memory card used
*2
Continuous drive (Hi) in Drive mode
*3
Supports Micro USB compatible device.
