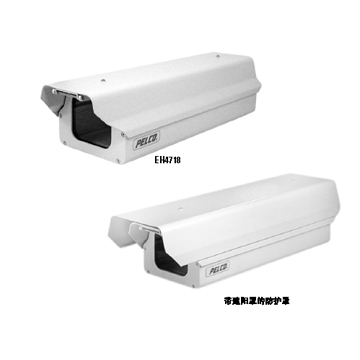

EH5700 Series Enclosure

Product Features
• Designed for Indoor/Outdoor Applications
• For Use with Fixed Mount or Pan/Tilt
• Die-Cast and Extruded Aluminum Construction
• Gas-Spring-Assisted, Forward-Opening Lid
• Cable Entry Glands and Mounting Holes Located on Bottom of
Enclosure
• Special Options Include 120 VAC Outlet and Preset Lens Wiring
Harness

MODELS
EH4718 •
EH4718-1 • • • 68 W
EH4718-2 • • • 58 W
EH4718-3 • • • 63 W
EH4722 •
EH4722-1 • • • 68 W
EH4722-2 • • • 58 W
EH4722-3 • • • 63 W

GENERAL
Maximum Camera Accepts camera and lens combinations*
and Lens Size (including BNC connector) up to:
EH4718 17.00" L x 5.50" W x 4.25" H
(43.18 x 13.97 x 10.795 cm)
EH4718-1/-2/-3 13.00" L x 4.75" W x 4.25" H
(33.02 x 12.07 x 10.795 cm)
EH4722 21.00" L x 5.50" W x 4.25" H
(53.34 x 13.97 x 10.795 cm)
EH4722-1/-2/-3 17.00" L x 4.75" W x 4.25" H
(43.18 x 12.07 x 10.795 cm)
Viewing Window 0.25-inch (6.35 mm) thick Lexan
Viewing Window Area 3.50" H x 4.00" W (8.89 x 10.16 cm)
Construction Die-cast, extruded, and sheet aluminum
Finish Gray polyester powder coat
Environment Indoor/outdoor;
–10° to 120°F (–23° to 49°C)
Weight Unit Shipping
EH4718 7.25 lb (3.28 kg) 9 lb (4.07 kg)
EH4718-1/-2/-3 8.50 lb (3.85 kg) 10 lb (4.53 kg)
EH4722 8.50 lb (3.85 kg) 10 lb (4.53 kg)
EH4722-1/-2/-3 9.75 lb (4.42 kg) 12 lb (5.44 kg)

OPTIONAL ACCESSORIES
Blower Kit
BK47-1
120 VAC, 8 W
BK47-2
24 VAC, 8 W
BK47-3
230 VAC, 8 W
Heater Kit
HK47-1
120 VAC, 60 W
HK47-2
24 VAC, 50 W
HK47-3
230 VAC, 55 W
Defroster
WD47-1
Window defroster, 120 VAC, 15 W
WD47-2
Window defroster, 24 VAC, 15 W
WD47-3
Window defroster, 230 VAC, 15 W
Sun Shroud
SS4718 Sun shroud for EH4718 Series
enclosures
SS4722 Sun shroud for EH4722 Series
enclosures
Other
O/I-PCB Accessory interface board;
thermostatically controls heater,
blower, and defroster operation (one
per enclosure required)
O/I-LPP
Preset position lens wiring harness
O/I-OUTLET
120 VAC electrical convenience outlet
TI47 Thermal insulation
RECOMMENDED MOUNTS
Pedestal
EM1009U, Medium duty pedestal mount;
EM1015U maximum load 40 lb (18.14 kg)
MM22 Medium duty pedestal mount;
maximum load 40 lb (18.14 kg)
PM2000/ Pedestal mounts; maximum load
PM2010
125 lb (56.63 kg)
Wall
EM1900U Medium duty wall mount; maximum
load 40 lb (18.14 kg)
EM22 Medium duty wall mount; maximum
load 40 lb (18.14 kg)
WM2000
Universal wall mount; maximum load
75 lb (33.97 kg)
Pipe/Pole
EM1109 Medium duty pedestal mount for pipe/
pole; maximum load 40 lb (18.14 kg)
EM2000, Medium duty mount for pipe/pole
EM2200 applications; maximum load
40 lb (18.14 kg)
Adapter
AH1000 Manually adjustable pan/tilt head
RECOMMENDED PAN/TILT
PT570 Series Medium duty pan/tilt, 120 or 24 VAC; maximum load
40 lb (18.14 kg)
