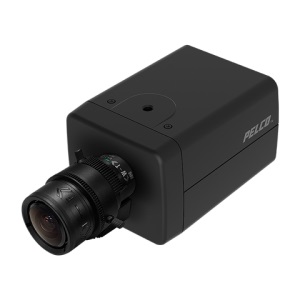

IXP33 3MP Pelco Sarix Professional Series Box Camera

Product Features
• H.265, H.264 Main, High, MJPEG video encoding
• Up to 5 megapixel (MP) resolution at 30 frames per second
• Up to 60 images per second (ips) at 4 MP for 5MP cameras
• Micro SDHC & SDXC 2TB addressable, 128 GB testable
• Pelco Pro Analytics Suite including Adaptive Motion, Object
Counting, Motion Detection, Camera Sabotage
• Operating temperature from –10° to 55°C (14° to 131°F)
• 24 VAC, 12 VDC, IEEE802.3af Power over Ethernet (PoE)
• Pelco Smart Compression Technology
• Choice of standard CS megapixel lenses
• Compatible with Pelco and third-party video management systems

CAMERA
Imaging Device 1/2.8-inch
Imager Type CMOS
Imager Readout Progressive scan
Highest Resolution
5 MP 2592 x 1944
3 MP 2048 x 1536
2 MP 1920 x 1080
1 MP 1280 x 960
3D Noise Reduction Yes (ON/OFF selectable)
Signal-to-Noise Ratio >50 dB
Auto Back Focus Yes
Electronic Shutter Range 1/10,000 sec ~ 1 sec
True Wide Dynamic Range Up to 120 dB, per IEC62676
White Balance Range: 2,000° to 10,000°K; Selectable ATW
(Auto Tracing White Balance), Auto, &
Manual
Day/Night Capabilities Mechanical IR Cut Filter (ON/OFF/AUTO),
with different set points on lux
MODELS

1 MP IXP13 Sarix Professional Series Box Camera
2 MP IXP23 Sarix Professional Series Box Camera
3 MP IXP33 Sarix Professional Series Box Camera
5 MP IXP53 Sarix Professional Series Box Camera
CERTIFICATIONS/RATINGS
• CE - EN55032 (Class A), EN 50130-4, EN 60950-1
• FCC (Class A) - 47 CFR Part 15
• ICES-003 (Class A)
• UL/cUL Listed - UL 60950-1, CAN/CSA C22.2 No. 60950-1-07
• KCC
• RCM
• NOM
• EAC
• BIS
• ONVIF Profile S, Profile G, and Profile T Conformant
RECOMMENDED MOUNT
C11-UM Gang box mount
CM1751 Pedestal mount
TB1751 T-rail mount
RECOMMENDED ENCLOSURES
EH14 Series* PoE and 24 VAC indoor/environmental
enclosures
EH20 Series* Indoor and environmental enclosures
EHS8000 Series* Indoor and environmental enclosures
*Not all box/lens types supported.
RECOMMENDED LENSES
M2.8-8.5P 1-5 MP CS lens, varifocal, 2.8 ~ 8.5 mm, f/1.2
M9-40P 1-5 MP CS lens, varifocal, 9 ~ 40 mm, f/1.5
M1.8-3 1-5 MP CS lens, varifocal, 1.8 ~ 3 mm, f/1.8
YV3.3X15SR4A 1-3 MP CS lens, varifocal, 15 ~ 50 mm, f/1.5
YV2.8X2.8SR4A 1-3 MP CS lens, varifocal 2.8 ~ 8 mm, f/1.3
YV2.7X2.2SR4A 1-3 MP CS lens, varifocal 2.2 ~ 6 mm, f/1.3
MI2.8-8.5P iCS lens 2.8 ~ 8.5 mm
MI3.9-10P iCS lens 3.9 ~ 10 mm
MI9-50P MPx iCS lens 9 ~ 50 mm
