AXIS M1014 0520-009 Network camera

Brand:AXIS

Model:AXIS M1014 0520-009

Detail

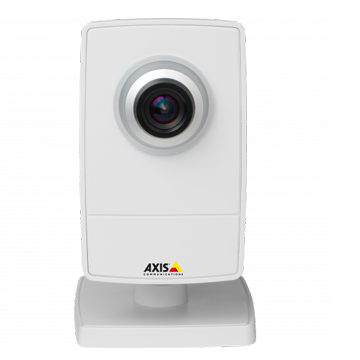

AXIS M1014 0520-009 Small-sized indoor network camera. Fixed lens and adjustable focus. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 720p or 1 MP resolution at 30 fps. Video motion detection. Connects over wired Ethernet. MicroSD/SDHC memory card slot for edge storage. Includes stand and clamp for easy mounting and power supply.

DISCONTINUED PRODUCT.Recommended replacements:AXIS M1045-LW

Technical specifications
Models: AXIS M1014 / AXIS M1014 Surveillance Kit
Camera
Image sensor CMOS
Image sensor size 1/4
Sensor size in megapixel 1.0
Lightfinder -
Wide dynamic range –
Min illumination/ light sensitivity (Color) 1.20 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution -
Max frames per second 30
Electronic image stabilization –
Lens
Focal length 2.8 mm
Horizontal field of view 80 °
Vertical field of view 51 °
Lens mount –
Replaceable lens –
Compression
Zipstream –
H.264 Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Network
PoE Class -
Wireless –
Security
Signed firmware –
Secure boot –
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature 0 to 40 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability –
Power
Power (max) 6.5 W
Power (average) –
DC input voltage –
