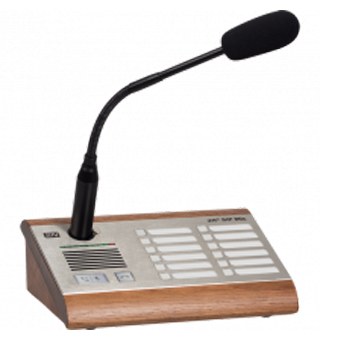

2N SIP MIC 01208-001 2N SIP Mic allows paging to several zones with a simple push of a button. It is ideal for live or pre-recorded announcements. It has a built-in audio-management server for configuration, which means less equipment as well as flexible, easy and cost-efficient installation. The network microphone console has 12 buttons that can be configured with actions of your choice. 2N SIP Mic’s 12 buttons give you a smart paging solution for up to 12 zones, and if your system grows you can easily connect the microphone console to a PBX system thanks to support for SIP. The microphone is based on open standards and connects to standard networks using PoE. 7,131

Easy configuration
The zone, priorities and pre-recorded messages are simply
configured via the web interface.
Axis Vapix® support for paging
Broadcast directly from 2N® SIP Mic to compatible Axis
Speakers and cameras.
Easy installation with a single cable
The 2N® SIP Mic is very easy to install simply by
connecting it to an existing IP network with a PoE cable.
Listen-in function
At simple press of a button one can listen to what
is happening in certain zone.
Announcements pre-recording
Record your own messages via the software application
or using the microphone console itself.
Support for IP PBX (SIP)
The 2N® SIP Mic device may function independently
Eor be simply connected to IP PBX.
Audio stream
SIP2.0, RTP multicast, VAPIX®
Audio codecs G.711u, G.722
Speakers 2 built-in, stereo, power output 2x1 W
Interfaces
Logical inputs 2, galvanically separated, sensitive
to contact or voltage from 5 to 48 V
Relay output 1, galvanically isolated, NO and NC
contact, max load 48 V, 1 A
Headphone output 3.5 mm jack, stereo, power output
2x30 mW, min. load impedance of
16 Ohm, DR. 101 dB, THD+N -85 dB
Primary microphone
input
symmetric, XLR, integrated
phantom power supply 24 V, DR
88 dB, THD+N -82 dB
Headset microphone
input
3.5 mm jack, integrated power
supply for electret microphones,
DR 84 dB, THD+N -78 dB
Line input 3.5 mm jack, mono or stereo
non-symmetric stereo, DR 93 dB,
THD+N -82 dB
Power supply
12 to 32 V, power draw max. 1 A
PoE to 802.3af standard
Dimensions
209 x 65 x 143 mm
Operating temperature
temperature range 0-40°C
Buttons and labels
Double button 28mm x 14mm
Large button 14mm x 14mm
Small button 9mm x 9mm
