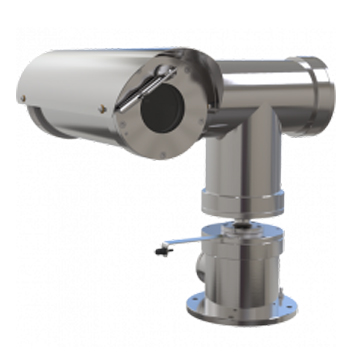

AXIS XP40-Q1765 0836-101 Explosion-Protected PTZ Network Camera

XP40-Q1765 CNEX 0836-101 Explosion-protected 316L stainless steel PTZ network camera certified for hazardous areas according to CNEX. Certification part code 1410-25/2420-01. Oxalis housing, Axis 1080p HDTV camera with 18x optical zoom, auto focus and day/night mode. Continuous 360° pan, ±90° tilt and 64 preset positions. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1080p resolution at 25/30 fps. WDR- dynamic contrast. Video motion detection and active tampering alarm. IP66 and IP67 rated and operating temperature in -40°C to +70°C (-40°F to +158°F). Powered by 24 V AC(Power supply not included). Includes a removable sunshield.
XP40-Q1765 -60C CNEX 0836-111 Explosion-protected 316L stainless steel PTZ network camera certified for hazardous areas according to CNEX. Certification part code 1410-25/2420-01. Oxalis housing, Axis 1080p HDTV camera with 18x optical zoom, auto focus and day/night mode.Continuous 360° pan, ±90° tilt and 64 preset positions. Multiple, individually configurable H.264 and Motion JPEG streams; max HDTV 1080p resolution at 25/30 fps. It supports Onvif, AXIS  Video motion detection and active tampering alarm. IP66 and IP67-rated and operating temperature in -60°C to +40°C ( -76ºF to +104ºF). Powered by 24 V AC (Power supply not included). Includes a removable sunshield and AXIS Surveillance microSDXC™ Card 64 GB.

Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: XP40-Q1765 ATEX IECEx -60C

XP40-Q1765 ATEX IECEx /

XP40-Q1765 INMETRO /

P40-Q1765 INMETRO -60C /

XP40-Q1765 CSA /

XP40-Q1765 CSA -60C /

XP40-Q1765 EAC /

XP40-Q1765 EAC -60C /

XP40-Q1765 CCOE /

XP40-Q1765 CCOE -60C /

XP40-Q1765 CNEX /

XP40-Q1765 CNEX -60C /

XP40-Q1765 IA /

XP40-Q1765 IA -60C /

XP40-Q1765 CLCUS -60C /

XP40-Q1765 CLCUS /

XP40-Q1765 UL -50C /

XP40-Q1765 UL -50C 110V /

XP40-Q1765 KCC /

XP40-Q1765 KCC -60C
Camera
Image sensor CMOS
Image sensor size 1/2.9
Sensor size in megapixel 2.0
Lightfinder -
Wide dynamic range Dynamic Contrast
Min illumination/ light sensitivity (Color) 0.50 lux
Min illumination/ light sensitivity (B/W) 0.04 lux
Video
Max video resolution 1920x1080
Max frames per second 25/30
Electronic image stabilization –
Lens
Focal length 4.7 - 84.6 mm
Optical zoom 18
Horizontal field of view 59 - 4 °
Vertical field of view 35-2 °
Compression
Zipstream –
H.264 Baseline, Main
H.265 –
Motion JPEG
Yes
Network
PoE Class –
Security
Signed firmware –
Secure boot –
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot)
Yes
Outdoor Ready
Yes
IP rating IP66, IP67
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage 20-28 V
