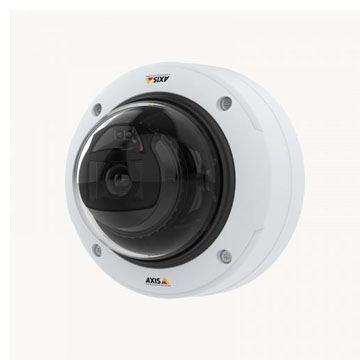

AXIS P3245-LVE Network Camera

Streamlined outdoor-ready HDTV 1080p fixed dome for any light conditions

HDTV 1080p video quality
Lightfinder 2.0, Forensic WDR and OptimizedIR
Two-way audio and I/O connectivity
Signed firmware and secure boot
Two lens alternatives
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS P3245-LVE 9 mm / AXIS P3245-LVE 22 mm
Camera
Image sensor CMOS
Image sensor size 1/2.8
Sensor size in megapixel 2.0
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.10 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 1920x1080
Max frames per second 50/60
Day and Night functionality  Yes
Electronic image stabilization –
Lens
Focal length * 3.4 - 8.9 / 9 - 22 mm
Horizontal field of view * 100-36 / 35-15 °
Vertical field of view * 53-20 / 19-9 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream Yes
H.264 Baseline, High, Main H.265  Yes
Motion JPEG  Yes
Audio
Audio Support  Yes
Built-in microphone –
Network PoE Class 3
Wireless –
Security

Signed firmware  Yes
Secure boot  Yes
General
Remote focus  Yes
Remote zoom  Yes
Built-in IR  Yes
Local storage (memory card slot)  Yes
Operating temperature -40 to 50 °C
Outdoor Ready  Yes
Vandal rating IK10
IP rating IP66
Designed for repaint  Yes
Sustainability PVC free  –
