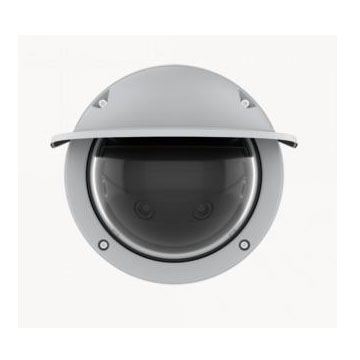

AXIS Q3819-PVE 01819-001 Panoramic Camera

Brand:AXIS

Model:AXIS Q3819-PVE

Lens

Focal length 5.89 mm
Horizontal field of view 180 °
Vertical field of view 38 °
Detail

AXIS Q3819-PVE Panoramic Camera
Panoramic camera for seamless, 180° coverage
14 MP multisensor with seamless stitching
180° horizontal, 38° vertical coverage
AXIS Object Analytics
AXIS Edge Vault and TPM module
Built-in motors for remote pan/tilt/roll

Technical specifications

Models: AXIS Q3819-PVE

Camera

Image sensor CMOS
Image sensor size 1/2.5
Sensor size in megapixel 14.2
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.16 lux
Min illumination/ light sensitivity (B/W) 0.06 lux

Video

Max video resolution 8192x1728
Max frames per second 30
Day and Night functionality Yes
Electronic image stabilization

Lens

Focal length 5.89 mm
Horizontal field of view 180 °
Vertical field of view 38 °

Pan, Tilt, Zoom

Remote PTRZ

Compression

Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes

Audio

Audio Support Yes
Built-in microphone

Network

PoE Class 4
Wireless

Security

Signed firmware Yes
Secure boot Yes

General

Remote focus
Remote zoom
Built-in IR
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66/67
Designed for repaint Yes
Sustainability PVC free
