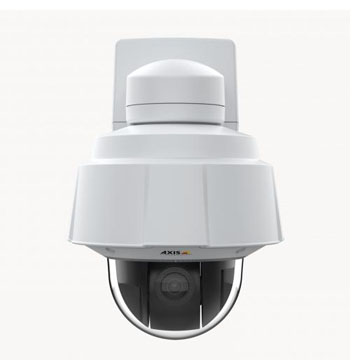

AXIS Q6078-E PTZ Camera
 Outdoor-ready PTZ with UHD 4K
 UHD 4K with 20x optical zoom
 Outstanding images with great details
 Zipstream with support for H.264/H.265
 AXIS Object Analytics
 Built-in cybersecurity features
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q6078-E 60 Hz JP 02148-005
AXIS Q6078-E 60 Hz US 02148-004
AXIS Q6078-E 60 Hz BR 02148-012
AXIS Q6078-E 50 Hz AU 02147-006
AXIS Q6078-E 50 Hz AR 02147-008
AXIS Q6078-E 50 Hz CN 02147-009
AXIS Q6078-E 50 Hz EU, UK 02147-002
Technical specifications
Models: AXIS Q6078-E 60 Hz / AXIS Q6078-E 50 Hz
Camera
Image sensor CMOS
Image sensor size 1/2.5
Sensor size in megapixel 8.0
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.2 lux
Min illumination/ light sensitivity (B/W) 0.06 lux

General

Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -50 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint Yes
Analytics
Autotracking version Autotracking 2
Orientation aid orientation aid PTZ

Video
Max video resolution 3840x2160
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Focal length 4.4 - 88.4 mm
Horizontal field of view 68.3 - 4.20 °
Vertical field of view 39.1-1.18 °
Pan, Tilt, Zoom
Pan range 360 endless
Tilt range 220
Guard tour preset position tour
Optical zoom 20
Digital zoom 12
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Audio Support –
Built-in microphone –
System Integration
Audio detection –
Active tampering –
Alarm inputs/outputs –
Network
PoE Class High PoE
Security
Signed firmware Yes
Secure boot Yes
TPM Yes
