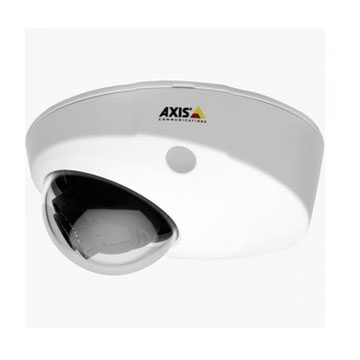

 AXIS P3904-R Mk II onboard Camera
Onboard HDTV 720p surveillance with Zipstream
Compact, rugged design
Complies with EN50155
WDR and Lightfinder
Zipstream
Traffic Light mode
Technical specifications
Models: AXIS P3904-R Mk II M12 / AXIS P3904-R Mk II
Camera
Image sensor CMOS
Image sensor size 1/2.9
Sensor size in megapixel 1.0
Lightfinder Lightfinder
Wide dynamic range Forensic Capture
Min illumination/ light sensitivity (Color) 0.06 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 1280x720
Max frames per second 25/30
Day and Night functionality –
Electronic image stabilization –
Lens  Focal length 3.6 mm
Horizontal field of view 87 °
Vertical field of view 47 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream  Yes
H.264 Baseline, High, Main H.265 –
Motion JPEG  Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 2
Wireless –
Security
Signed firmware –
Secure boot –
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot)  Yes
Operating temperature -40 to 60 °C
Outdoor Ready –
Vandal rating IK08
IP rating IP66, IP67
Designed for repaint –
Sustainability PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P3904-R Mk II M12 AR, AU, BR, CN, EU, IN, JP, KR, UK, US 01071-001
AXIS P3904-R Mk II M12, 50 pcs AR, AU, BR, CN, EU, JP, KR, UK, US 01071-031
AXIS P3904-R Mk II M12, 10 pcs AR, AU, BR, CN, EU, JP, KR, UK, US 01071-021
AXIS P3904-R Mk II AR, AU, BR, CN, EU, IN, JP, KR, UK, US 01078-001
AXIS P3904-R Mk II, 10 pcs AR, AU, BR, CN, EU, JP, KR, UK, US 01078-021
AXIS P3904-R Mk II, 50 pcs AR, AU, BR, CN, EU, JP, KR, UK, US 01078-031
