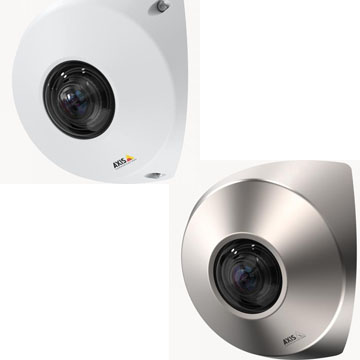

AXIS P9106-V Network Camera
Full coverage from any corner
Out-of-box optimized field of view in 3 MP resolution – no blind spots
Elegant and compact design in brushed steel and white finishes
Vandal-resistant (IK10) and IP66-rated dust protection
PoE over 2-wire for elevator installations
Support for Portcast devices with AXIS T61 Series
Technical specifications
Models: AXIS P9106-V Brushed Steel / AXIS P9106-V White
Camera
Image sensor CMOS
Image sensor size 1/3
Sensor size in megapixel 3.0
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.35 lux
Min illumination/ light sensitivity (B/W) –
Video
Max video resolution 2016x1512
Max frames per second 25/30
Day and Night functionality –
Electronic image stabilization –
Lens
Focal length 1.8 mm
Horizontal field of view 130 °
Vertical field of view 95 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 Baseline, High, Main
H.265 –
Motion JPEG
Yes
Audio
Audio Support –
Built-in microphone –
Network
PoE Class 1
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot)
Yes
Operating temperature -15 to 50 °C
Outdoor Ready –
Vandal rating IK10
IP rating IP66
Designed for repaint
Yes
Sustainability PVC free
Edge storage
AXIS Edge storage suveillance card 128 GB from the front
AXIS Surveillance Card 128 GB
High endurance microSDXC™ card

AXIS edge surveillance card 256 GB from the front
AXIS Surveillance Card 256 GB
High endurance micro SDXC™ card

AXIS Surveillance Card 64 GB
High endurance microSDXC™ card

Housings & cabinets
AXIS P91 Brushed Steel Cover A

I/O devices
AXIS T6101 Audio and I/O Interface
Seamlessly add audio and/or I/O ports to your Axis cameras

Media converters
AXIS T8640 PoE+ over Coax Adapter Kit
Cost-efficient migration to network video for smaller installations

AXIS T8646 PoE+ Over Coax Blade Kit
Cost-efficient migration to network video for larger installations

AXIS T8648 PoE+ over Coax Blade Compact Kit
Compact, cost-efficient multi-channel migration to IP

Portcast devices
AXIS T6101 Audio and I/O Interface
Seamlessly add audio and/or I/O ports to your Axis cameras

Switches
AXIS T8508 PoE+ Network Switch
8 port switch for efficient network management

AXIS T8516 PoE+ Network Switch
16 port switch for efficient network management

Tools & extras
AXIS T8415 Wireless Installation Tool
Simplicity in your hand

Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS P9106-V White AR, AU, BR, CN, EU, JP, KR, UK, US 01620-001
AXIS P9106-V White IN 01620-113
AXIS P9106-V Brushed Steel AR, AU, BR, CN, EU, JP, KR, UK, US 01553-001
AXIS P9106-V Brushed Steel IN 01553-113
