AXIS Q9216-SLV 01767-001 Network Camera

Brand:AXIS

Model:AXIS Q9216-SLV  01767-001

Lens Focal length 2.4 mm
Horizontal field of view 125 °
Vertical field of view 95 °

Detail

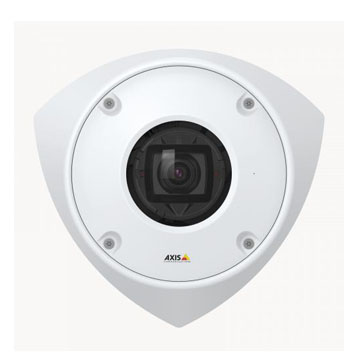

AXIS Q9216-SLV Network Camera
Impact-resistant anti-ligature camera
Anti-ligature, robust (IK10+)
Corner camera– no blind spots
WDR and invisible IR (940 nm)
Compact design – easy to install
Zipstream supporting H.264 and H.265
Technical specifications
DOWNLOAD DATASHEET ON PRODUCT SUPPORT PAGE
Models: AXIS Q9216-SLV Steel / AXIS Q9216-SLV White
Camera
Image sensor CMOS
Image sensor size 1/2.5
Sensor size in megapixel 4.0
Lightfinder -
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.23 lux
Min illumination/ light sensitivity (B/W) 0.05 lux
Video
Max video resolution 2304x1728
Max frames per second 25/30
Day and Night functionality
Yes
Electronic image stabilization –
Lens
Focal length 2.4 mm
Horizontal field of view 125 °
Vertical field of view 95 °
Pan, Tilt, Zoom
Remote PTRZ –
Compression
Zipstream
Yes
H.264 High, Main
H.265
Yes
Motion JPEG
Yes
Audio
Audio Support
Yes
Built-in microphone
Yes
Network
PoE Class 3
Wireless –
Security
Signed firmware
Yes
Secure boot –
General
Remote focus –
Remote zoom –
Built-in IR
Yes
Local storage (memory card slot)
Yes
Operating temperature -20 to 50 °C
Outdoor Ready –
Vandal rating IK10+
IP rating IP66, IP6K9K
Designed for repaint
Yes
Sustainability BFR/CFR free, PVC free
AXIS Long Range PoE Extender Kit
AXIS TQ9601 Conduit Top Box
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q9216-SLV White AR, AU, BR, CN, EU, JP, KR, UK, US 01767-001
AXIS Q9216-SLV White IN 01767-113
AXIS Q9216-SLV Steel AR, AU, BR, CN, EU, JP, KR, UK, US 01766-001
AXIS Q9216-SLV Steel IN 01766-113
