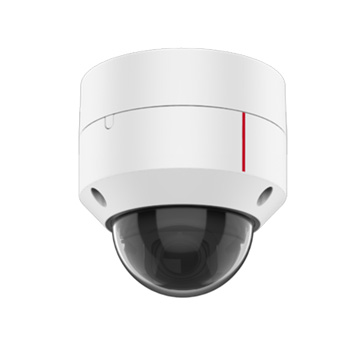

M3241-10-EI-Fb 1T 4MP IR AI Optical Port Fixed Dome Camera

Brand:Huawei

Model:M3241-10-EI-Fb

LensFocal length 2.8-12mm
Angle of view Horizontal:42°(T) to 95.5°(W);Vertical:24°(T) to 52°(W)
IR range 30m

Detail
M3241-10-EI-Fb 1T 4MP IR AI Optical Port Fixed Dome Camera
1 TOPS computing power
Supports omni-data structuring, multi-algorithm switchover, behavior analysis, crowd flow analysis, target detection, person detection, object (motor vehicle, non-motorized vehicle, and pedestrian) classification, vehicle recognition, vehicle event detection, and traffic flow statistics
Supports backlight adaptation, overcast adaptation, and speed adaptation
1/1.8" CMOS sensor
Online loading and upgrade of algorithms
120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
Supports switchover among multiple algorithms
Supports omni-data structuring
CPU Hi3516DV300
Computing power 1 TOPS
Memory DDR3 1.0 GB
Flash type SPI NAND FLASH 512.0 MB
Max resolution 4MP 2560(H)*1440(V)
Sensor size 1/1.8" CMOS
Min illumination Color: 0.002 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0005 lux (F1.2, AGC ON, 1/30s shutter speed)
Focal length 2.8-12mm
Angle of view Horizontal:42°(T) to 95.5°(W);Vertical:24°(T) to 52°(W)
IR range 30m
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Vehicle License plate image enhancement
Traffic flow statistics Motor vehicle/Non-motorized vehicle/Pedestrian
Behavior analysis Fast movement/Tripwire crossing/Intrusion/Area entry or exit/Loitering
Crowd flow analysis Queue length/Head counting/Crowd flow statistics
Target Target detection/Target enhancement/Target attribute recognition/Target recognition
Person Person detection/Personal attribute recognition
Non-motorized vehicle Object classification/Cyclist attributes
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Optical port One SFP slot
Power type AC24,DC12V,PoE(IEEE 802.3af)
Power consumption Maximum:13.05W,typical:3.36W
Operating temperature -30℃ to 50℃
Operating humidity 5% to 95%(non-condensing)
IP rating IP54 (for indoor use)
IK rating IK10 (except the optical port module)
Max resolution 4MP 2560(H)*1440(V)
Sensor size 1/1.8" CMOS
Min illumination Color: 0.002 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0005 lux (F1.2, AGC ON, 1/30s shutter speed)
Shutter speed Supports slow shutter Slow shutter levels: 1/3, 1/4, 1/8, 1/12, 1/15 Non-slow shutter levels: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000, 1/30000, 1/100000, custom Full intelligence + target checkpoint: 1/25, 1/50, 1/60, 1/90, 1/100, 1/120, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000, 1/30000, 1/100000, custom Full intelligence + micro checkpoint: 1/100, 1/120, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000, 1/30000, 1/100000, custom Full intelligence: Slow shutter is not supported. Target checkpoint: 1/100; Micro checkpoint: 1/100 Target checkpoint: 1/100 Micro checkpoint: 1/250 Behavior analysis: 1/25
Day/Night mode Supported; automatic (ICR)/Color/B/W (default: automatic) Sensitivity level: high (default), medium, and low Image triggering/Internal triggering
Gain control Manual exposure: 101 levels configurable from 0 to 100 (step: 1; default: 0)
White balance Auto/Manual/OnePush
Digital noise reduction 2D/3D noise reduction
WDR 120dB
Highlight compensation Supported
Image stabilization Supported Sensitivity levels are not supported.
Defogging Supported
Exposure compensation Supported
Exposure mode Supported
SNR >45dB
Motorized focus Supported
Day/Night focus compensation Supported
Backlight adaptation Supported
Overcast adaptation Supported
Speed adaptation Supported
Corridor mode Supported
Image correction Vertical, horizontal, or both
Digital zoom Supported
Privacy mask Supported
Focal length 2.8-12mm
Max f-number F1.9(W)-F2.8(T)
Lens aperture type Fixed iris
Angle of view Horizontal:42°(T) to 95.5°(W);Vertical:24°(T) to 52°(W)
Built-in IR illuminator Supported
IR range 30m
Video encoding format MJPEG/H.264/H.265
Video encoding channels Triple streams
Primary stream resolution 2560×1440(4MP),2304×1296(3MP),1920×1080(1080P),1280×720(720P)
Secondary stream resolution Secondary stream 1:720×576(PAL),720×480(NTSC),352×288(PAL),352×240(NTSC); Secondary stream 2:352×288(PAL),352×240(NTSC)
Video frame rate Configurable (25 fps or 30 fps)
Video bit rate Only for H.264 and H.265 1080P to 4K 512kbit/s to 16Mbit/s 720P 384kbit/s to 8Mbit/s D1 256K to 4Mbit/s CIF 32K to 1Mbit/s
Intelligent encoding Extra265/264
Region of Interest (ROI) Each channel supports a maximum of four ROIs. The image quality in an ROI is configurable from 0 to 10 (step: 1).
Audio encoding format G.711a/G.711u/G.726/OPUS
Audio sampling rate G.711a/G.711u/G.726:8K
OPUS:8K/12K/16K/24K/48K
Audio bit rate G.711a/G.711u: 64 kbit/s
G.726: configurable (16/24/32/40 kbit/s)
OPUS: configurable (16/24/32/40/64/96/128/160/192/224/256/288 kbit/s)
Vehicle License plate image enhancement
Traffic flow statistics Motor vehicle/Non-motorized vehicle/Pedestrian
Behavior analysis Fast movement/Tripwire crossing/Intrusion/Area entry or exit/Loitering
Crowd flow analysis Queue length/Head counting/Crowd flow statistics
Target Target detection/Target enhancement/Target attribute recognition/Target recognition
Person Person detection/Personal attribute recognition
Non-motorized vehicle Object classification/Cyclist attributes
Multi-algorithm switchover Supported
SD card port MicroSD card slot that supports microSDHC/microSDXC; maximum memory card capacity: 256 GB
Audio-in port Supported (one-channel LINE IN and one-channel built-in MIC)
Audio-out port Supported (one-channel LINE OUT)
RS-485 port Supported,One half-duplex RS-485 port
Boolean port Supported,2 input port and 1 output port
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Optical port One SFP slot
OEC port Supported
Access protocol GB/T 28181 (2011, 2016)/SDK (proprietary protocol)/REST API (proprietary protocol)/GA/T 1400
Protocols supported by IPv4 TCP, UDP, IPv4, DHCP, DNS, ICMP, IGMP, HTTPS, FTP, SFTP, RTP, RTSP, RTCP, SIP, ARP, SSL, NTP, SNMP (V1/V2/V3), 802.1x, QoS, SMTP, and PPPoE. Note: The northbound protocol needs to adapt to the PPPoE dialup scenario.
Protocols supported by IPv6 HTTPS,RTP,RTCP,RTSP,Onvif,IPv6,ICMPv6,DHCPv6
Services supported by IPv6 Web page: supports live video (static IPv6 address), video recording (static IPv6 address), IPv6 address (including static IP addresses and router advertisements) configuration, and DHCPv6 configuration; ONVIF: supports live video (static IPv6 address), video recording (static IPv6 address), IPv6 address (including static IP addresses and router advertisements) configuration, and DHCPv6 configuration; does not support Wi-Fi probe. Note: 1. IPv6 multicast is not supported. 2. DNS is not supported. 3. IP address conflict check is not supported.
User rights Three user roles: administrator, advanced operator, and common operator
Security mode User name and password authentication, 802.1X authentication, and HTTPS digital certificate
Video digital watermark Supported
Image digital watermark Supported
GB 35114 Supported
Secure boot Supported
System intrusion detection Supported
Power type AC24,DC12V,PoE(IEEE 802.3af)
Power consumption Maximum:13.05W,typical:3.36W
Operating temperature -30℃ to 50℃
Operating humidity 5% to 95%(non-condensing)
Surge protection 4kV
IP rating IP54 (for indoor use)
IK rating IK10 (except the optical port module)
Net weight 1.1kg
Gross weight 1.37kg
Device dimensions 128mm×128mm×133mm
Package dimensions 188mm×188mm×178mm
