F101-A XF P1377 01927-001 Explosion-Protected Camera

Brand:AXIS

Model:F101-A XF P1377

Lens Focal length 3.9 - 10 mm
Optical zoom 2.6
Horizontal field of view 75-31 °
Vertical field of view 55-23 °

Detail

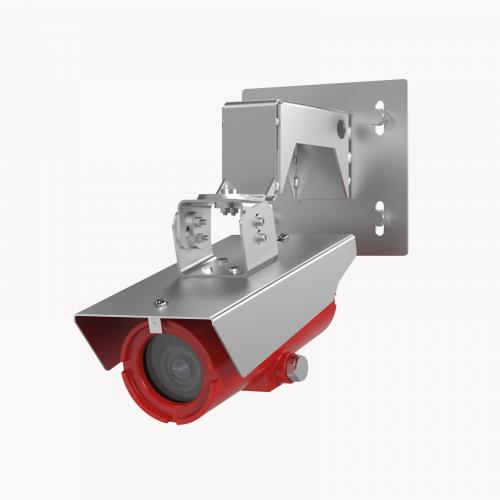

F101-A XF P1377 Explosion-Protected Camera
Excellent image quality for hazardous areas
30 fps in 5 MP or up to 180 fps in HDTV 720p
Lightfinder and Forensic WDR
Zipstream supporting H.264 and H.265
Built-in cybersecurity features
NEC, CEC, ATEX, IECEx and INMETRO

F101-A XF P1377 is designed to deliver sharp images of people and objects even in challenging light conditions. Enclosed in an aluminum housing, it’s internationally certified (NEC, CEC, ATEX, IECEx and INMETRO) for use in potentially combustible environments and can withstand temperatures as low as -40 °C and as high as 55 °C (-40 °F to 131°F). Featuring the new generation chip, it offers improved imaging, enhanced security features, extended capabilities for analytics and significantly more efficient video compression.

gas refinery in night time

Excellent image quality in any light

With 25/30 fps in 5 MP and up to 180 fps in HDTV 720p, F101-A XF P1377 captures excellent, detailed images of fast-moving people and objects. It offers Axis Forensic WDR for high-quality images even when there’s both dark and light areas in the scene and Axis Lightfinder for sharp, color images in poor lighting conditions. Additionally, it features electronic image stabilization for stable images in situations where the camera is subject to vibrations. And, Zipstream with support for H.264/H.265 provides exceptional savings on bandwidth and storage requirements without compromising image quality.

oil refinery pipes in yellow light

For demanding conditions

With a robust, explosion-protected housing, F101-A XF P1377 is certified for use in potentially combustible environments, according to international standards NEC, CEC, ATEX, IECEx and INMETRO. It can withstand temperatures as low as -40 °C and as high as 55 °C (-40 °F to 131°F).

F101-A XF P1377 also makes installation and configuration fast, easy, and cost-effective. The camera’s lightweight aluminum housing means it’s relatively easy to lift. It’s powered by Power over Ethernet (PoE) with just one ethernet cable for both power and network access. And intelligent i-CS lens technology facilitates fast and easy configuration with remote zoom.

analytics numbers on a dark background

Packed with valuable functionality

This high-performance camera is packed with advanced cybersecurity features to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. Based on open standards, F101-A XF P1377 supports a wide range of 3rd party analytics so it’s easy to add analytics and other applications to meet specific security and business requirements.

Technical specifications
Models: F101-A XF P1377
Camera
Image sensor CMOS
Image sensor size 1/2.7
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.15 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Max video resolution 2592x1944
Max frames per second 180
Electronic image stabilization Yes
Lens
Focal length 3.9 - 10 mm
Optical zoom 2.6
Horizontal field of view 75-31 °
Vertical field of view 55-23 °
Compression
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Network
PoE Class 3
Security
Signed firmware Yes
Secure boot Yes
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot)Yes
Outdoor Ready Yes
IP rating IP66
Power
Power (max) 25.0 W
Power (average) –
DC input voltage 12-24 V
AC input voltage 12-24 V

Housings & cabinets
Front Glass Protective Film F101-A
Mounts
Corner Mount D201-S XPT
For explosion-protected PTZ network cameras
Pole Mount D201-S XPT
For explosion-protected PTZ network cameras
Wall Mount F101 XF
For explosion-protected F101 fixed cameras

F101-A XF P1377 ATEX, Class/Division, Class/Zone, FM, IECEx, INMETRO 01927-001
