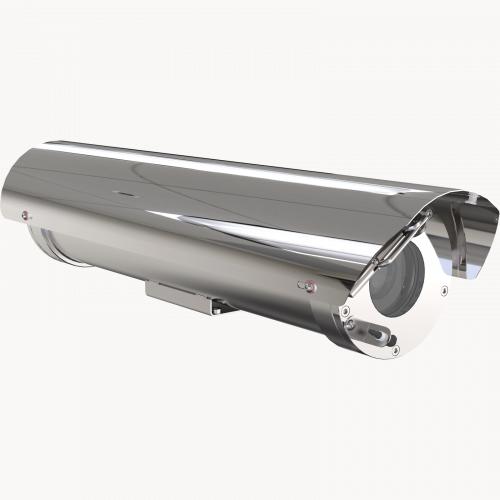

XF60-Q1765 Explosion-Protected Network Camera is an AXIS Q1765-LE Camera (without the IR LEDs) mounted inside an explosion-protected stainless steel housing. In addition, it includes AXIS Surveillance Card 64 GB, a wiper and support for a washer.  The camera provides superb image quality and color fidelity, and offers full HDTV 1080p resolution at 25/30 fps. With 18x optical zoom and autofocus, the camera is ideally suited for remote monitoring situations common in hazardous areas.

The camera features an electropolished 316L stainless steel housing certified for hazardous areas according to UL (the certification applies in the USA market).

XF60-Q1765 is ideally suited for video surveillance monitoring in hazardous areas in critical infrastructure such as onshore, offshore and marine environments in the oil and gas industry. In addition, typical application areas are also dusty environments in other industries, for example, paper and textile industries, and grain handling.

XF60-Q1765 provides a high level of flexible integration possibilities with other equipment, such as access control, illumination and audio. It offers remote accessibility, using any existing IP-based networks. XF60-Q1765 for hazardous areas is a complement to Axis’ wide range of network cameras that can be used in safe areas.

Technical specifications
Models: XF60-Q1765 UL -50C 110 V
Camera
Image sensor CMOS
Image sensor size 1/2.9
Lightfinder -
Wide dynamic range Dynamic Contrast
Min illumination/ light sensitivity (Color) 0.5 lux
Min illumination/ light sensitivity (B/W) 0.04 lux
Video
Max video resolution 1920x1080
Max frames per second 25/30
Electronic image stabilization –
Lens
Focal length 4.7 - 84.6 mm
Optical zoom 18
Horizontal field of view 59 - 4 °
Vertical field of view 35-2 °
Compression
Zipstream –
H.264 Baseline, Main
H.265 –
Motion JPEG Yes
Network
PoE Class –
Security
Signed firmware –
Secure boot –
TPM –
General
Remote focus –
Remote zoom –
Local storage (memory card slot) Yes
Outdoor Ready Yes
IP rating IP66, IP67
Power
Power (max) –
Power (average) –
DC input voltage –
AC input voltage 110-110 V

Mounts
Ex Pole Bracket XF40
Ex Pole Mount XF40
Ex Wall Mount XF60
