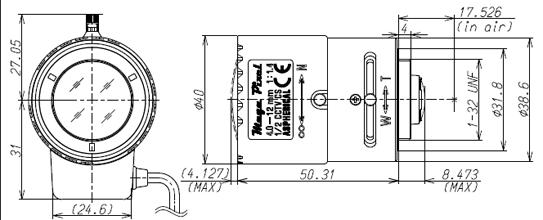

M12VG412 Tamron DC Auto Iris C 1/2 CCTV Lens

SPECIFICATIONS

Imager Size 1/2
Mount Type C
Focal Length 4.0  -  12mm
Aperture Range 1.4  -  360
Angle of View
(Horizontal x Vertical) 1/2 Imager Size
6.8mm x 5.1mm Wide 100.5°  x  73.4°
Tele 33.4°  x  25.1°
Imager Size
6.4mm x 4.8mm Wide 93.9°  x  68.8°
Tele 31.4°  x  23.6°
1/3 Wide 68.8°  x  51.0°
Tele 23.6°  x  17.7°
Focusing Range 0.3m  -  ∞
Operation Focus Manual with Lock
Zoom Manual with Lock
Iris Auto Iris(DC)
Filter Size -
Back Focus(in air) Wide 9.05   -   18.90mm
Operating Voltage Open 3.0V
Close 0.5V
Weight 69g±6g
Operating Temperature -20°C  -  +60°C
