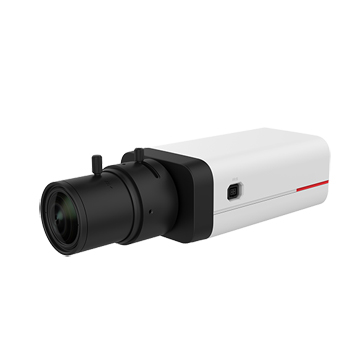

C1220-10 Huawei 1T 2MP AI Box Camera

Brand:huawei holosens

model:C1220-10

lens

Detail

C1220-10 Huawei 1T 2MP AI Box Camera

1 TOPS computing power

Supports heat map, behavior analysis, crowd flow analysis, and face and body detection

1/2.7" CMOS sensor

120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast

CPU Hi3516D V300
Computing power 1 TOPS
Memory DDR3 0.2500 GB
Flash type SPI NAND Flash 256.0 MB
Max resolution 2-megapixel: 1920 (H) x 1080 (V)
Sensor size 1/2.7"
Min illumination Color: 0.002 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0002 lux (F1.2, AGC ON, 1/30s shutter speed)
Video encoding format MJPEG/H.264/H.265
Audio encoding format G.711a/G.711u/G.726/OPUS
Heat map Supported
Behavior analysis Fast movement,Tripwire crossing,Intrusion,Area entry or exit,Loitering
Crowd flow analysis Queue length,Head counting,Crowd flow statistics
Face Face detection
Person Person detection
RS-485 port Supported
Boolean port Supported
Ethernet port Supported
Ethernet port quantity 1
Ethernet port bandwidth One RJ45 10M/100M adaptive Ethernet port
Power type 24 V AC, 12 V DC, and PoE (802.3af)
Power consumption Maximum: 3.9 W; typical: 3.2 W
Operating temperature –30°C to +60°C
Operating humidity 5% to 95% (non-condensing)

Max resolution 2-megapixel: 1920 (H) x 1080 (V)
Sensor size 1/2.7"
Min illumination Color: 0.002 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0002 lux (F1.2, AGC ON, 1/30s shutter speed)
Shutter speed 1/68250s to 1/3s (levels: 1/3, 1/4, 1/8, 1/12, 1/15) Non-slow shutter speed levels: 1/25, 1/30, 1/50, 1/60, 1/90, 1/100, 1/120, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000, 1/30000, 1/100000; default: 1/25
Day/Night mode Auto (ICR), color, or B/W
Gain control Manual exposure: 101 levels configurable from 0 to 100 (step: 1; default: 0)
White balance Auto/Auto tracking/Manual/OnePush
Digital noise reduction 2D/3D noise reduction
WDR 120 dB
Highlight compensation Supported
Defogging Supported
Exposure compensation Supported
Exposure mode Supported
SNR > 45 dB
Acousto-optic assisted focus Supported
Image correction Vertical, horizontal, or both
Privacy mask

Supported
